3. Installation
Installation of an RFID reader adjacent to metallic surfaces
might alter the reader’s specifications. To diminish this
interference, use a plastic spacer when mounting the reader.
The AY-T6350 pack includes everything needed to install and operate
the smart card sector readers. Mount the reader on the required
surface and connect it to the access control system.
3.1 Mounting
1. Peel off the back of the self-adhesive mounting label template
and place it at the required mounting location.
2. Using the template as a guide, drill two holes (sizes indicated on
the template) used for mounting the back plate onto the surface.
3. Insert a suitable wall plug into each screw hole.
4. Drill a 10-mm (7/16”) hole for the cable. If mounting on metal,
place a grommet or electrical tape around the edge of the hole.
5. At the bottom of the unit’s case, remove the screw.
6. Remove the reader's snap-off front cover to reveal the two screw
holes (Figure 1).

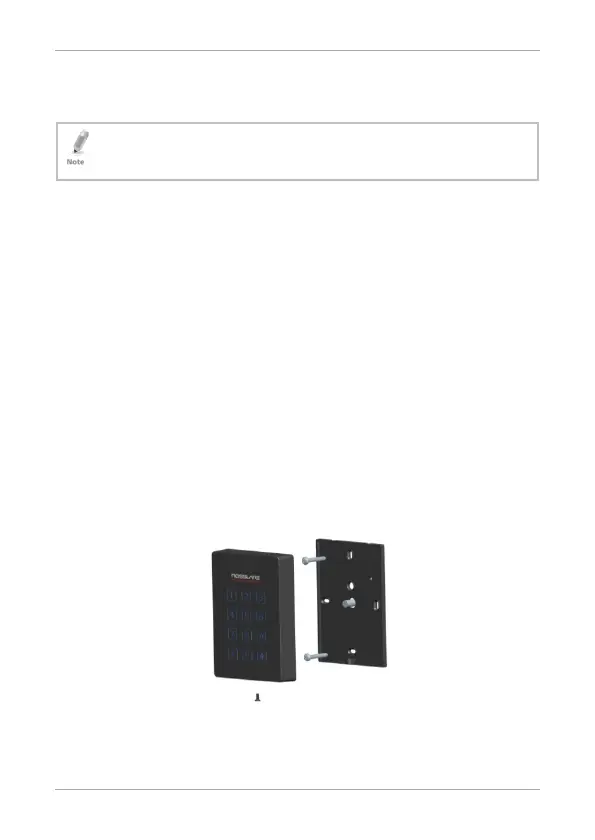

Figure 1: Removing the Top Cover
