Rosslare MIFARE AY-T6350 User Manual

Keypad Programming Instructions
AY-T6350 Installation and Programming Manual 17

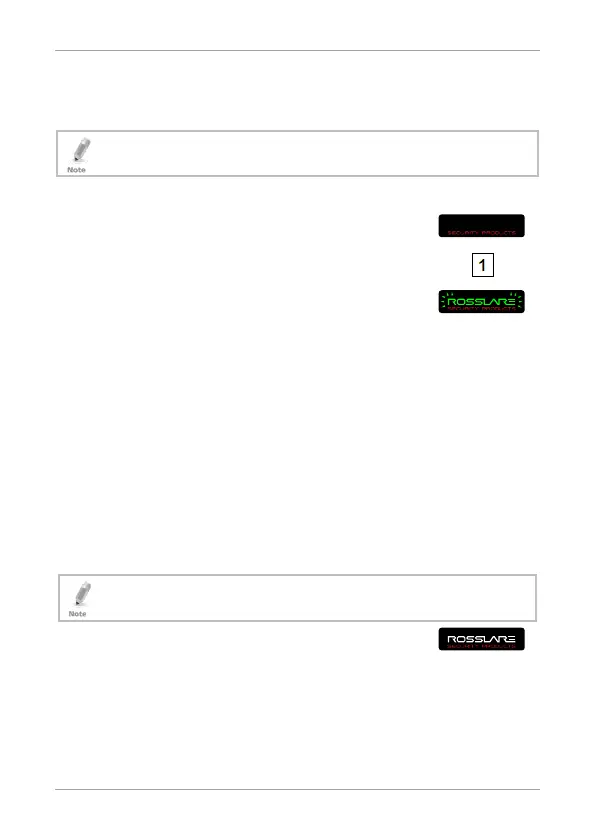

5.4 Selecting Keypad Transmission Format
There are eight keypad transmission formats.
Only one keypad transmission format can be active at any one
time.
To select the keypad transmission format:
1. Enter Programming mode.
2. Press 1 to enter Menu 1.
The LED flashes green.
3. Enter one of the following codes:
 1 – Single Key, Wiegand 6-Bit (Rosslare Format) (default)
 2 – Single Key, Wiegand 6-Bit with Nibble + Parity Bits
 3 – Single Key, Wiegand 8-Bit, Nibbles Complemented
 4 – 4 Keys Binary + Facility Code, Wiegand 26-Bit
 5 – 1 to 5 Keys + Facility Code, Wiegand 26-Bit
 6 – 6 Keys BCD and Parity Bits, Wiegand 26-Bit
 7 – Single Key, 3x4 Matrix Keypad
 8 – 1 to 8 Keys BCD, Clock & Data Single Key
 9 – Single Key, Wiegand 4-Bit
When selecting Option 8, the Program LED turns green,
awaiting an additional key input to select the number of keys.
You hear three beeps.
The system returns to Standby mode.
If an incorrect option number is entered,
a long beep is heard and
the reader returns to Standby mode. The keypad transmission
format remains unchanged.
