7. Installation of the wiring harness on the mounting plate

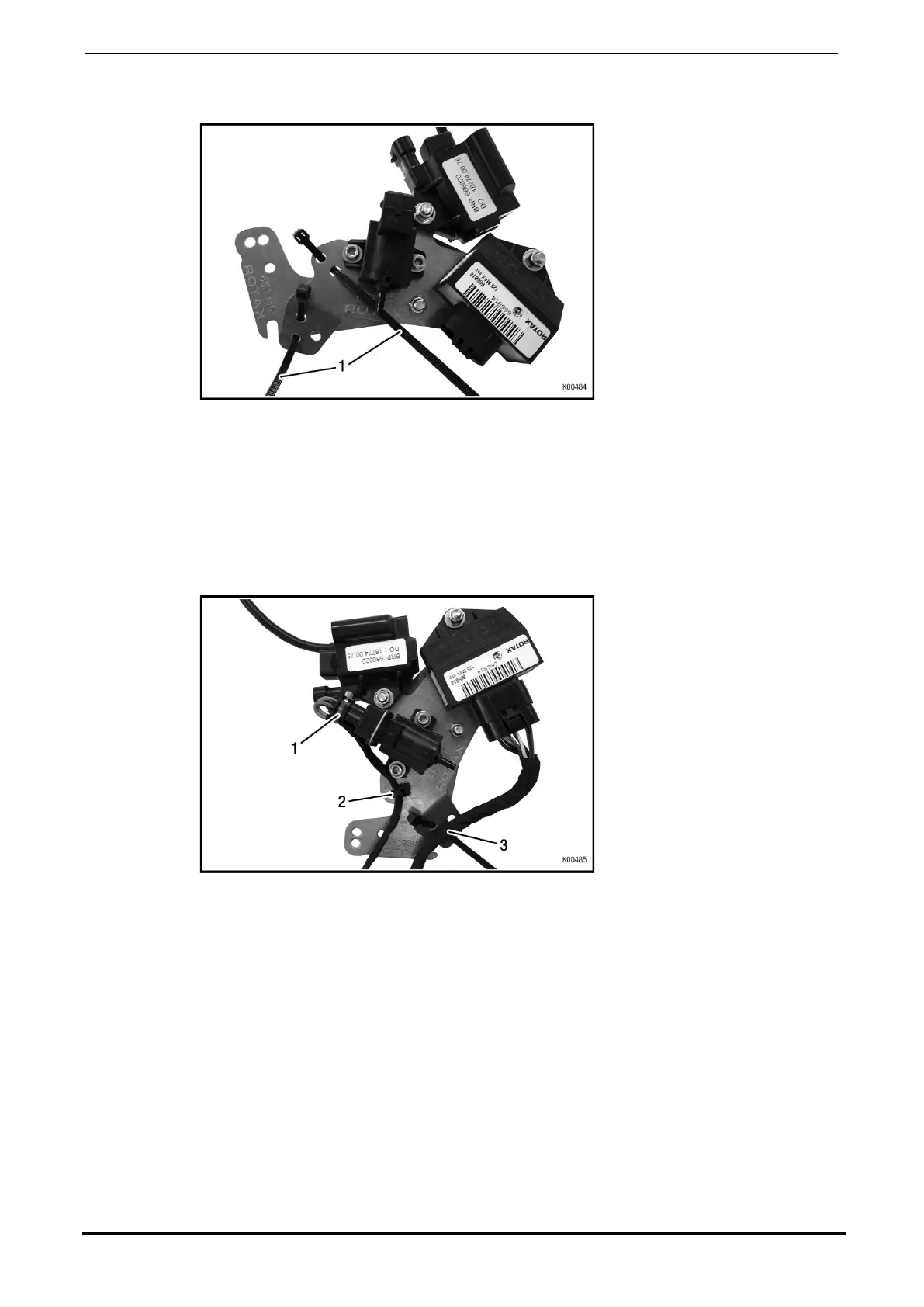

 Install 2 tie wraps (pos. 1) in correct position. See Fig. 19.
Fig. 19
 Connect electric plug to the solenoid valve. See Fig. 20.
 Note: Tie wrap (pos. 1) is already fixed on the plug of each wiring harness part no. 666831
(pos. 3). If the wire is twisted, it must be carefully rotated into the correct position.
See Fig. 20.
 Fix tie wrap (pos. 2). The cable of the solenoid valve must be fixed with that tie wrap
only.
 Connect electric plug to the ECU.
Fig. 20
 Bring wiring harness (pos. 3) in position.
Page 13/53 Edition 07/2016
