ROTAX 125 MAX evo, Junior MAX evo, Mini MAX evo, Micro MAX evo

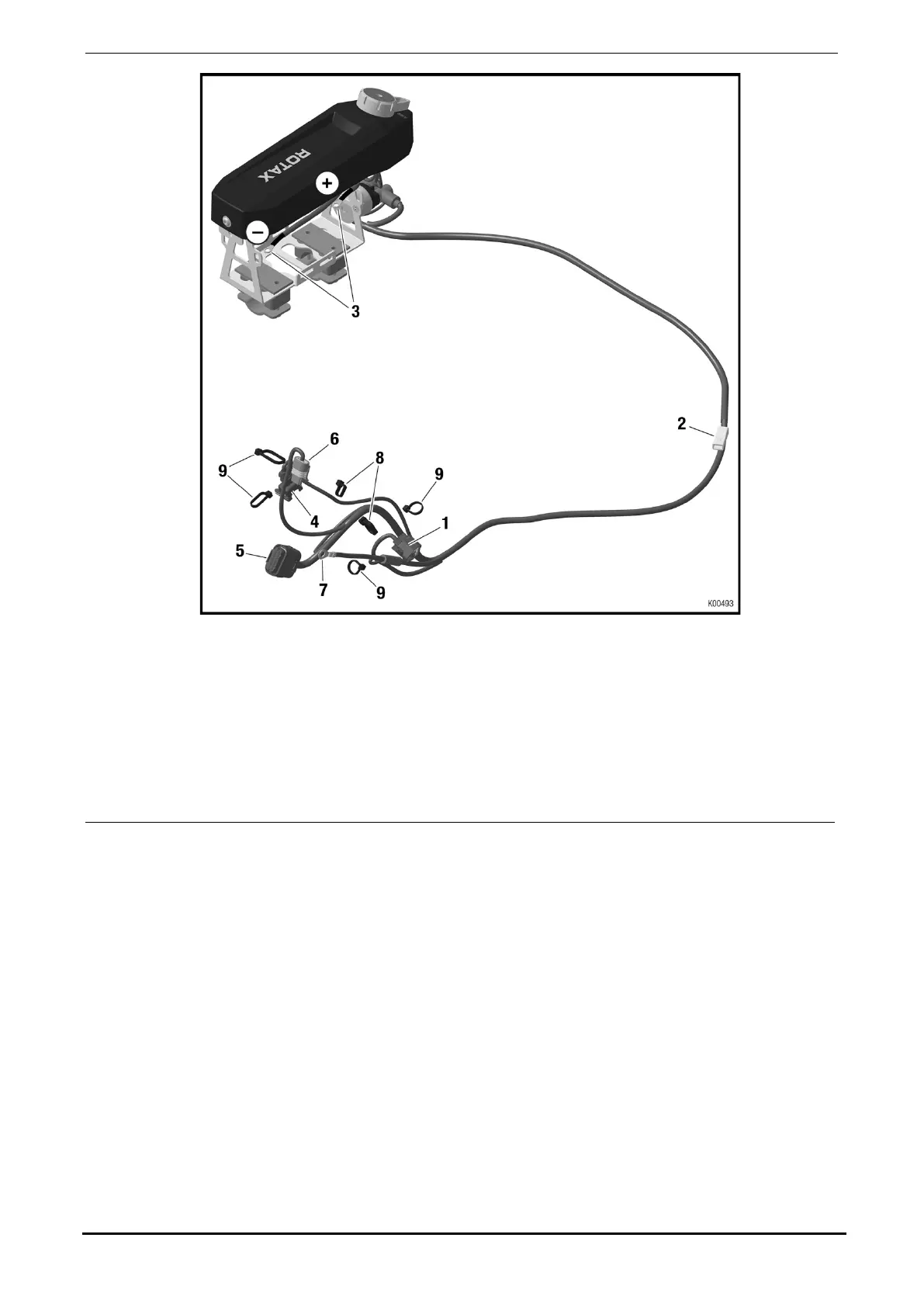

Fig. 30
1. Connector pickup sensor
2. Connector starter
3. Connector battery
4. Connector RAVE (only applicable 125 MAX evo)
5. Connector ECU
6. Connector ignition coil
7. Connector ground
8. Tie wrap 250x4.8
9. Tie wrap 142x3.2
8.2. Fitting of the spark plug
See Fig. 31.
The engine will be supplied with a spark plug of the type DENSO IW 27.
 Remove the transport plug from the spark plug tapping.
 Verify electrode gap of spark plug. Adjust as required.
 Note: The electrode gap of the spark plug should be 0.4 mm (0.016 in) to 0.6 mm (0.024
in) (for DENSO spark plugs). Only slight bending of the ground electrode is
permitted.
 Fit supplied spark plug (pos. 1) and tighten 25 Nm (221 lbf in) to 27 Nm (239 lbf in).
 Install the spark plug connector (pos. 2), ensure correct engagement.
Page 19/53 Edition 07/2016
