Rotax 125 MAX evo User Manual

ROTAX 125 MAX evo, Junior MAX evo, Mini MAX evo, Micro MAX evo

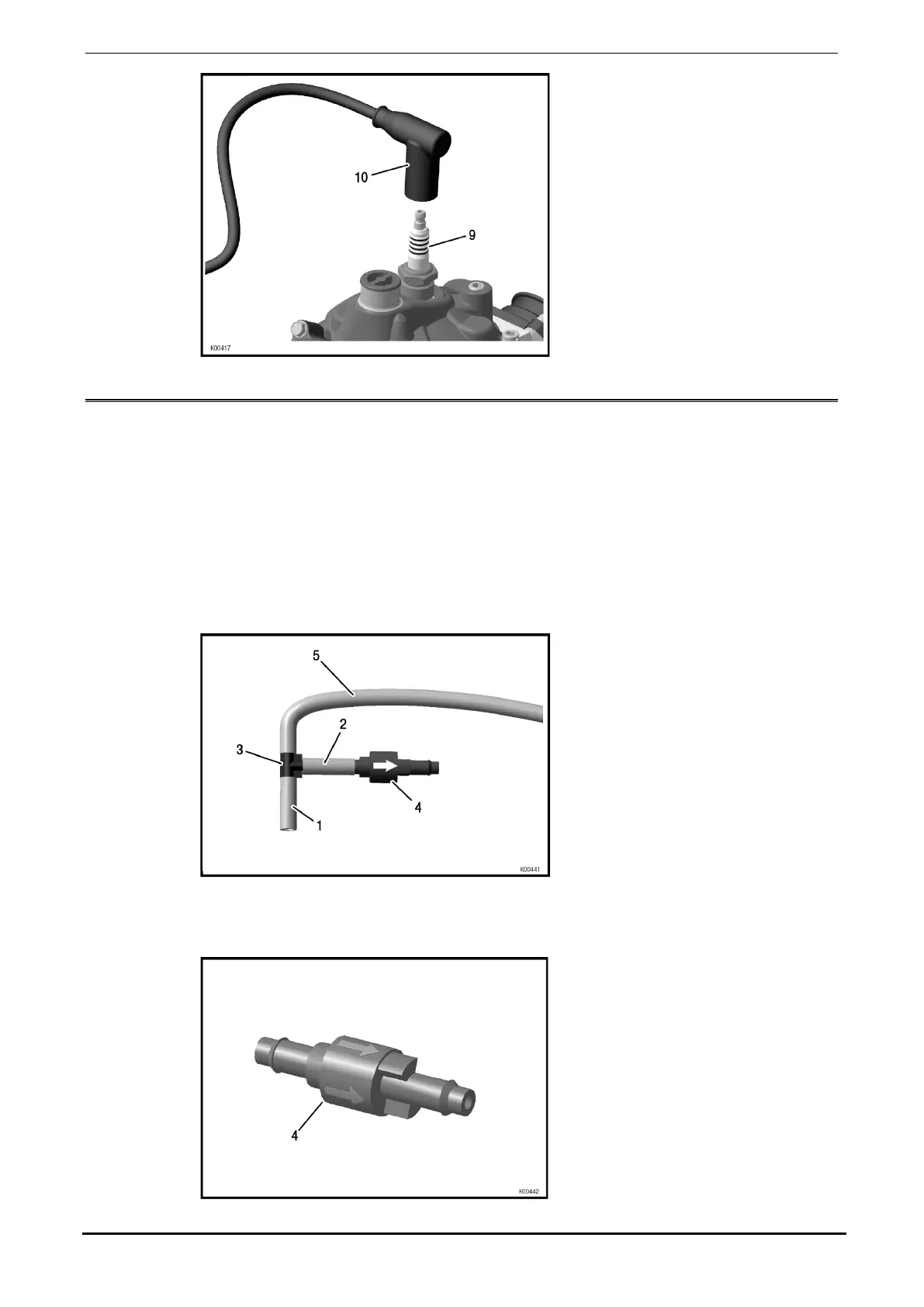

Fig. 31
9. Installation and connection of the RAVE control unit
See Fig. 32.
 Cut off two pieces of the supplied fuel hose (pos. 1 and 2), each 25 mm long.
 Cut off a 400 mm (pos. 5) piece of the fuel line.
 Install T-Fitting (pos. 3).
TIP: The use of a heat gun makes the assembly easier.
Fig. 32
 Install check valve (pos. 4) as shown in Fig. 4. Pay attention to the mounting
direction, see Fig. 33.
Fig. 33
Page 20/53 Edition 07/2016
