Rotex A1 BG - Product Description; Boiler Design and Components

3 x Product description
FA ROTEX A1 BGe - 02/2014
7
3 Product description
3.1 Boiler design and components
A1 BG 25(F)-e A1 BG 40(F)-e A1 BG Schematic
1 Sound insulation hood
2 Boiler control panel
3 Boiler cladding
4 Burner
5 Control system
6 Boiler main body with heat and sound
insulation
7 Type plate with serial number
8 Heating circulation pump
9 Heating return flow (cold)
10 Heating flow (hot)
11 Pressure sensor
12 Flue gas/supply air connection
13 Condensate box
14 Condensate drain
15 Air supply hose
16 Flame tube
17 Combustion chamber insert
18 Flue gas temperature sensor
19 Circuit board (electrical connections)
20 Document pouch
21 Flow temperature sensor
22 Return flow temperature sensor
23 Settings type plate
Safety devices

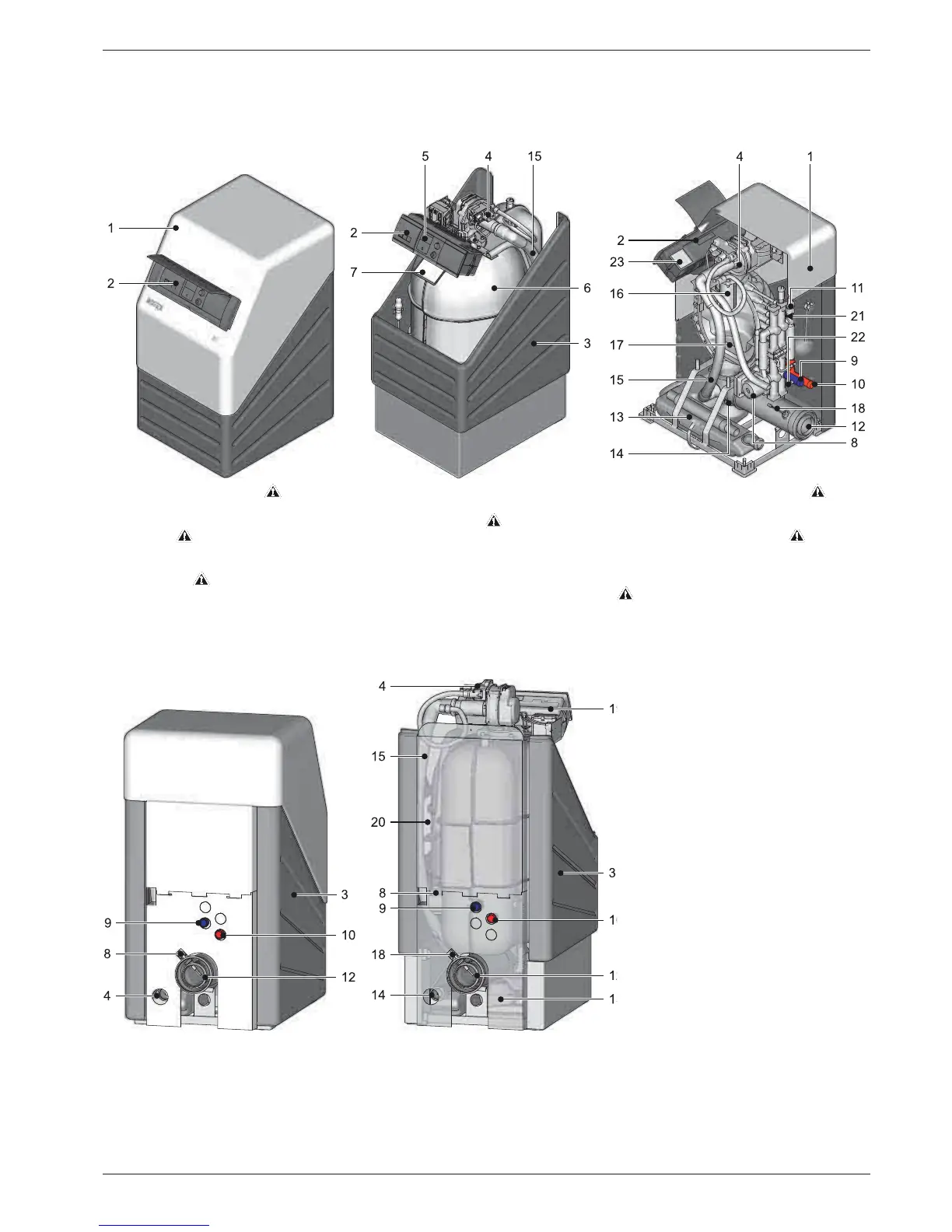

Fig. 3-1 Constituent parts of the A1 BG - view from the front + schematic
A1 BG 25(F)-e A1 BG 40(F)-e
Fig. 3-2 Constituents of the A1 BG - view from the rear for legend see fig. 3-1
