3 x Installation
14
FA ROTEX Solaris - 08/2007
6. Push the two pumps together and secure using a retainer.
7. Mount the preassembled pump unit on the storage tank coupling bracket together with the supplied seal and screw onto the
solar return flow coupling of the storage tank. Mounting is simplified if the retainer is snapped into place in the holding
bracket.
8. Tighten the storage tank coupling nut. Use the sickle spanner (included in scope of supply) to do this.
9. Screw the retainer to the holding bracket (necessary to withstand forces).
10. Mount the support bracket for the control unit.
11. Mount the push-in elbow fitting (Ø22/Ø18).
12. Prepare the feed pipe using the sensor cable (VA 15 Solar) and return flow pipe (VA 18 Solar). Cut the Twin heat insulation
open in the middle.

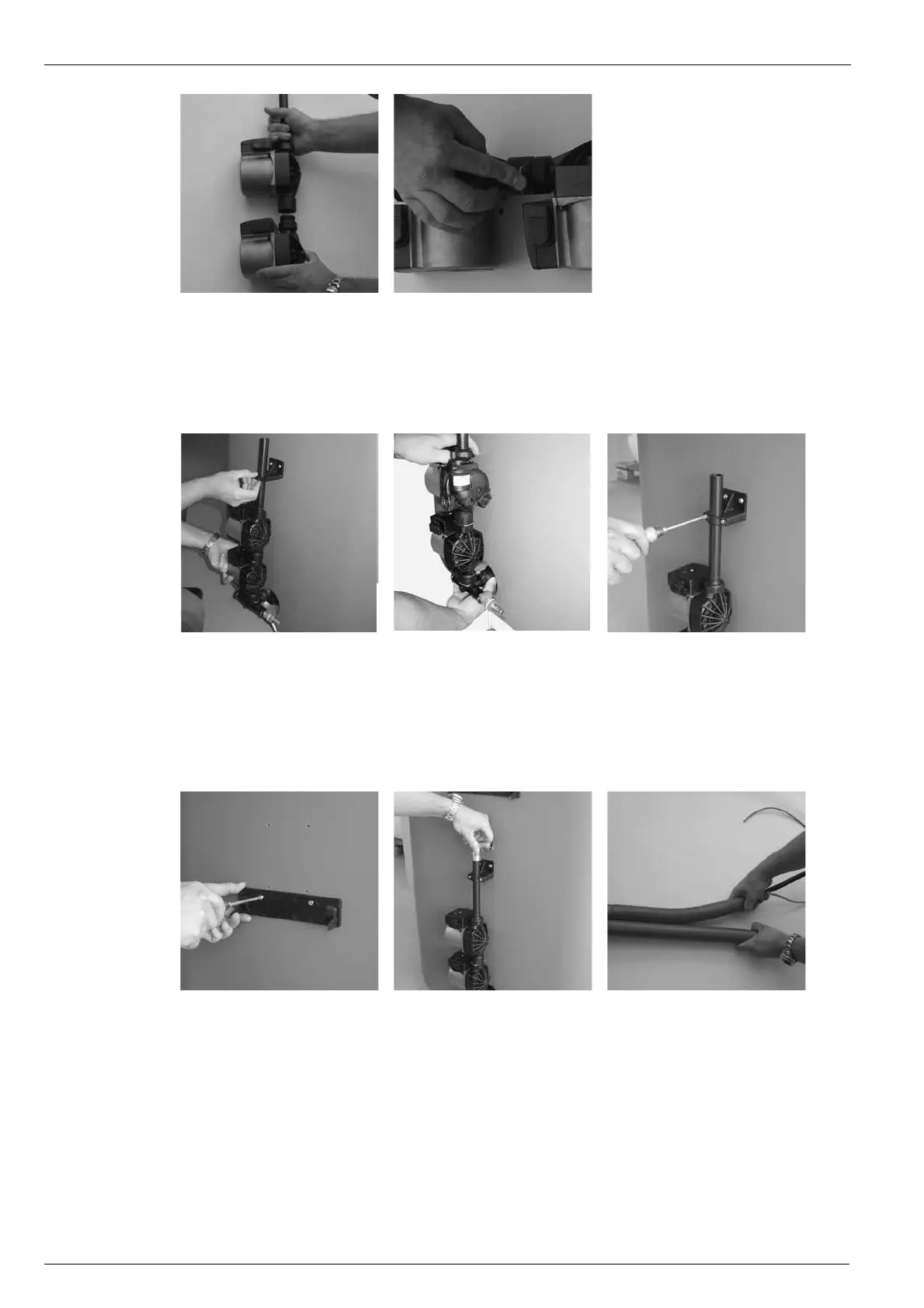

Fig. 3-10 Step 6 Fig. 3-11 Step 6
Fig. 3-12 Step 7 Fig. 3-13 Step 8 Fig. 3-14 Step 9
Fig. 3-15 Step 10 Fig. 3-16 Step 11 Fig. 3-17 Step 12
