7 x Hydraulic system integration
56
FA ROTEX Solaris - 08/2007
 * Disconnecting the standard connection: 3-way reversing valve UV1 must be removed and then reconnected outside the device.

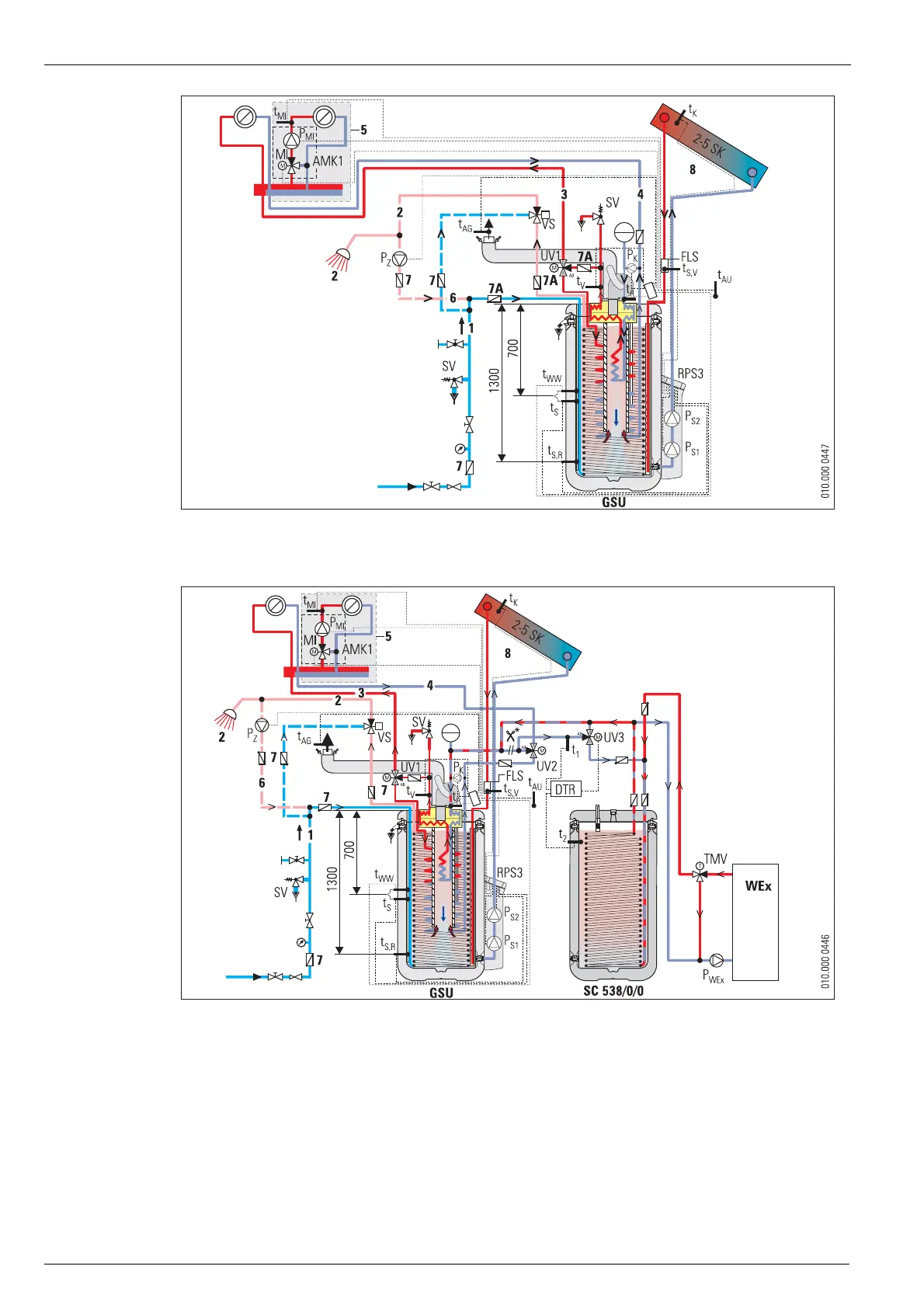

Fig. 7-6 GasSolarUnit Standard (GSU)
Fig. 7-7 Wood-fired boiler combined with a GasSolarUnit (GSU)
