2 IQ Range Low Temperature Settings Manual
Introduction
IQ actuators include a multi-layered
LCD display screen.
The standard display is a high
definition LCD screen which operates in
temperatures down to -30 ºC.
Below -30 ºC the actuator switches to
use a segment display which operates
down to -50 ºC.
This manual enables a competent user
to install, operate, adjust and inspect
Rotork IQ range valve actuators in low
temperature environments using the
segment display.
Connecting to the Actuator

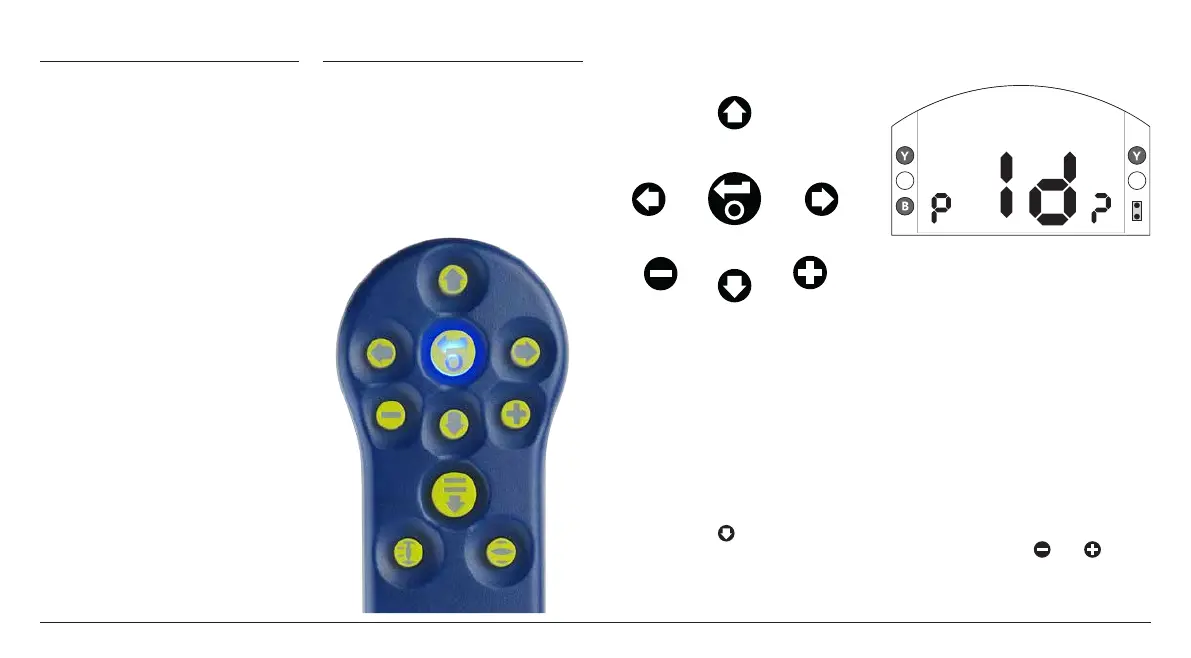

The Rotork Bluetooth
®
Setting Tool
Pro incorporating Bluetooth wireless
technology (BTST) is shown below. It
is identified by the key symbols being
clear and a clear seal between the top
and bottom casings.
The Infra-red only tool has filled
yellow keys and a yellow seal between
casings.
BTST navigation and configuration keys
are shown below.
Up
Down
Decrease
Select/Save
Right/Increase
Left/Decrease
Increase
Connecting to the actuator
using Bluetooth
The default security set in the actuator
for Bluetooth connection is by initiation
using an infra red command. This
means that the user must be in close
proximity and in direct line of sight of
the actuator.
Point the setting tool at the actuator
display window within a range 0.25 m
(10 in) and Press
key.
The screen will change to the password
input screen.
The Setting Tool will automatically
connect using Bluetooth which
takes up to 5 seconds and when
connected will be indicated by blue
lights illuminating on the tool and
in the actuator display window.
Once connected, the tool can be
used without pointing it at the
actuator display window.
Bluetooth connection will be
maintained while setting tool key
commands are made. After a period
of 6 minutes with no key commands,
Bluetooth connection will be turned off
and the Setting tool and display blue
lights will go out. To manually turn
off Bluetooth connection at any time,
press the setting tool and keys
together.
