rotork IQ Series User Manual

6 IQ Range Low Temperature Settings Manual
tO – Opening Torque
Adjustable from 40 – 100 (RA) in
increments of 1.
Opening torque protection can be
bypassed for the first portion of the
opening stroke using setting bb.
LC – Set Close Limit
Save current position as close limit
position (0%).
LO – Set Open Limit
Save current positon as open limit
position (100%).

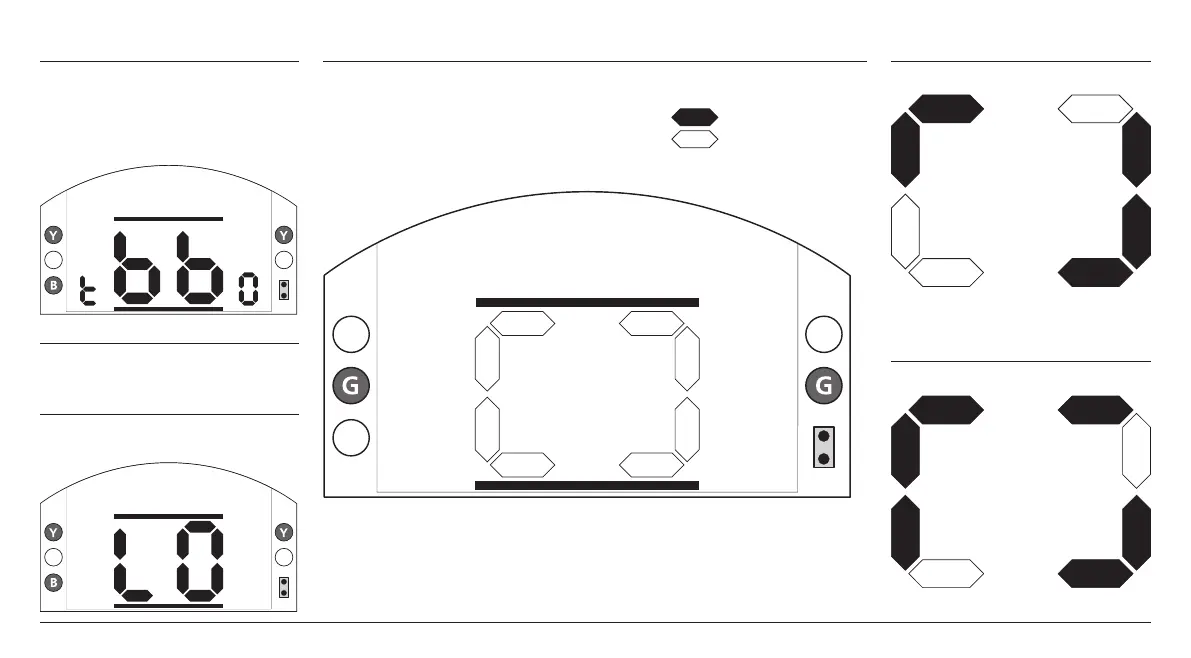

Help Screens
A series of help screens are available in
order to indicate status of the actuator
and aid diagnostics.
Each help screen uses eight different
segments to indicate various functions.
H1 – Local Selector Input
H2 – Hardwired Input
H3 – Primary Control
H4 – Secondary Control
H5 – Alarm Status
H6 – Movement Status
H7 – Relay Status 1
H8 – Relay Status 2
H9 – Fault Status
If a segment is ON the applicable
condition is active.
ON =
OFF =
H1 – Local Selector Input
H2 – Hardwired Input
Open
Close
Stop
Local
Remote
Close
Open
ESD
Stop/Maintain
Open
Interlock
Close Interlock

rotork IQ Series Specifications

General

Type	Electric Valve Actuator
Control	On/Off, Modulating
Power Supply	Single-phase, Three-phase
Torque Range	14 Nm to 3, 000 Nm
Environmental Protection	IP68
Network Communication	HART, Foundation Fieldbus, Modbus, Profibus
Data Logging	Yes
Diagnostic Capabilities	Yes
Display	LCD
Ambient Temperature Range	-30°C to +70°C
Certifications	ATEX, IECEx, CSA
Local Controls	Local control via selector switches and push buttons
