Roxell FLEX-AUGER FA 90 - Thumper Installation (Models 55;75;90); Boot Assembly Procedures

ROXELL - 031 - 0516
FLEX-AUGER - INSTALLATION INSTRUCTIONS
III-38

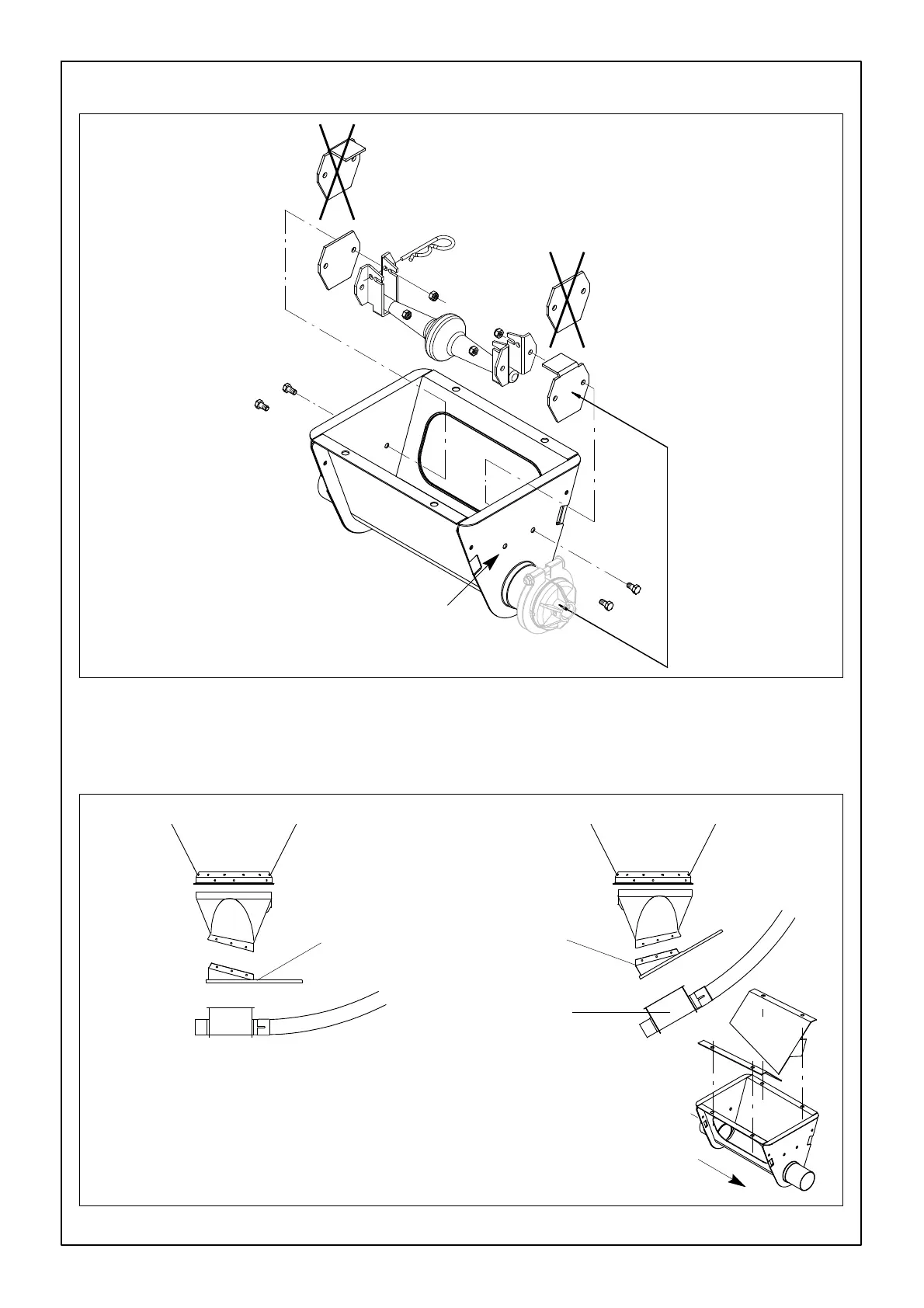

FIGURE 67.
Punch the prepunched h oles.
TO INSTALL THE THUMPER - MODEL 55 / 75 / 90
Slide the upper boot (in correct po-
sition) as far as possible in the bin
collar and drill 8 holes dia. 9mm
(
3
/
8
”).*
Transfer plate - in direction of
transport line.
SURVEY
If you use a pellet kit, install it together with the in-
take boot.
FIGURE 68. FIGURE 69.
FIGURE 70.
0 _ 30 _
Intake boot.
Direction of
transport line.
TO INSTALL THE BOOT ASSEMBLY
