Roxell FLEX-AUGER FA 90 - Connection Kit for Modular Control Unit Fa 90- 04904751

ROXELL - 031 - 0516

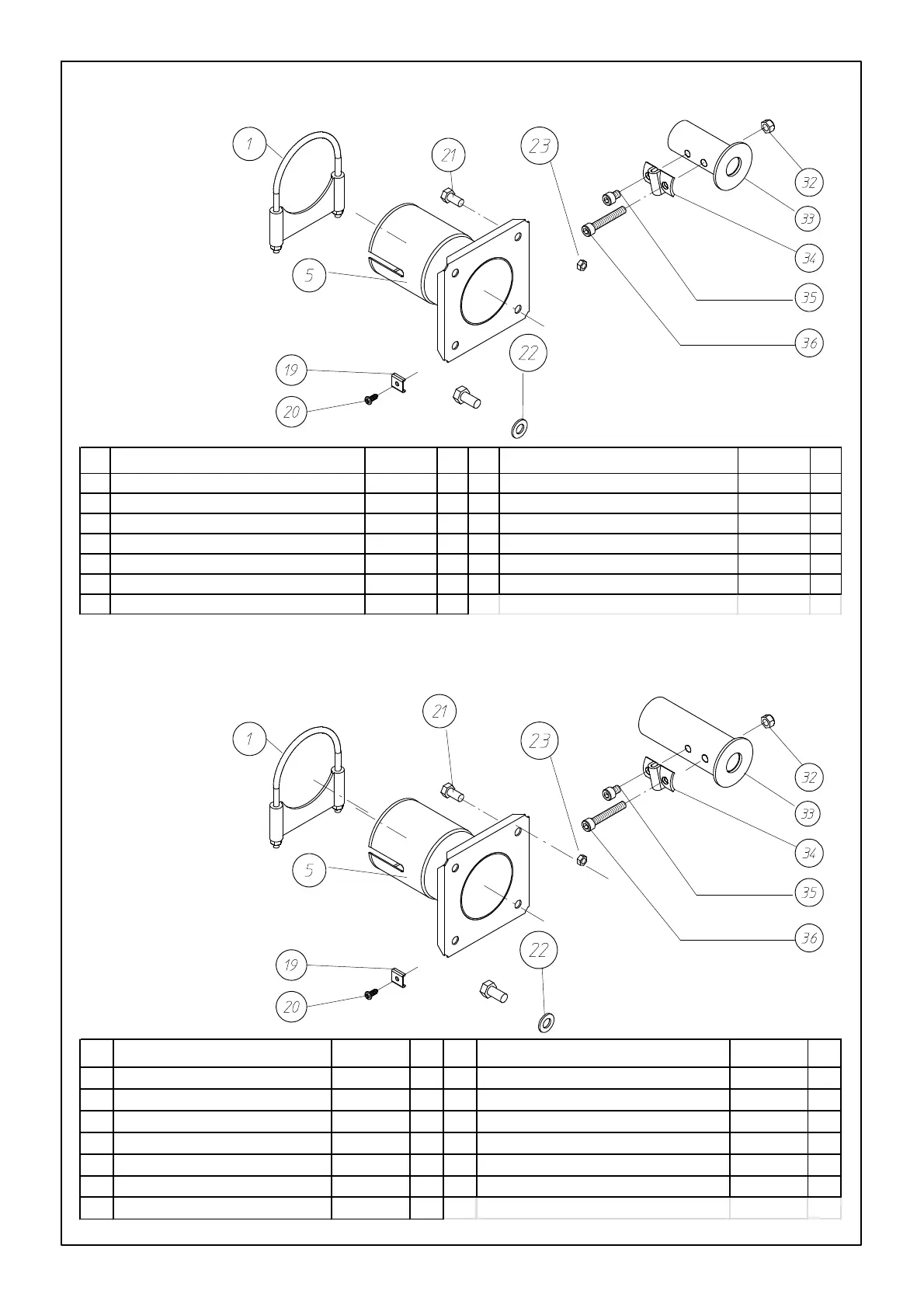

FLEX-AUGER - COMPONENTS
II-49
Key Name Part Nr. Qt. Key Name Part Nr. Qt.
1 TUBE CLAMP ASSEMBLY Ø80MM 03900065 1 *32 LOCKNUT M8 - DIN 985 20100418 1
5 TUBE ANCHOR WELDMENT 13107701 1 33 DRIVER WELDMENT 13105200 1
*19 BOW CLAMP 13103643 6 *34 ANCHOR CLAMP 13104575 1
*20 PARCKER SCREW 8X1/2" 20100525 6 *35 SOCKET CAP SCREW M8X10 - DIN 912 20102778 1
*21 BOLT M8X16 - DIN 933-8.8 20100228 8 *36 SOCKET CAP SCREW M8X50 - DIN 912 20102786 1
*22 WASHER Ø9XØ17X1.6 - DIN 126 20100467 4 * HARDWARE KIT 13106612 1
*23 NUT M8 - DIN 934 20200028 4
CONNECTION KIT FOR MODULAR CONTROL UNIT FA 75- 04904744
CONNECTION KIT FOR MODULAR CONTROL UNIT FA 90- 04904751
Ke y Nam e Par t Nr . Qt . Ke y Nam e Par t Nr . Qt .
1 TUBE CLAMP ASSEMBLY Ø95MM 03200029 1 *32 LOCKNUT M8 - DIN 985 20100418 1
5 TUBE ANCHOR WELDMENT 13200308 1 33 DRIVER WELDMENT 13201561 1
*19 BOW CLAMP 13103643 6 *34 ANCHOR CLAMP 13104575 1
*20 PARCKER SCREW 8X1/2" 20100525 6 *35 SOCKET CAP SCREW M8X10 - DIN 912 20102778 1
*21 BOLT M8X16 - DIN 933-8.8 20100228 8 *36 SOCKET CAP SCREW M8X50 - DIN 912 20102786 1
*22 WASHER Ø9XØ17X1.6 - DIN 126 20100467 4 * HARDWARE KIT 13106612 1
*23 NUT M8 - DIN 934 20200028 4
