ROXELL - 031 - 0516
FLEX-AUGER - INSTALLATION INSTRUCTIONS
III-45

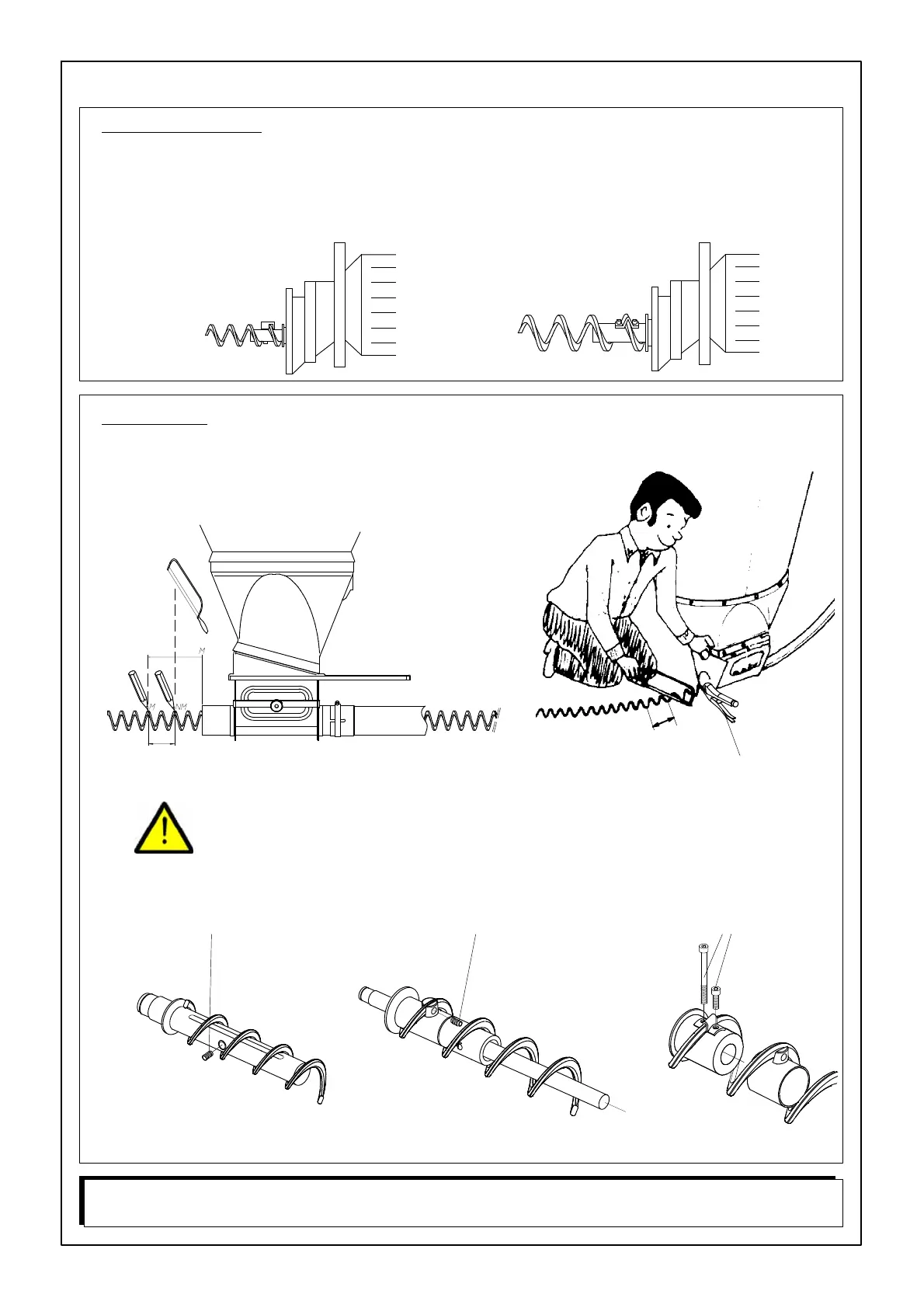

Clamp the auger under the anchor block.Useatube22x1,25.Clamptheaugerun-
der the anchor block.
FIGURE 92.
MODEL 55 :
FIGURE 93.
FIRMLY TIGHTEN THE BOLT. FIRMLY TIGHTEN BOTH BOLTS.
TO THE POWER
UNIT
MODEL 75, 90, 125 :
TO CONNECT THE AUGER
ALWAYS SEE THAT THE AUGER CANNOT SPRING BACK (BY USING CLAMPS
OR A HAMMER IN THE BOOT).
Pull a few times at the auger, so it takes its natural length.
Mark the auger (M) at the rear of the boot.
Stretch the auger a double pitch and put a new mark (NM), then cut the
auger at this new mark.
MODEL 125 :
Firmly tighten the bolts
MODEL 75 andet 90 :
Firmly tighten the set screw.
FIGURE 94.
FIGURE 95.
Slowly slide the auger back into the tube. Firmly fix with a tube clamp (Model 55/75/90).
FIGURE 96.
MODEL55:
Firmly tighten the set screw.
M
NM
Lock grip pliers
FIGURE 97.
TO THE BOOT
Double pitch
Double pitch
DANGER
WHEN USING NOVICOR TUBES, NEVER PUT TENSILE STRESS ON THE AUGER !
