Roxell FLEX-AUGER FA 90 - Feed Intake Boot  90 F;Fa75 - 03202694

ROXELL - 031 - 0516
FLEX-AUGER - COMPONENTS
II-25
Key Name Part Nr. Qt. Key Name Part Nr. Qt.
1 INTA KE BOOT & CLOSING PLA TE FA 90 13202957 1 2 A NCHOR & BEA RING A SS'Y FA 90- 75 13204029 1
1.1 BOOT BODY WELDMENT FA 90 13202965 1 2.1 A NCHOR&BEA RING SHA FT FA 75- 90 13109731 1
1.2 CLOSING BOLT - BRASS SMAL 13108154 1 2.2 RESTRICTOR DIA.36 13105838 1
1.3 CLOSING PROFILE 13107768 1 2.3 A NCHOR TUBE WELDMENT DIA .36 13105853 1
1.4 NUT M10-DIN 934 20100277 1 2.4 BEARING 17 X 35 X 10 - 6003 LLU 13201066 1
1.5 FIBER RING 20104287 1 2.5 SET SCREW M8 x 10 - DIN 916 20100434 2
1.6 E-RING DIA.5-DIN 6799-S.S 20102018 1 2.6 CLAMP PIN 13100482 1
1.7 CLOSING PLATE 13107776 1 2.7 SET SCREW M8X8-DIN 916 20101697 1
1.8 GASKET 15 x 2 30800874 1 2.8 SEEGER RING DIA. 17 X 1 20101333 1
1.9 ROXELL DECAL 10101129 1 2.9 BOLT M6 X 12 - DIN 933-8.8 20100160 2
1.10 DECA L - HA NDS WA RNING 13106596 1 2.10 LOCKNUT M6 - DIN 985 20100400 2
1.11 HARDWARE KIT 13108055 1 2.11 BEARING HOLDER CAP UP - DIA.90 13203781 1
2.12 BEARING HOLDER CAP DOWN-DIA.90 13203799 1
2.13 HOSE CLAMP ø80-100 03200250 1
3 THUMPER HOLDER 13109844 2

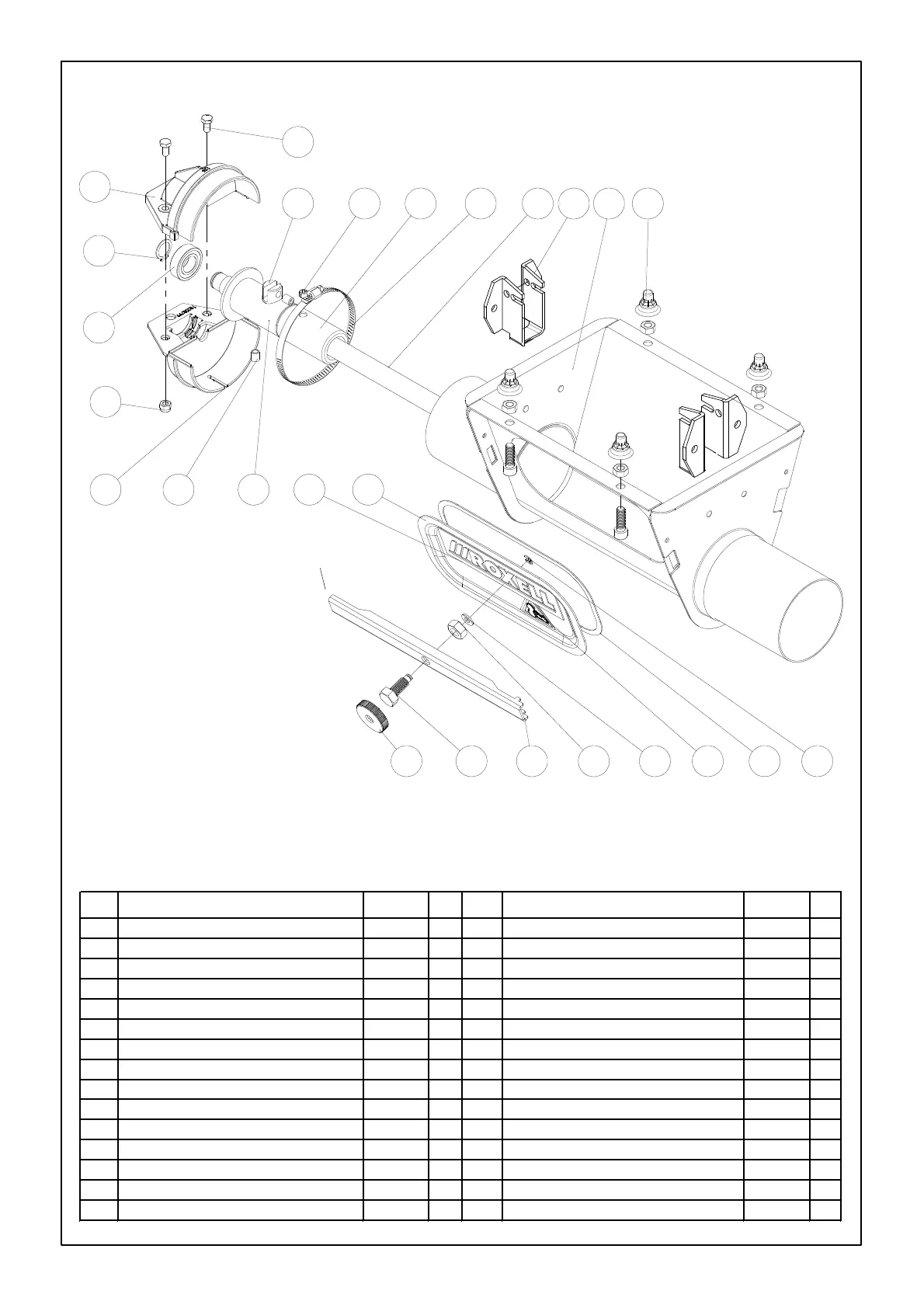

FEED INTAKE BOOT  90F/FA75 - 03202694
1.112.6 2.2 2.1
1.6
1.7
1.81.101.3 1.51.41.2
2.52.12
2.10
2.3
2.8
2.4
2.11
2.9
2.132.7 1.1
1.9
1.11
3
