Roxell FLEX-AUGER FA 90 - Automatic Outlet - Ø 56-24 Vdc(I) - 04906954

ROXELL - 031 - 0516
FLEX-AUGER - COMPONENTS
II-55
Key Name Part Nr. Qt. Key Name Part Nr. Qt.
1 INNER HOUSING Ø56 14905566 1 12 DROP FOR DROP TUBE Ø70 13502174 1
2 OUTLET TUBE WITH GEAR Ø56 14905533 1 13 THREAD FORMING SCREW 4X12-A2 12502043 5
3 FLEXIBLE CLOSING RING Ø56 14905509 4 14 HANDY BOX IPW AX4-IP55 15009814 1
4 REINFORCEMENT PLATE Ø56 14915052 2 15 WASHER 5.3X10X1 - DIN 125 - A2 20102315 4
5 BEARING RING Ø56 14915029 2 16 HEAD SCREW M4X12 DIN7985Z-A4-70 20109567 2
6 MOTOR SET F/AUTOMATIC OUTLET (I) 04906715 1 17 NUT M4 DIN 934 - A2 20102646 2
7 GEARWHEEL 2M 20T 20PA 14905459 1 18 CLAMP STROKE 6E/4 10110799 1
8 SPRING Ø5x20.2 14905624 2 19 CLAMP STROKE 27 20 6E/3 10103109 1
9 CLOSING PLATE Ø56 1.5MM 14905673 2 20 CONNECTING SCHEME NEW OUTLET 14905772 1
10 HOUSING - AUTO OUTLET Ø56 14905616 1 21 TUBE CLAMP Ø50/70MM 13600622 2
11 WINDOW 13000500 1

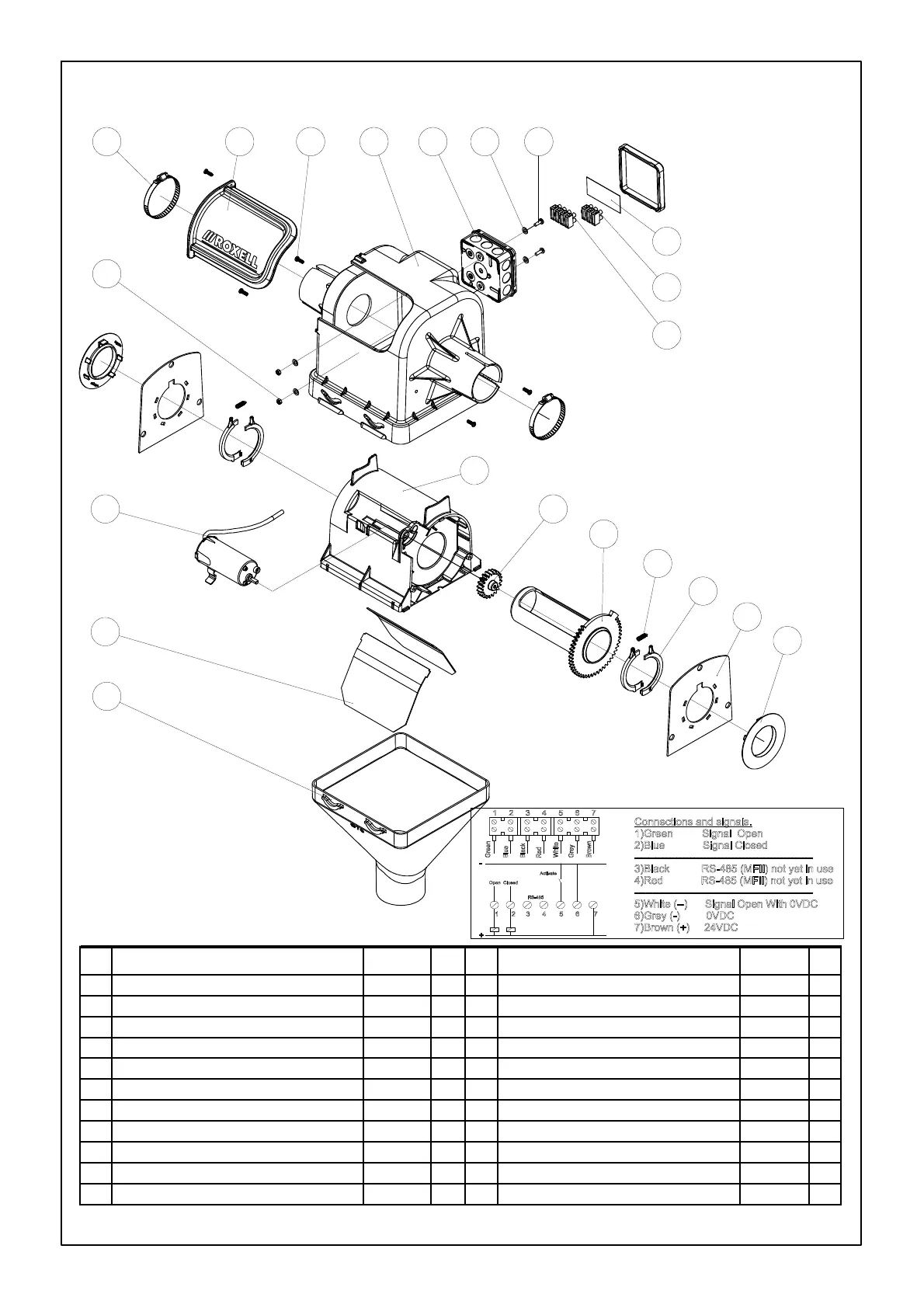

AUTOMATIC OUTLET - Ø 56-24VDC(I) - 04906954
13 10 14 15 16
18
20
19
7
8
2
12
9
6
1
3
17
5
4
1121
Key Name Part Nr. Qt. Key Name Part Nr. Qt.
1 INNER HOUSING DIA 56 14905566 1 12 DROP FOR DROP TUBE DIA 70 13502174 1
2 OUTLET TUBE WITH GEAR DIA 56 14905533 1 13 THREAD FORMING SCREW 4X12-A2 12502043 5
3 FLEXIBLE CLOSING RING DIA 56 14905509 4 14 HANDY BOX IPW AX4-IP55 15009814 1
4 REINFORCEMENT PLATE Ø56 14915052 2 15 WASHER 5,3X10X1 - DIN 125 - A2 20102315 4
5 BEARING RING DIA 56 14915029 2 16 HEAD SCR. M4X12 DIN7985Z-A2 20109567 2
6 MOTOR SET F/AUTOMATIC OUTLET (I) 04906715 1 17 NUT M4 DIN 934 - A2 20102646 2
7 GEARWHEEL 2M 20T 20PA 14905459 1 18 CLAMP STROKE 6E/4 10110799 1
8 SPRING DIA 5 x 20.2 14905624 2 19 CLAMP STROKE 27 20 6E/3 10103109 1
9 CLOSING PLATE Ø56 1.5MM 14905673 2 20 CONNECTING SCHEME NEW OUTLET 14905772 1
10 HOUSING - AUTO OUTLET DIA 56 14905616 1 21 TUBE CLAMP DIA. 50/70 MM 13600622 2
11 WINDOW 13000500 1
