Roxell FLEX-AUGER FA 90 - Connection Control Unit-Bin - Fixed- 03000866

ROXELL - 031 - 0516
FLEX-AUGER - COMPONENTS
II-69
4
1
2
7
14
11
12
9
5
12
8
8
3
10
7
7

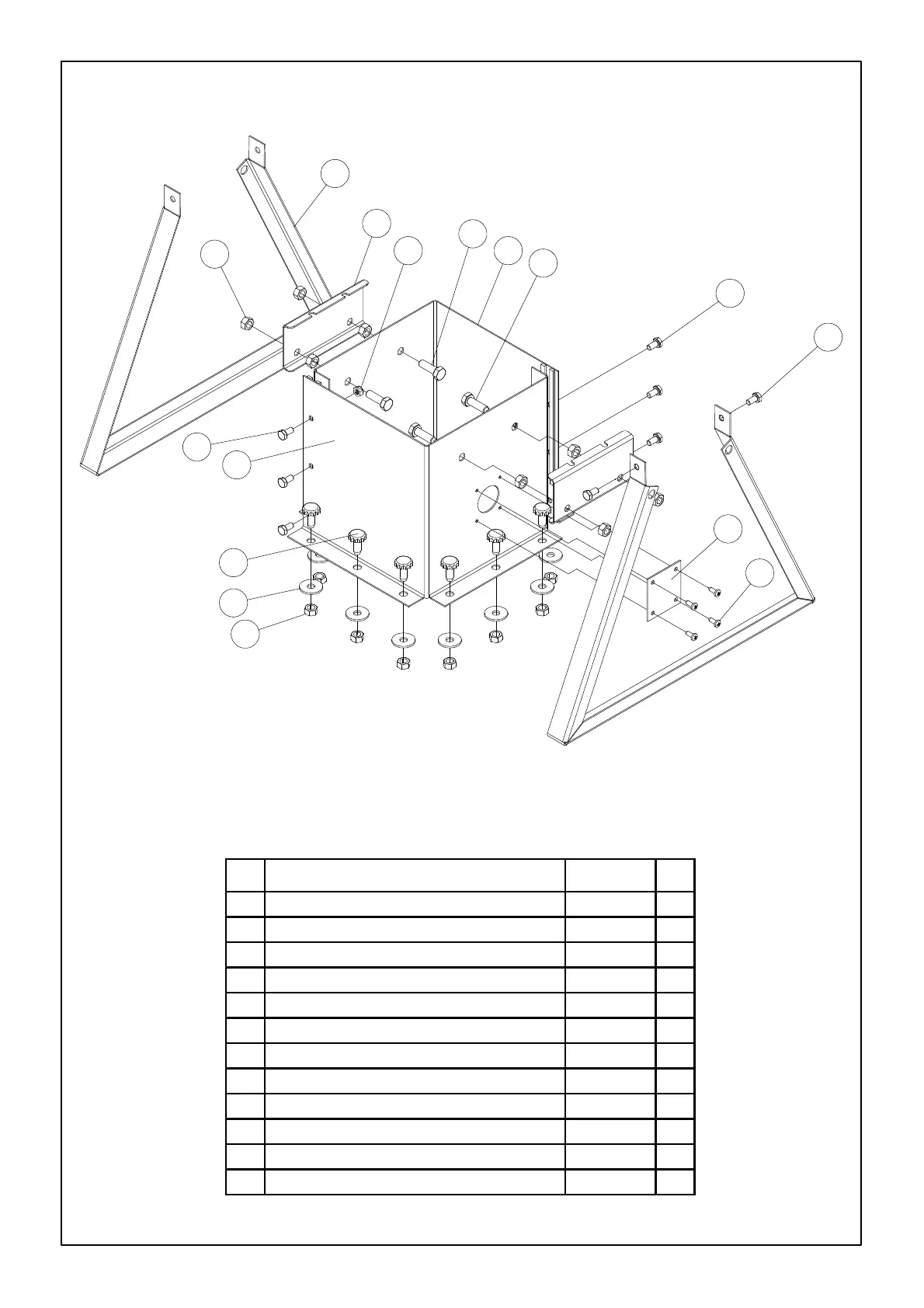

CONNECTION CONTROL UNIT-BIN - FIXED- 03000866
Key Nam e Part Nr. Qt.
1 CONNECTION PLATE 13000674 1
2 CONNECTION PLATE WITH HOLE 13000682 1
3 SEALING PLATE FOR SENSOR 13000708 1
4 TRIANGULAR MOTOR SUPPORT 13000732 2
5 CLAMP PLATE FOR TRANSFER PIECE 13203906 2
6 BOLT M8X20 WITH RUBBER CAP 16103152 12
7 BOLT M6X12 - DIN 933-8.8 20100160 8
8 BOLT M8X25 - DIN 933-8.8 20100236 4
9 LOCKNUT M6 - DIN 985 20100400 6
10 PARCKER SCREW 8X1/2" 20100525 4
11 WASHER Ø8.4X25X2 - DIN 9021 20102794 12
12 NUT M8 - DIN 934 20200028 20
