ROXELL - 031 - 0516
FLEX-AUGER - INSTALLATION INSTRUCTIONS
III-51
IMPORTANT : MAKE SURE THAT ALL TUBE CONNECTIONS ARE WATERTIGHT. FIRMLY T IGHT-
EN TUBE CLAMPS (MINIMUM 10 Nm).
INSTALL THE AUGER (UNDER SLIGHT TENSION :
5 TO 6CM BETWEEN 2 BINS).
Fix the tandem boot to the upper boot part. Connect the line to the tandem boot using the necessary elbows.
SLIDE THE RELAXED AUGER INTO THE
SYSTEM.
If you don't use bin A (or it is empty) :
FLEX-AUGER 125 :
the thumper in the tandem intake boot
is released from the auger when clos-
ing the slide. Check.
Thumper in tandem intake boot.

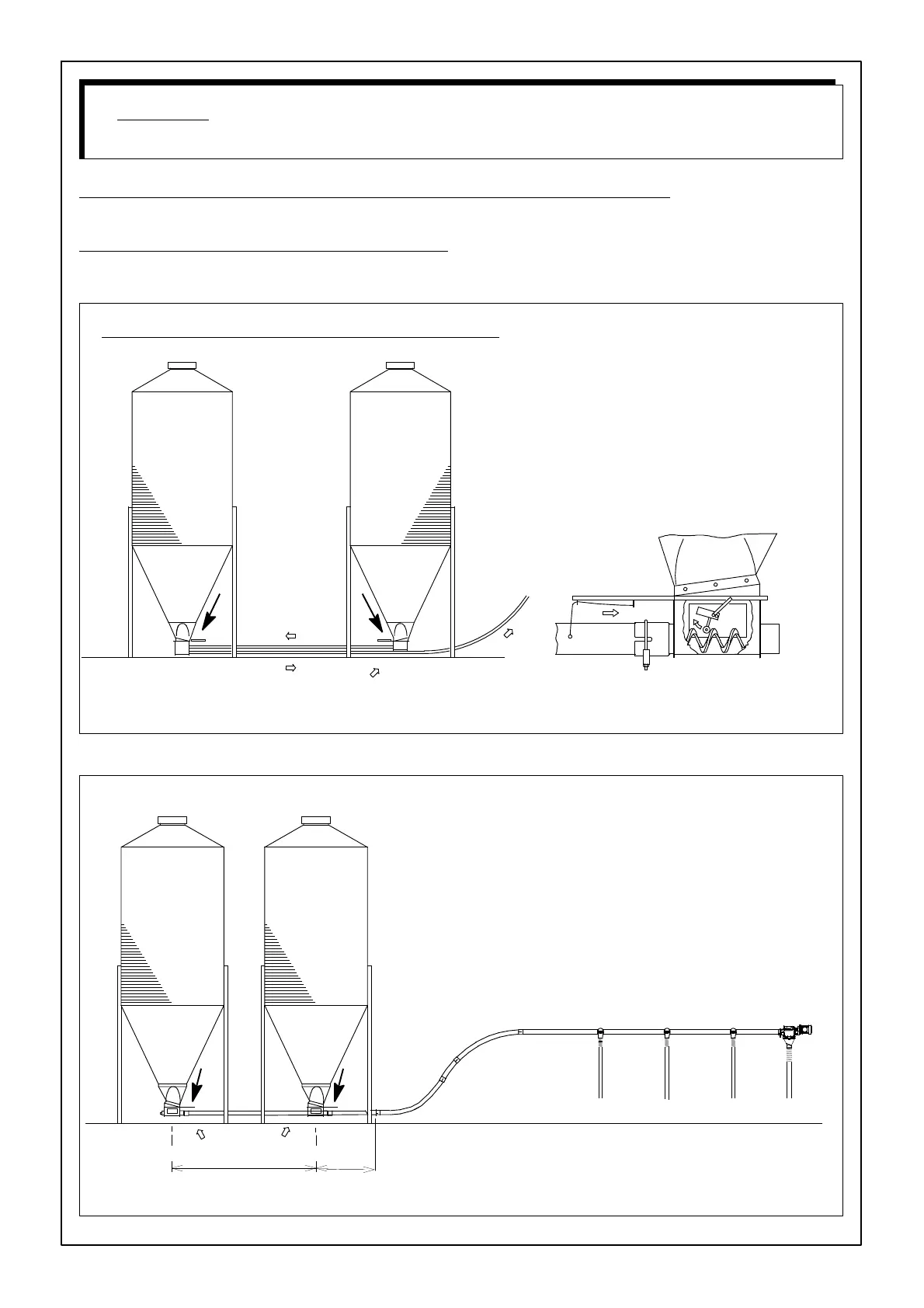

FIGURE 115.
INSTALL THE SLIDES AS SHOWN ON THE
DRAWING.
AB
TO INSTALL THE TANDEM IN LINE (MODEL 75/90)
This tandem is a straight-through Flex Auger.
Install the exact tube length between both bins (FIG.
113. page III-50 ).
FIGURE 116.
Install the valves in the direction as shown on the drawing.
Max. 4m
A
Min.1,5m
b
Total max. length : see graph page III-15 till III-22
Here two thumpers.
