Ruby Tech ES-2410C User Manual

Publication date: Jan, 2009
Revision A1
104
Del All MSTI:
Deleting all provisioned MSTIs at a time.
Instance Configuration: Fig. 3-55
To provision spanning tree performance parameters per instance.
Port Config:
Fig. 3-56
To provision spanning tree performance parameters per instance per port.
Instance Status:
Fig. 3-57
To show the status report of a particular spanning tree instance.
Port Status:
Fig. 3-58
To show the status report of all ports regarding a specific spanning tree
instance.

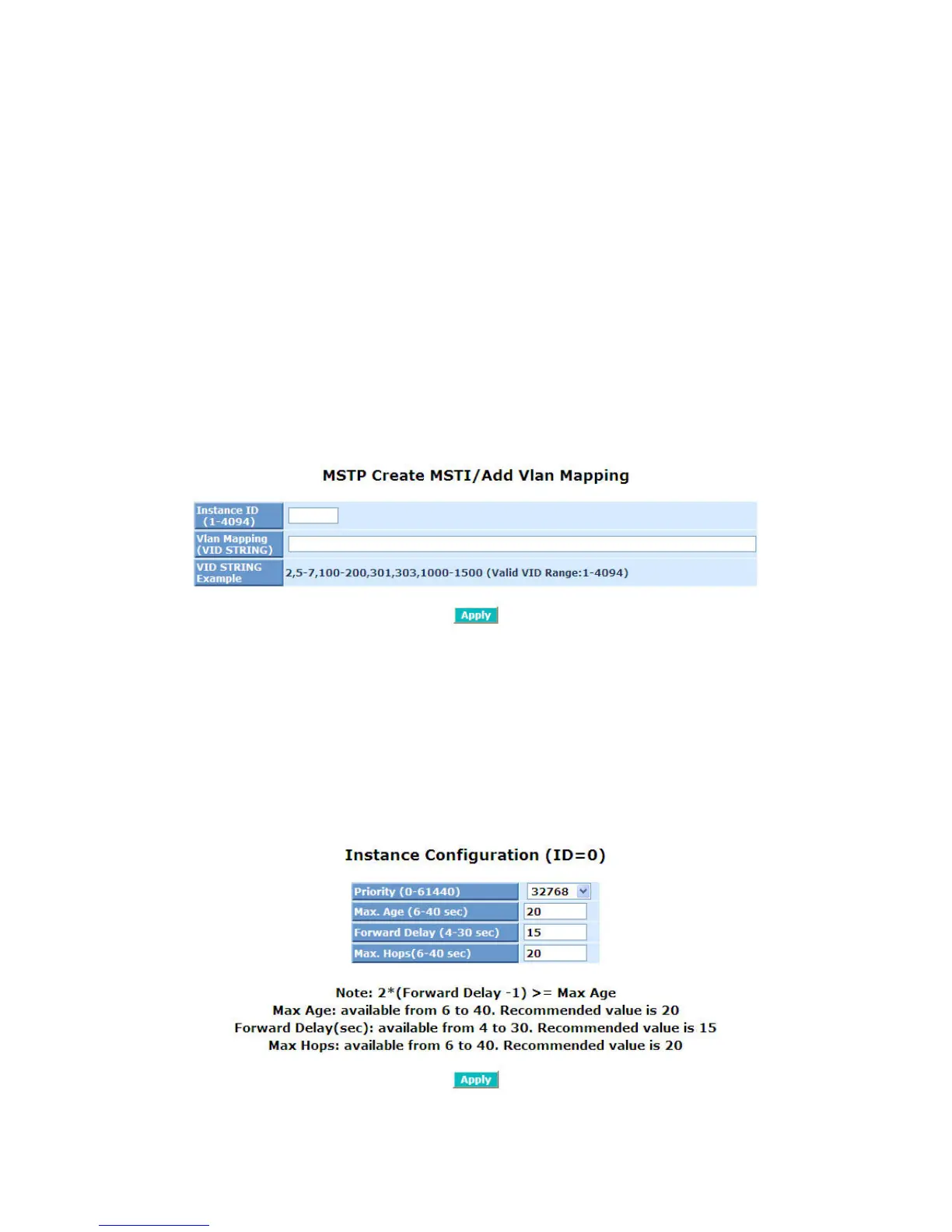

Fig. 3-54
Parameter description:
Vlan Mapping:
VID STRING
VID STRING Example:
2.5-7.100-200.301.303.1000-1500 (Valid VID Range:1-4094)
Fig. 3-55
