3-7-4. Group Filtering
Function name:
Group Filtering
Function description:
The Group Filtering function allows the Multicast VLAN Registration to set up
the IP multicast group filtering conditions. IGMP join behavior that meet the
items you set up will be joined or formed the multicast group.

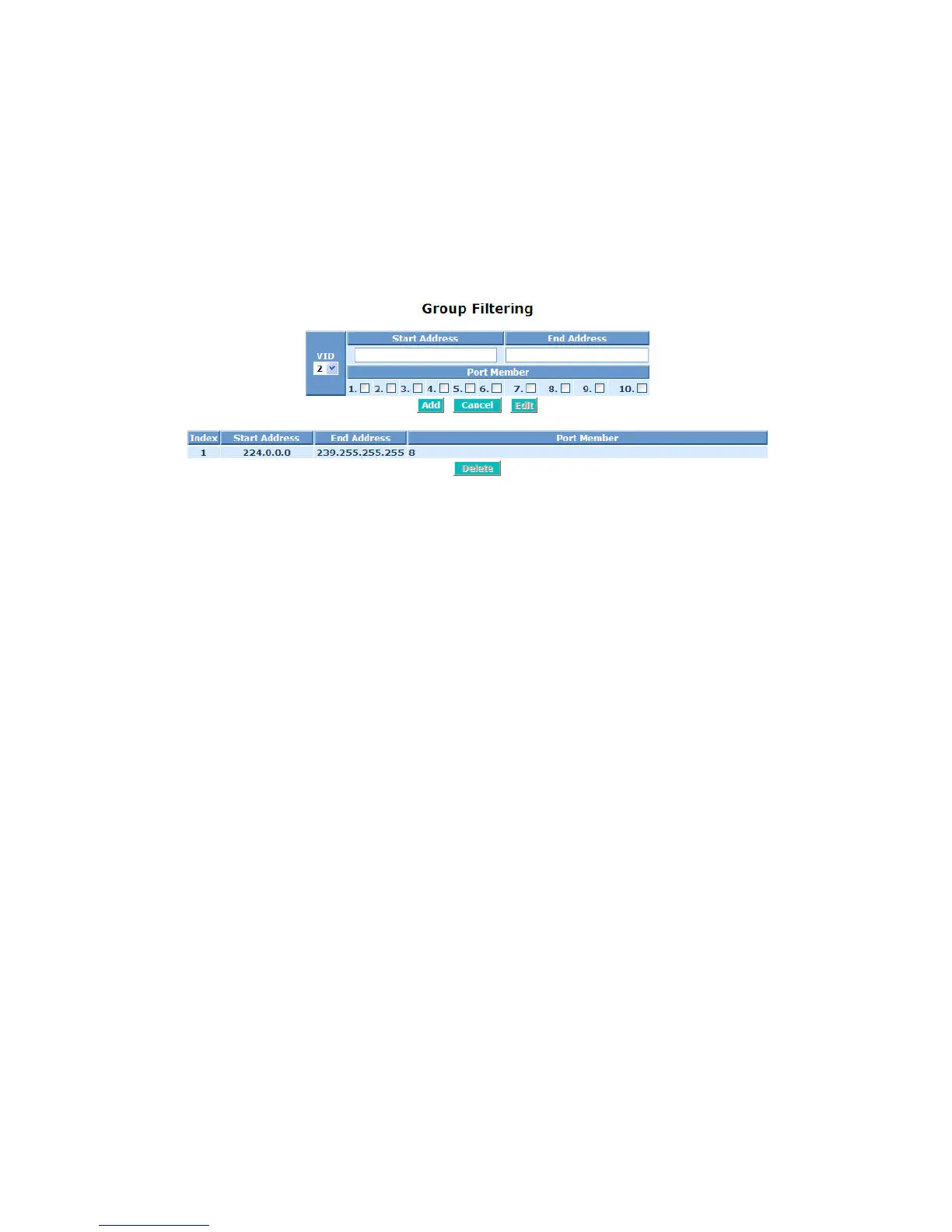

Fig. 3-28
Parameter description:
IP Address Range:
The switch supports two kinds of options for managed valid IP range,
including “Any” and “Custom”. Default is “Any”. In case that” Custom”
had been chosen, you can assigned effective IP range. The valid range
is 224.0.0.0~239.255.255.255.
VID:
The switch supports two kinds of options for managed valid VLAN VID,
including “Any” and “Custom”. Default is “Any”. When you choose
“Custom”, you can fill in VID number. The valid VID range is 1~4094.
Port:
The switch supports two kinds of options for managed valid port range,
including “Any” and “Custom”. Default is “Any”. You can select the ports
that you would like them to be worked and restricted in the allowed group
configuration if ”Custom” had been chosen.
Add:
A new entry of
allowed group configuration can be created after the
parameters as mentioned above had been setup and then press <Add>
button.
Edit:
The existed entry also can be modified after pressing <Edit> button.
Delete:
Remove the existed entry of allowed group configuration from the
allowed group.
