Publication date: Jan., 2009
Revision A1
8
1-4-2. User Interfaces on the Rear Panel
One RS-232 DB-9 interface is offered for configuration or management. And
there is one AC power input socket for having the switch powered on or off.
1-5. View of the Optional Modules
In the switch, Port 9, 10 includes two types of media --- TP and SFP Fiber
(LC, BiDi LC…); this port supports 10/100/1000Mbps TP or 1000Mbps SFP Fiber
with auto-detected function. 1000Mbps SFP Fiber transceiver is used for high-
speed connection expansion; the following are optional SFP types provided for the
switch:
⎯ 1000Mbps LC, MM, SFP Fiber transceiver (SFP.0LC.202)
⎯ 1000Mbps LC, SM 10km, SFP Fiber transceiver (SFP.0LC.212.10)
⎯ 1000Mbps LC, SM 30km, SFP Fiber transceiver (SFP.0LC.212.30)
⎯ 1000Mbps LC, SM 50km, SFP Fiber transceiver (SFP.0LC.212.50)
⎯ 1000Mbps BiDi LC, type 1, SM 20km, SFP Fiber WDM transceiver
(SFP.0BL.621.201)
⎯ 1000Mbps BiDi LC, type 2, SM 20km, SFP Fiber WDM transceiver
(SFP.0BL.621.202)
⎯ 1000Mbps LC, SM 10km, SFP Fiber transceiver with DDM
(SFP.DLC.212.10)

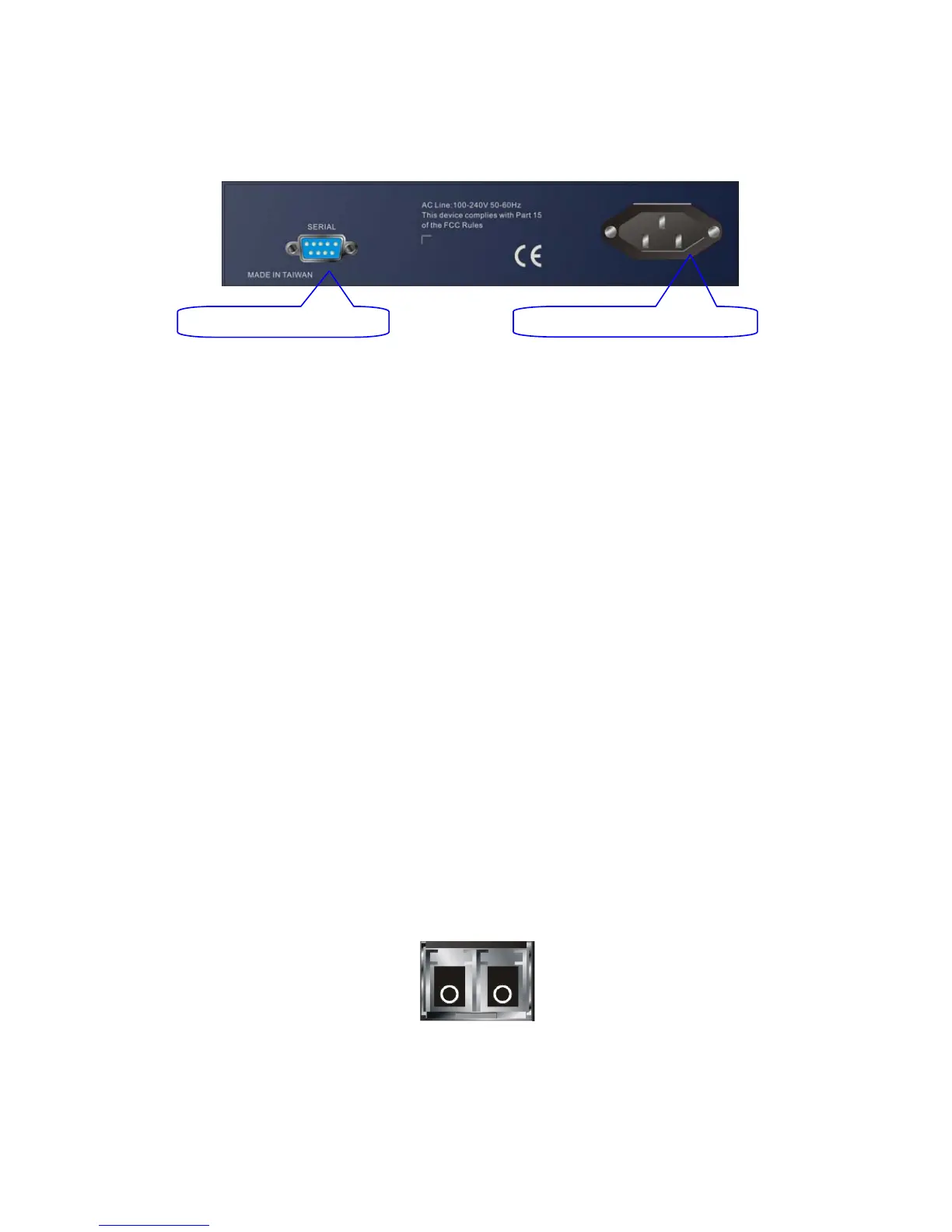

Fig. 1-3 Rear View of ES-2410C
RS-232 DB-9
