In the switch, Port 9, 10 includes two types of media --- TP and GBIC Fiber
(SC, BiDi SC…); this port supports 10/100/1000Mbps TP or 1000Mbps GBIC Fiber
with auto-detected function. 1000Mbps GBIC Fiber transceiver is used for high-
speed connection expansion; six optional GBIC types provided for the switch are
listed below:
⎯ 1000Mbps SC, MM, GBIC Fiber transceiver (GBI.ZSC.202)
⎯ 1000Mbps SC, SM 10km, GBIC Fiber transceiver (GBI.ZSC.212.10)
⎯ 1000Mbps SC, SM 30km, GBIC Fiber transceiver (GBI.ZSC.212.30)
⎯ 1000Mbps SC, SM 50km, GBIC Fiber transceiver (GBI.ZSC.212.50)
⎯ GBIC BiDi-SC, SM 20km 1550nm Fiber transceiver (GBI.ZBS.621.201)
⎯ GBIC BiDi-SC, SM 20km 1310nm Fiber transceiver (GBI.ZBS.621.202)

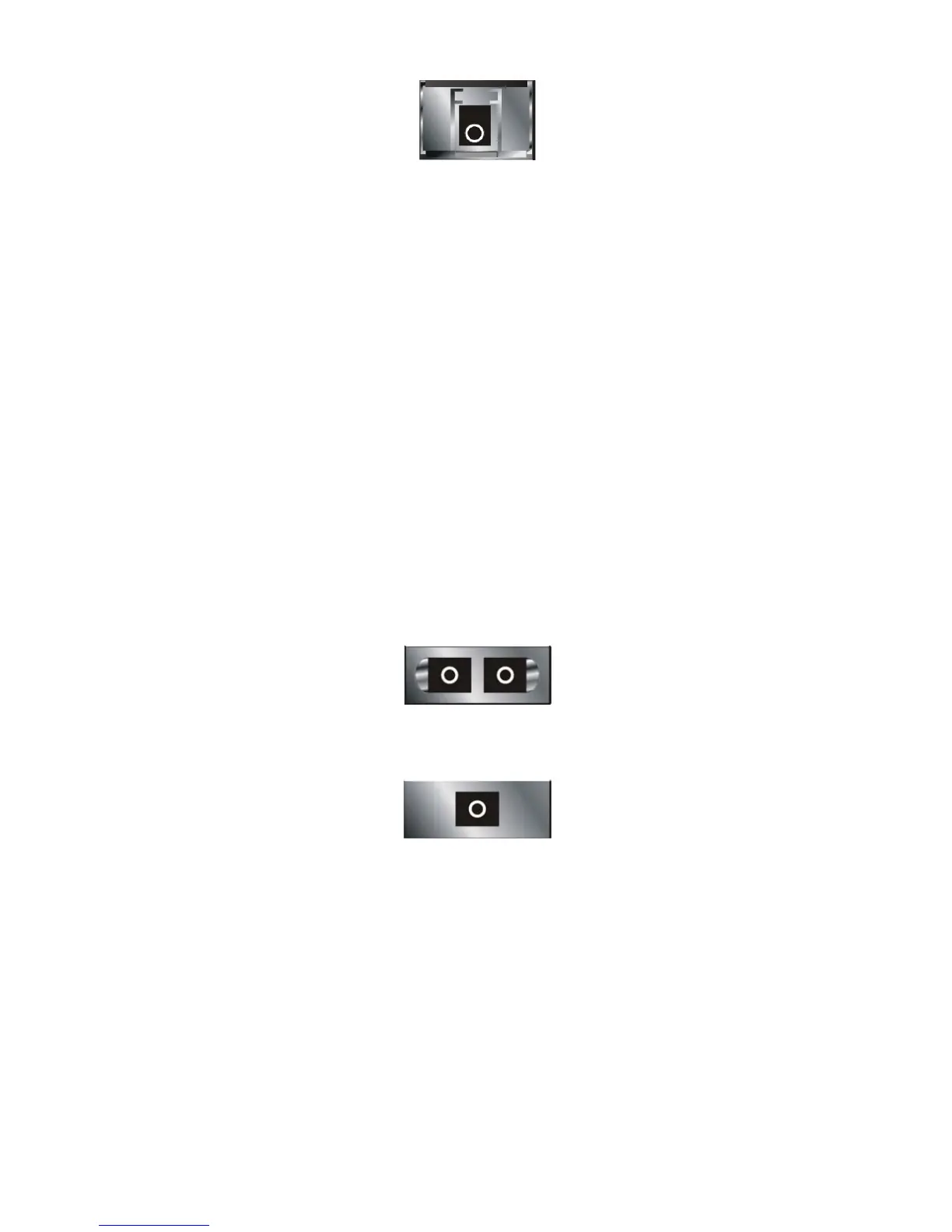

Fig. 1-6 Front View of GBIC SC Fiber Transceiver
Fig. 1-7 Front View of GBIC BiDi-SC Fiber Transceiver
Fig. 1-5 Front View of 1000Base-LX BiDi LC, SFP Fiber Transceiver
