3-3. Port Configuration
Four functions, including Port Status, Port Configuration, Simple Counter and
Detail Counter are contained in this function folder for port monitor and
management. Each of them will be described in detail orderly in the following
sections.
3-3-1.Port Status
The function Port Status gathers the information of all ports’ current status
and reports it by the order of port number, media, link status, port state, Auto-
Negotiation status, speed/duplex, Rx Pause and Tx Pause. An extra media type

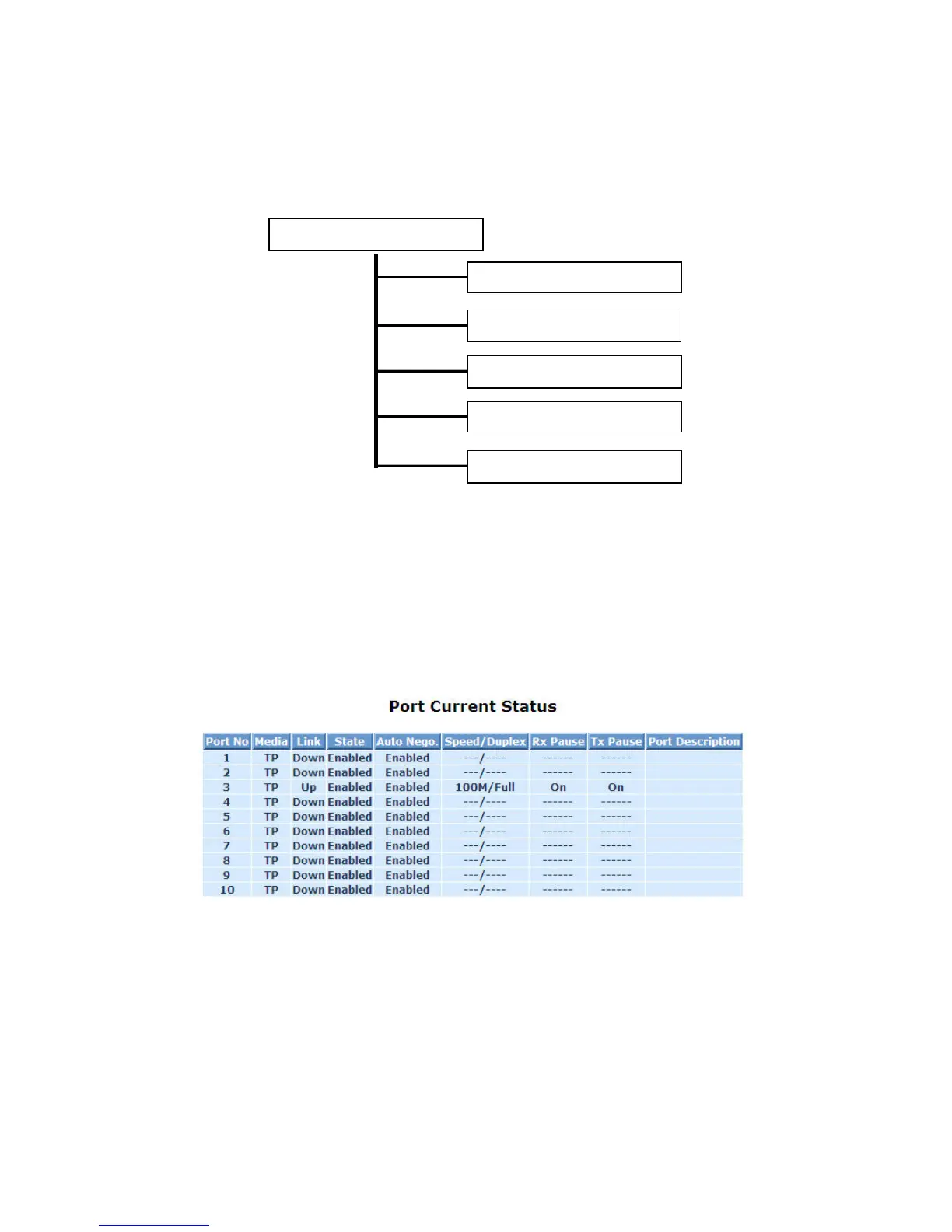

information for the module ports 9 and 10 is also offered (See Fig. 3-11).
Fig. 3-16
Function name:
Port Status
Function Description:
Report the latest updated status of all ports in this switch. When any one of
the ports in the switch changes its parameter displayed in the page, it will be
automatically refreshed the port current status about every 5 seconds.
