Publication date: Jan, 2009
Revision A1
50
Parameters description:
Current User List:
The maximum number of IP-MAC binding client table is 512 entries. The
maximum number of IP-MAC Binding server table is 64 entries.
No:
The entry number and delete icon when you need to delete the entry
then you need to click the icon to delete it..
Name:
A name is composed of any letter (A-Z, a-z) and digit (0-9) with maximal
8 characters.
MAC:
Six-byte MAC Address: xx-xx-xx-xx-xx-xx
For example: 00-40-c7-00-00-01
IP:
Four-byte IP Address: xxx.xxx.xxx.xxx
For example: 192.168.1.100
Port：To click port 1 to port 10 enable IP-MAC binding.
Binding Method: To scroll the IP-MAC/ IP /MAC to choice the binding method
type.
Add:
Click on <Add> to create a new entry into the IP MAC Binding table and
Input name, MAC, IP, Port and Binding Method,
Edit:
The existed entry also can be modified after pressing <Edit> button.
Delete:
Select one of entry from the table, then click on <Delete> to delete this
entry.

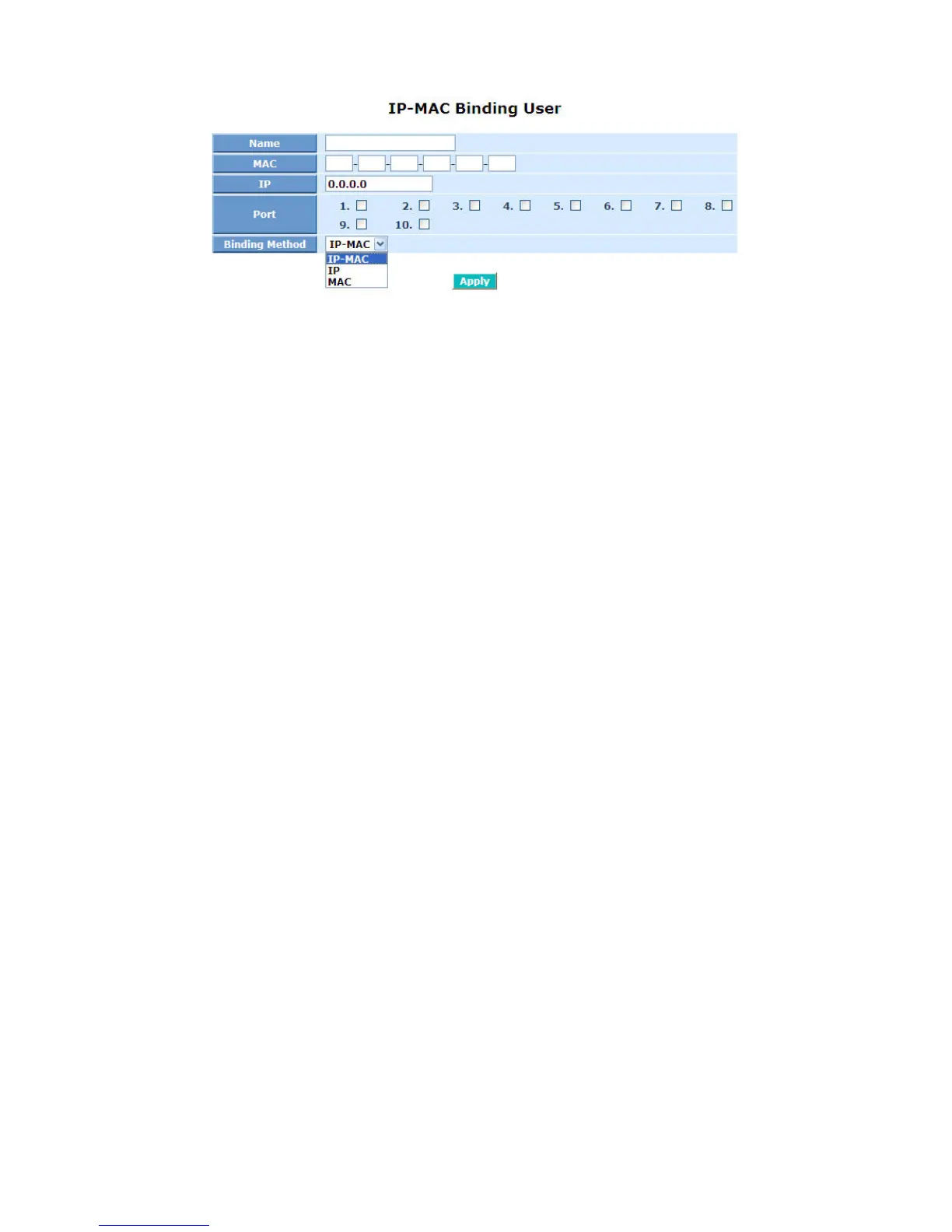

Fig. 3-15
