(See Fig. 2-6).
2-1-4. Configuring the Management Agent of ES-2410C
We offer you three ways to startup the switch management function. They
are RS-232 console, CLI, and Web. Users can use any one of them to monitor and
configure the switch. You can touch them through the following procedures.
Section 2-1-4-1: Configuring the Management Agent of ES-2410C through the
Serial RS-232 Port
Section 2-1-4-2: Configuring the Management Agent of ES-2410C through the
Ethernet Port
Note: Please first modify the IP address, Subnet mask, Default gateway and DNS
through RS-232 console, and then do the next.
2-1-4-1. Configuring the Management Agent of ES-2410C through the Serial
RS-232 Port
To perform the configuration through RS-232 console port, the switch’s serial
port must be directly connected to a DCE device, for example, a PC, through
RS-232 cable with DB-9 connector. Next, run a terminal emulator with the default
setting of the switch’s serial port. With this, you can communicate with the switch.
In the switch, RS-232 interface only supports baud rate 57.6k bps with 8 data
bits, 1 stop bit, no parity check and no flow control.

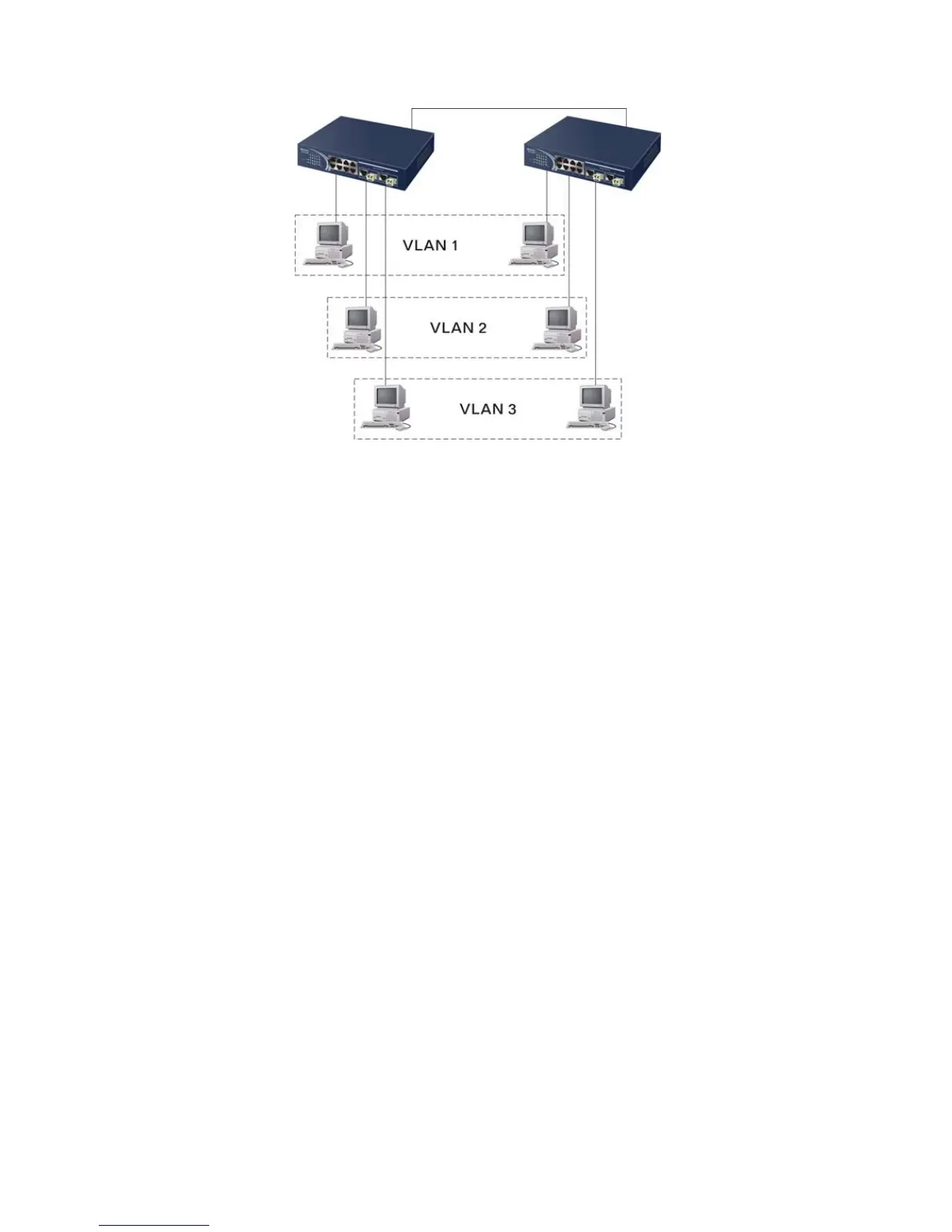

Fig. 2-6 Attribute-based VLAN Diagram
