2-2. Typical Applications
The ES-2410C implements 8 Fast Ethernet TP ports with auto MDIX and 2
Gigabit dual media ports with SFP/GBIC for removable module supported
comprehensive fiber types of connection, including LC, BiDi LC for SFP and LC/SC,
BiDi LC/SC for GBIC. For more details on the specification of the switch, please
refer to Appendix A.
The switch is suitable for the following applications.
⎯ Central Site/Remote site application is used in carrier or ISP (See Fig. 2-13)
⎯ Peer-to-peer application is used in two remote offices (See Fig. 2-14)
⎯ Office network(See Fig. 2-15)

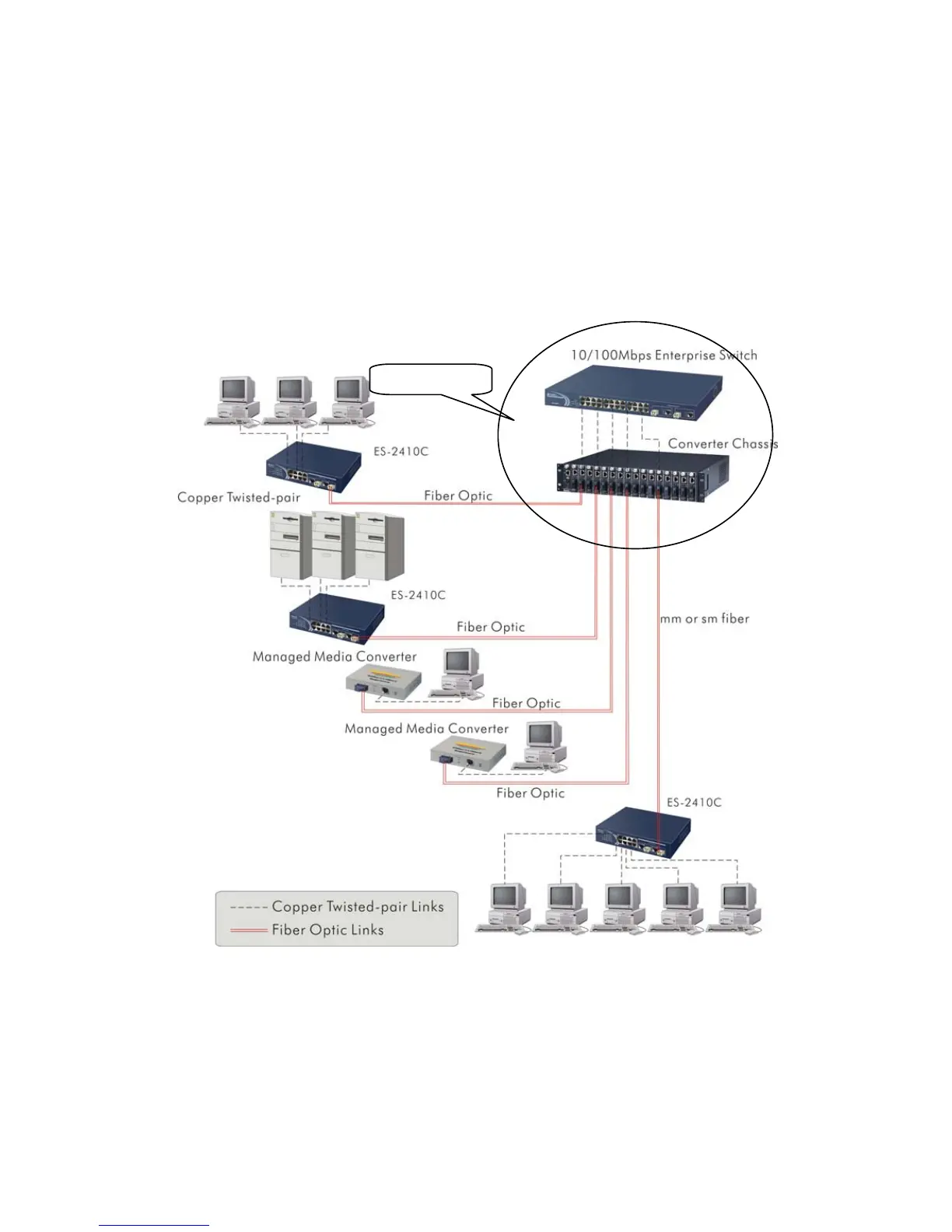

Fig. 2-13 Network Connection between Remote Site and Central Site
