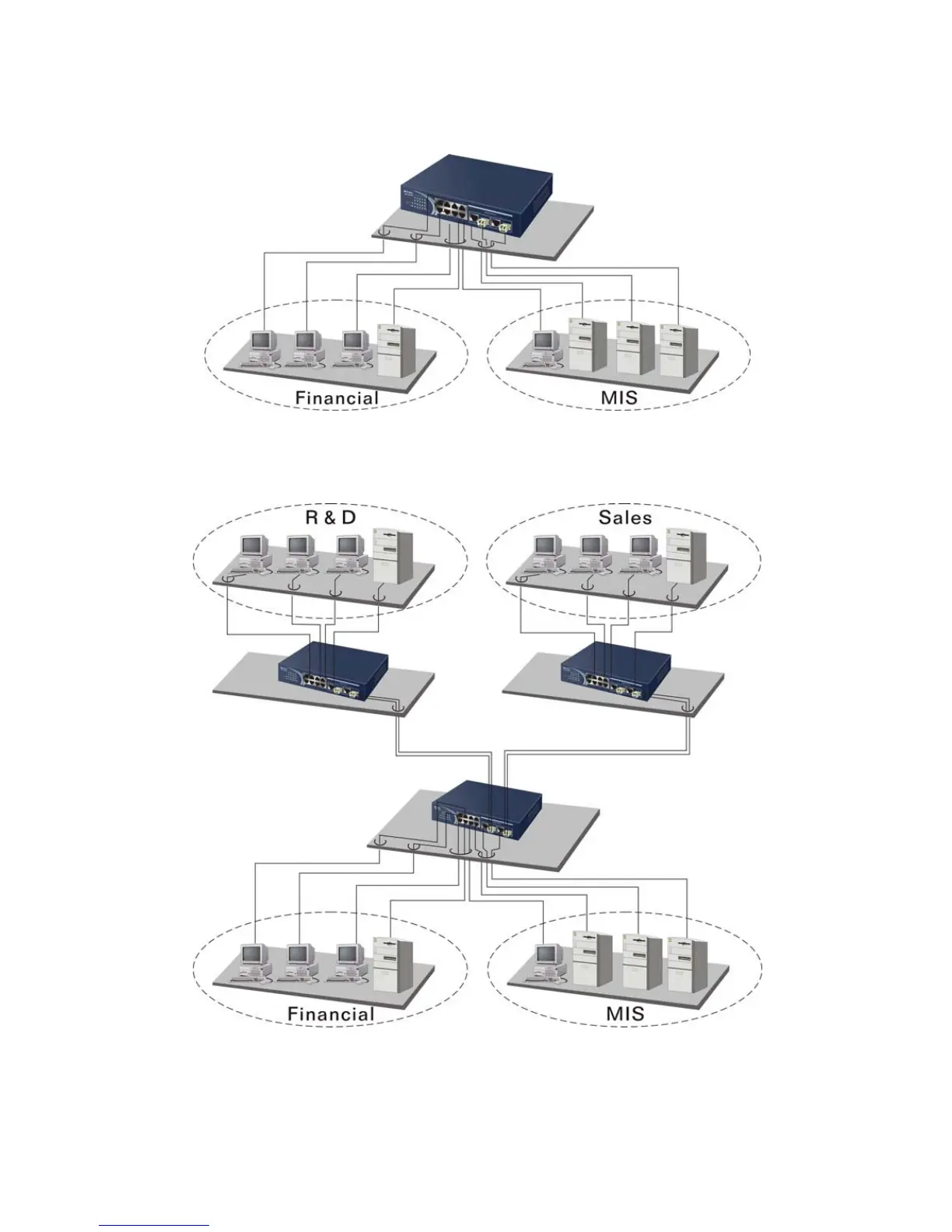

Fig. 2-13 is a system wide basic reference connection diagram. This diagram

demonstrates how the switch connects with other network devices and hosts.

Fig. 2-15 Office Network Connection

Fig. 2-14 Peer-to-peer Network Connection
