Publication date: Jan., 2009
Revision A1
109

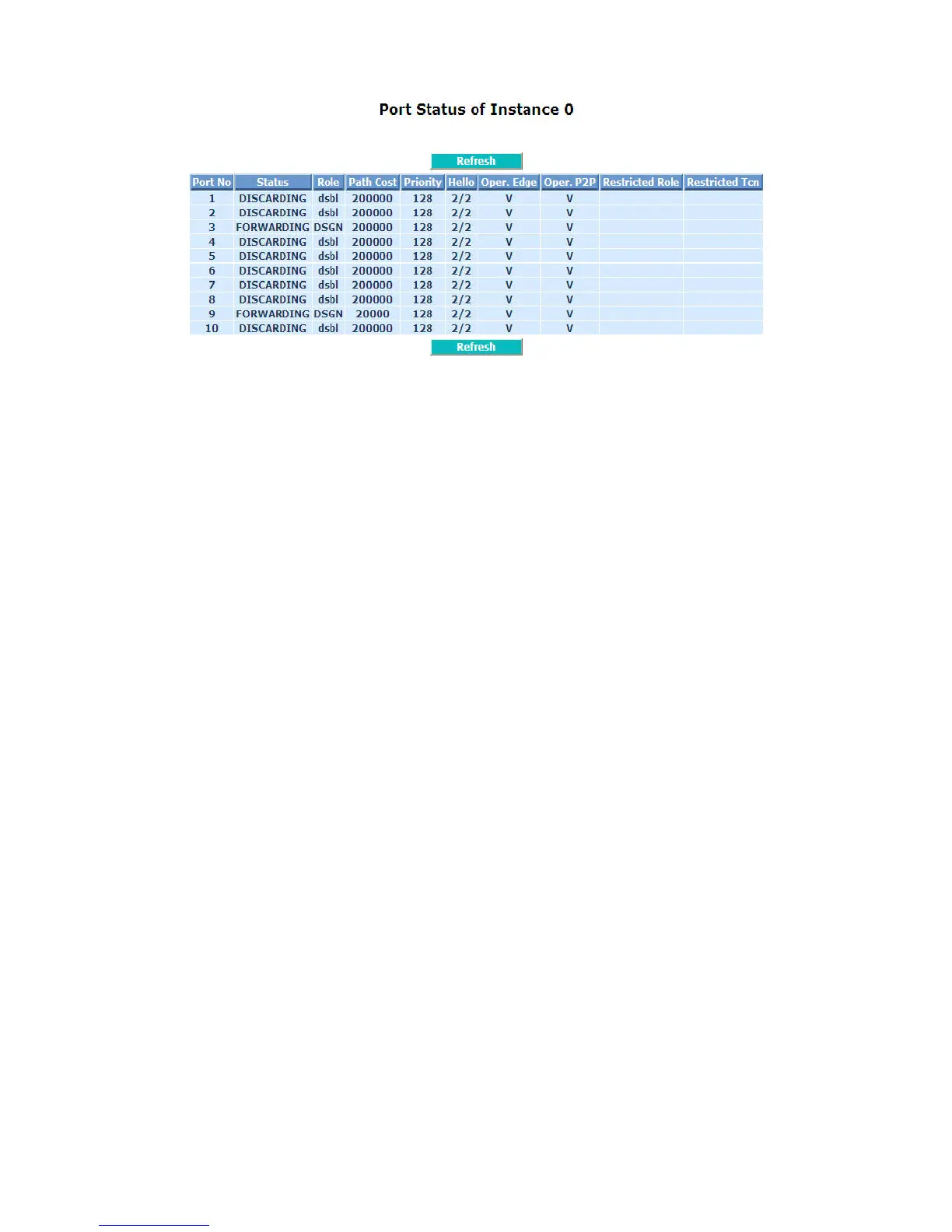

Fig. 3-58
Parameter description:
Port No:
1-10
Status:
The forwarding status.Same definition as of the RSTP specification
Possible values are “FORWARDING” , “LEARNING” , “DISCARDING”
Status:
The role that a port plays in the spanning tree topology. Possible values
are “dsbl”(disable port) , ”alt”(alternate port) , “bkup”(backup port) ,
“ROOT”(root port) , “DSGN”(designated port) , “MSTR”(master port). The
last 3 are possible port roles for a port to transit to FORWARDING state
Path Cost:
Display currently resolved port path cost value for each port in a
particular spanning tree instance.
Priority:
Display port priority value for each port in a particular spanning tree
instance.
Hello:
per port Hello Time display. It takes the following form:
Current Hello Time/Hello Time Setting
Oper. Edge:
Whether or not a port is an Edge Port in reality.
Oper. P2P:
Whether or not a port is a Point-to-Point Port in reality.
