Publication date: Jan., 2009 115
Revision A1

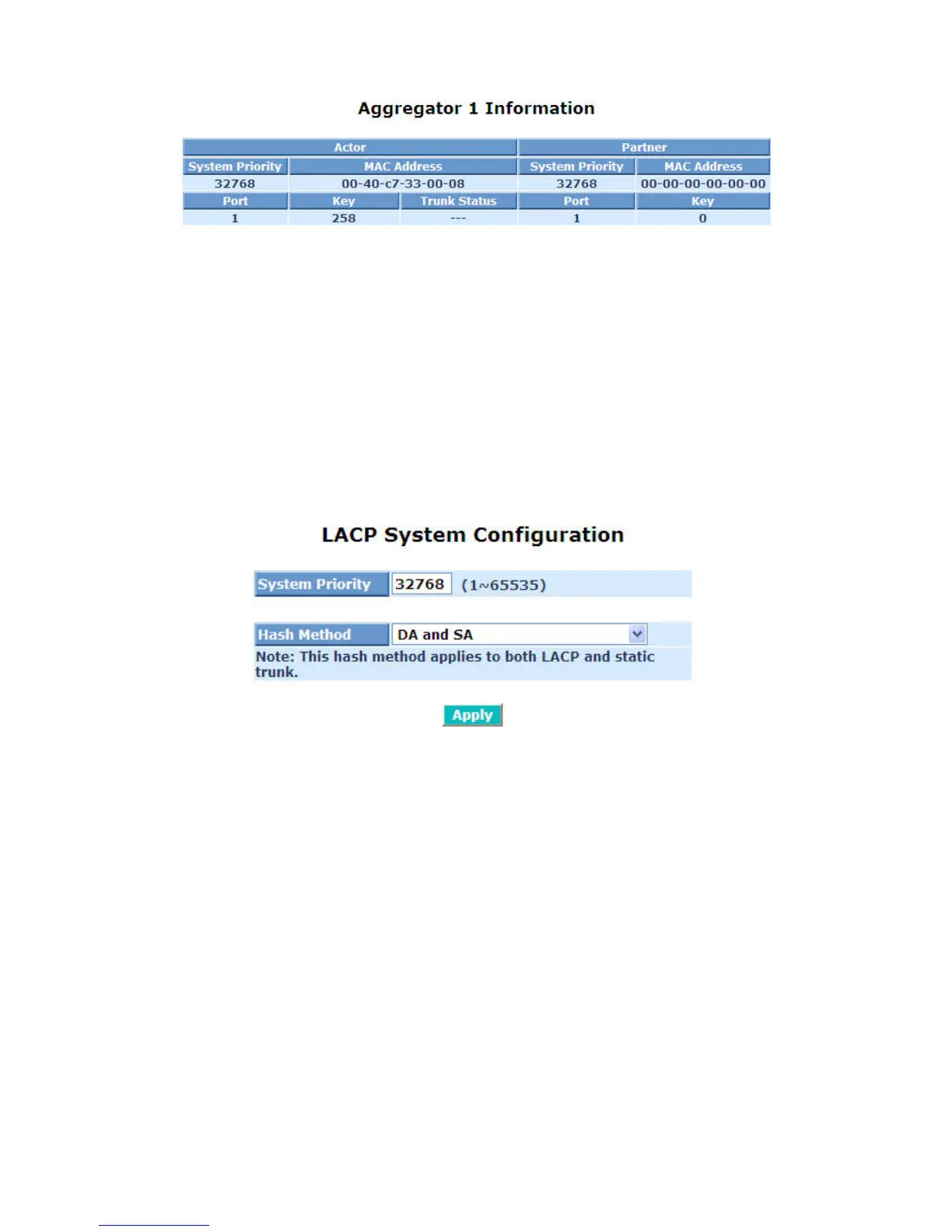

Fig. 3-61
Function name:
LACP System Configuration
Function description:
It is used to set the priority part of the LACP system ID. LACP will only
aggregate together the ports whose peer link partners are all on a single
system. Each system supports LACP will be assigned a globally unique
System Identifier for this purpose. A system ID is a 64-bit field comprising a
48-bit MAC Address and 16-bit priority value.
Fig.3-62
Parameter description:
System Priority:
The System Priority can be set by the user. Its range is from 1 to 65535.
Default: 32768.
LACP Hash Method:
DA+SA, DA and SA are three Hash methods offered for the Link
Aggregation of the switch. Packets will decide the path to transmit
according to the mode of Hash you choose.
Default: DA and SA
