Publication date: Jan., 2009
Revision A1
145
ACL Configuration:
To add a new ACL rule on switch.
ACL name:
To add a new ACL rule name, A name is composed of any letter (A-Z, a-z)
and digit (0-9) with maximal 8 characters.
Ingress Port Map:
To evoke the ingress ports to join the access control rule. port number is
1~10 or all.
MAC DA/SA:
To input the source and destination MAC filter.
For example: 00-40-c7-00-00-01

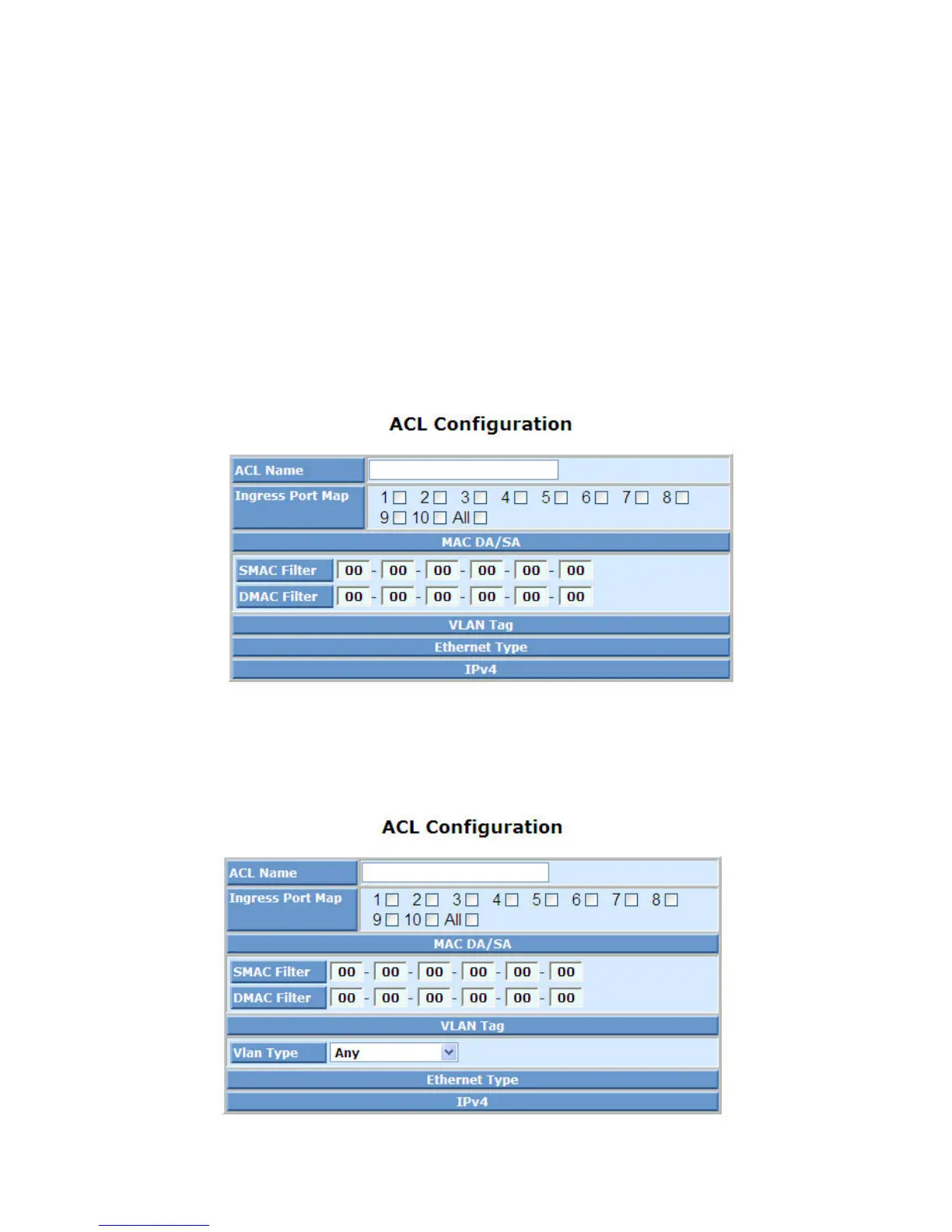

Fig. 3-89
VLAN Tag:
To input VLAN Type with 2 type include “any” and “ Tag-based Vlan” If
you choice Tag-based Vlan type then you must input Tag VID in field.
Fig. 3-90
