Add Group:
Input the VLAN name, VID and then choose the member by ticking the
check box beside the port No. to create a new Tag-based VLAN. As to
the parameter of Untag, it stands for an egress rule of the port. If you tick
the check box beside the port No., packets with this VID outgoing from
this port will be untagged. Finally, press the <Apply> button to have the
setting taken effect.

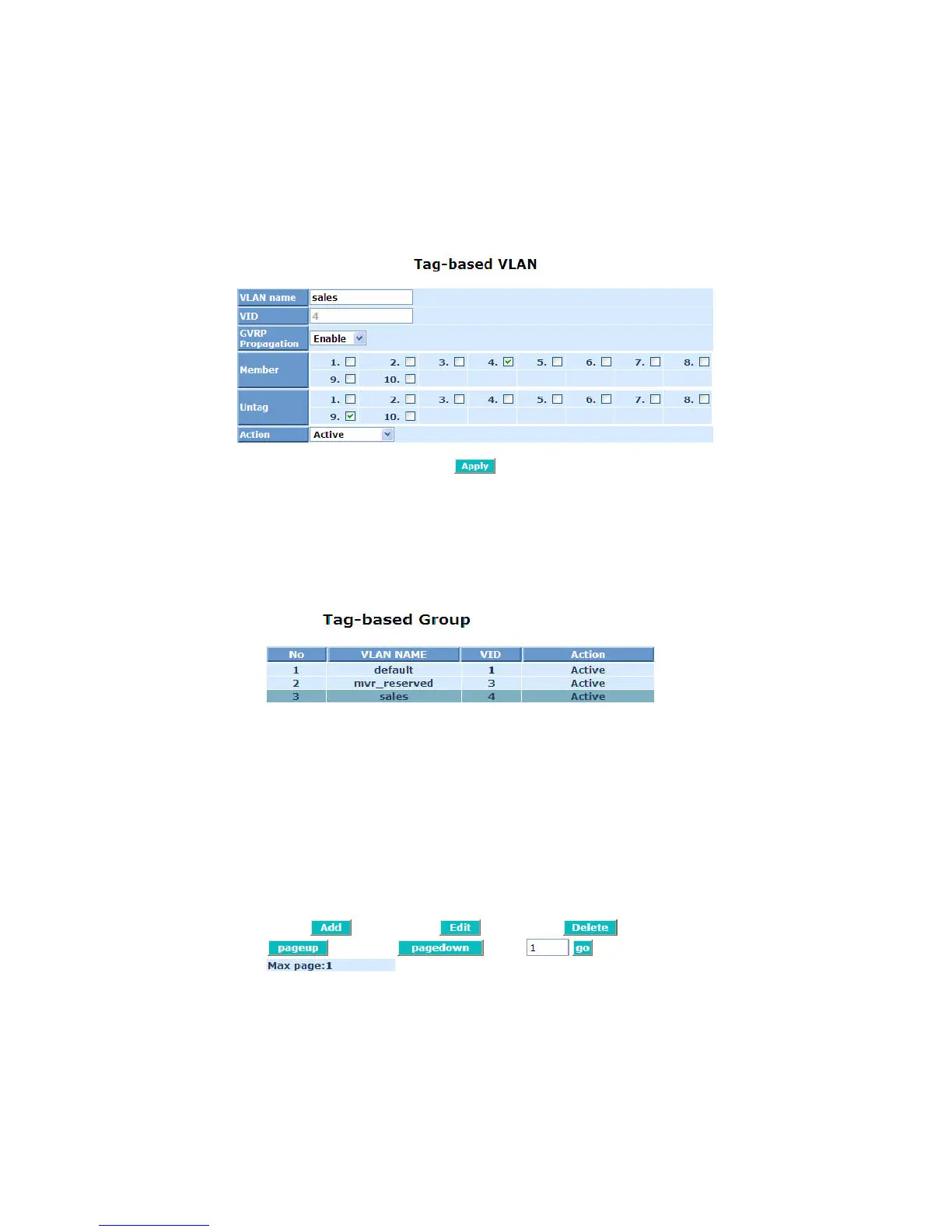

Fig. 3-31
Delete Group:
Just press the <Delete> button to remove the selected group entry from
the Tag-based group table.
Fig. 3-32
Edit a group:
Just select a group entry and press the <Edit> button, then you can
modify a group’s description, member and untag settings.
