VLT
Vertical Process Pump
55 V1.090418
8.3 REASSEMBLY
Observe the plant's safety precautions when lifting heavy components. Request
help when moving or positioning them.
8.3.1 VLT Pump Reassembly
1. Insert the impeller wear ring on the impeller from the hub side. If you pump’s size is 100,
200, 600, 650, 850 or 950, skip this step and begin with step 2.

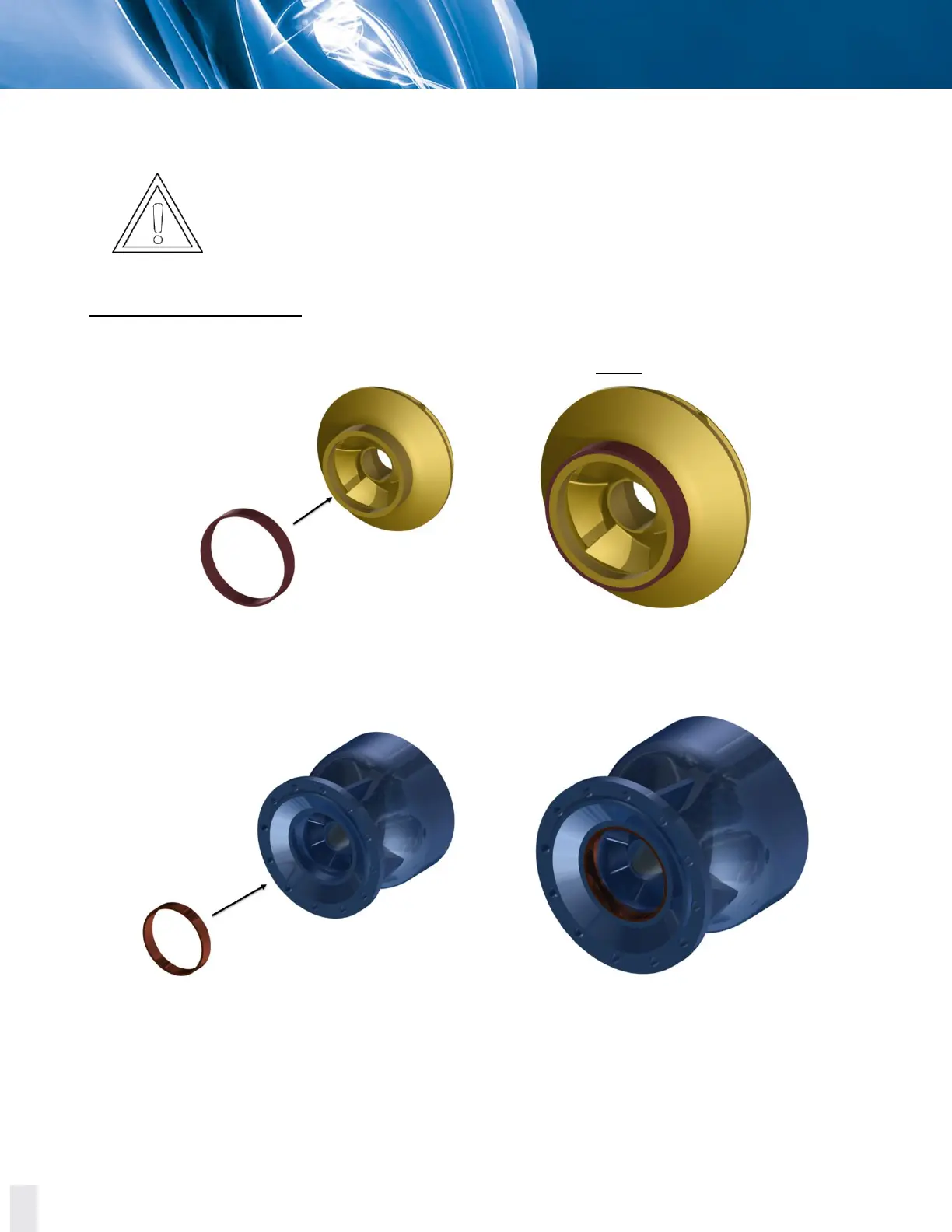

Figure 8.1 Inserting the impeller wear ring on the impeller.
2. Insert the bowl wear ring on the intermediate bowl.
Figure 8.2 Inserting the bowl wear ring on the intermediate bowl.
