Vertical Process Pump
56 V1.090418
3. Insert the impeller inside the intermediate bowl.

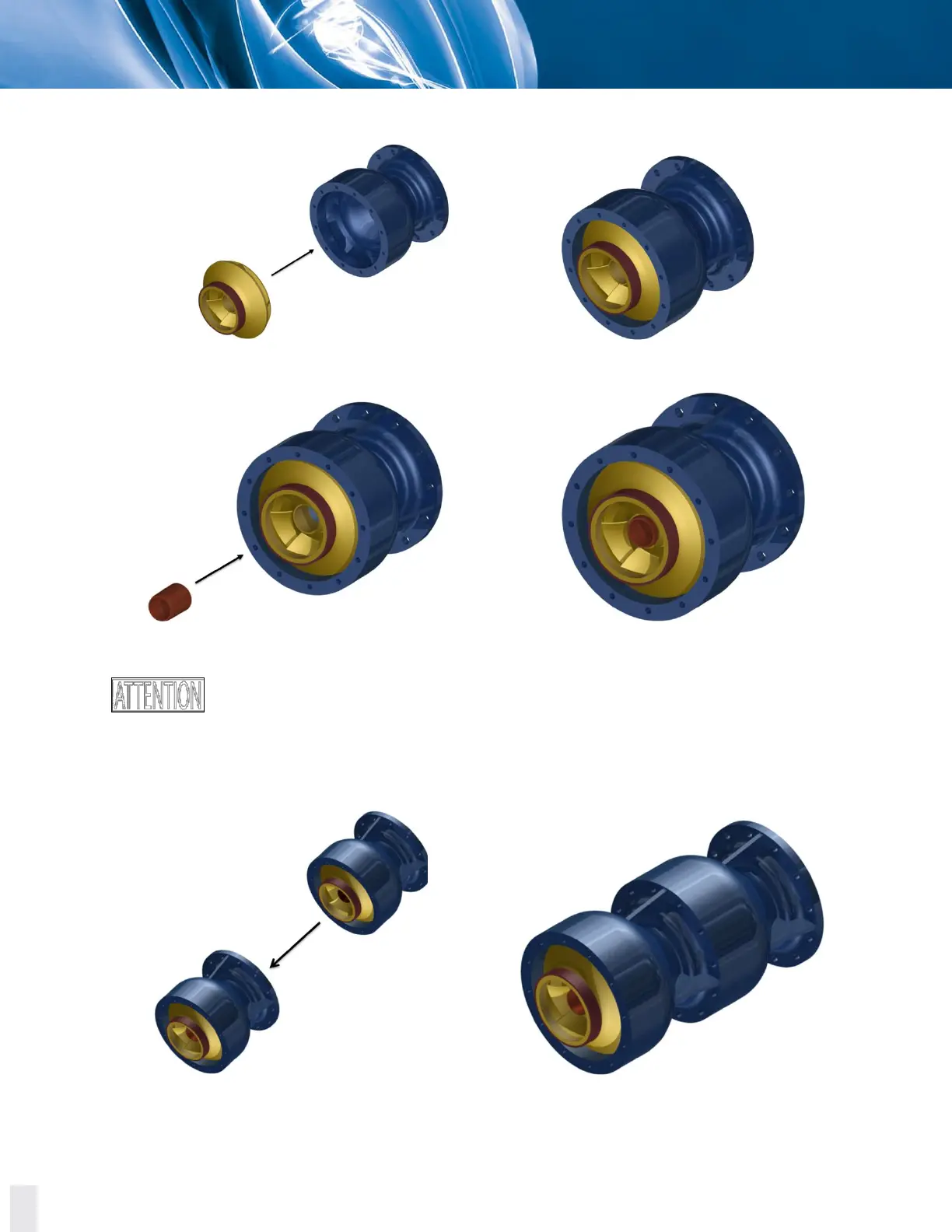

Figure 8.3 Inserting the impeller inside the intermediate bowl.
4. Insert the impeller bushing inside the impeller.
Figure 8.4 Inserting the impeller bushing inside the impeller.
If your pump is furnished with more than one intermediate bowl, repeat steps
1 thru 4 to assemble each one.
5. Place the second intermediate bowl on top of the first intermediate bowl.
Figure 8.5 Placing the second intermediate bowl on top of the first intermediate bowl.
