6. Place and tighten the hex bolts to secure the second intermediate bowl to the first
intermediate bowl.

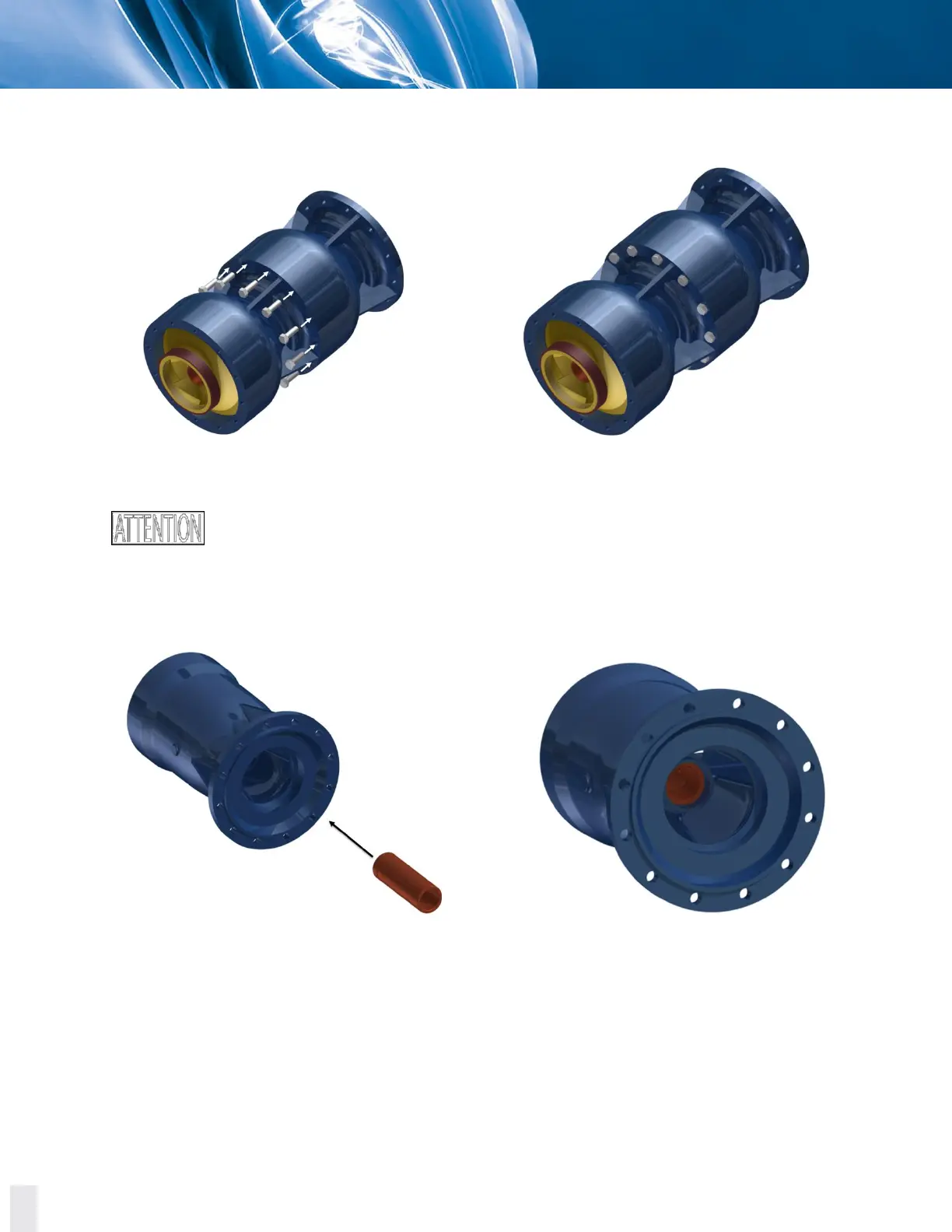

Figure 8.6 Placing and tightening the hex bolts to secure the second intermediate bowl to the first
intermediate bowl.
Repeat steps 6 and 7 to assemble all the intermediate bowls your pump is
equipped with. Once assembled, proceed to the next step.
7. Insert the suction bowl bushing inside the suction bowl.
Figure 8.7 Inserting the suction bowl bushing inside the suction bowl.
