Ruhrpumpen VLT - Page 58

VLT
Vertical Process Pump
58 V1.090418

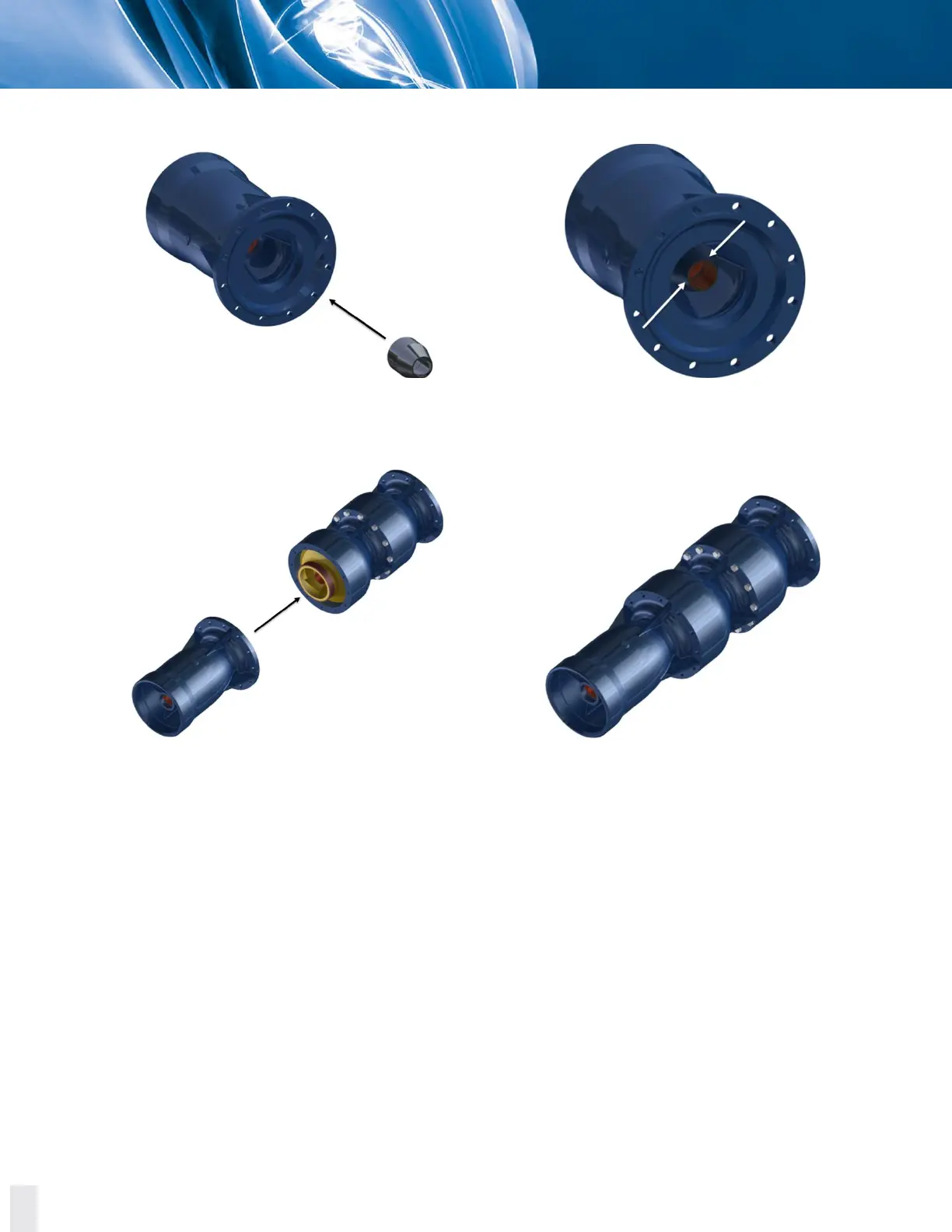

8. Insert the suction bowl sand collar inside the suction bowl.
Figure 8.8 Inserting the suction bowl sand collar inside the suction bowl.
9. Place the suction bowl assembly on the intermediate bowl assembly.
Figure 8.9 Placing the suction bowl assembly on the intermediate bowl assembly.
