10. Place and tighten the hex bolts to secure the suction bowl assembly to the intermediate
bowl assembly.

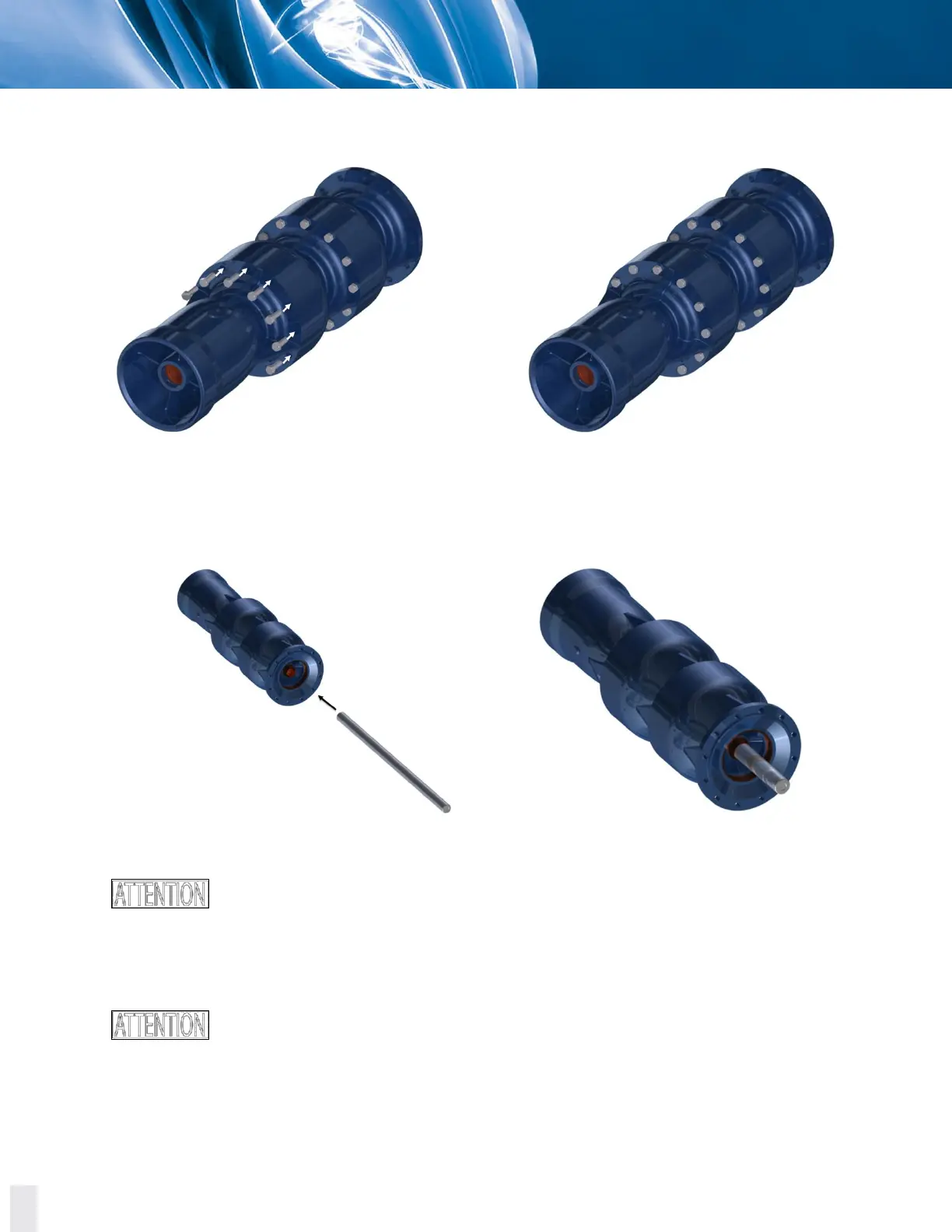

Figure 8.10 Placing and tightening the hex bolts to secure the suction bowl assembly to the intermediate bowl
assembly.
11. Insert the impeller shaft inside the intermediate bowl assembly and the suction bowl
assembly.
Figure 8.11 Inserting the impeller shaft inside the intermediate bowl assembly and the suction bowl assembly.
The impeller shaft must be inserted from the top to the bottom, first passing
through the intermediate bowl assembly and then through the suction bowl
assembly.
Beware that the impellers shaft does not bend during the insertion process.
Use a fixture to support the pump shaft if needed.
