Ruhrpumpen VLT - Page 60

VLT
Vertical Process Pump
60 V1.090418

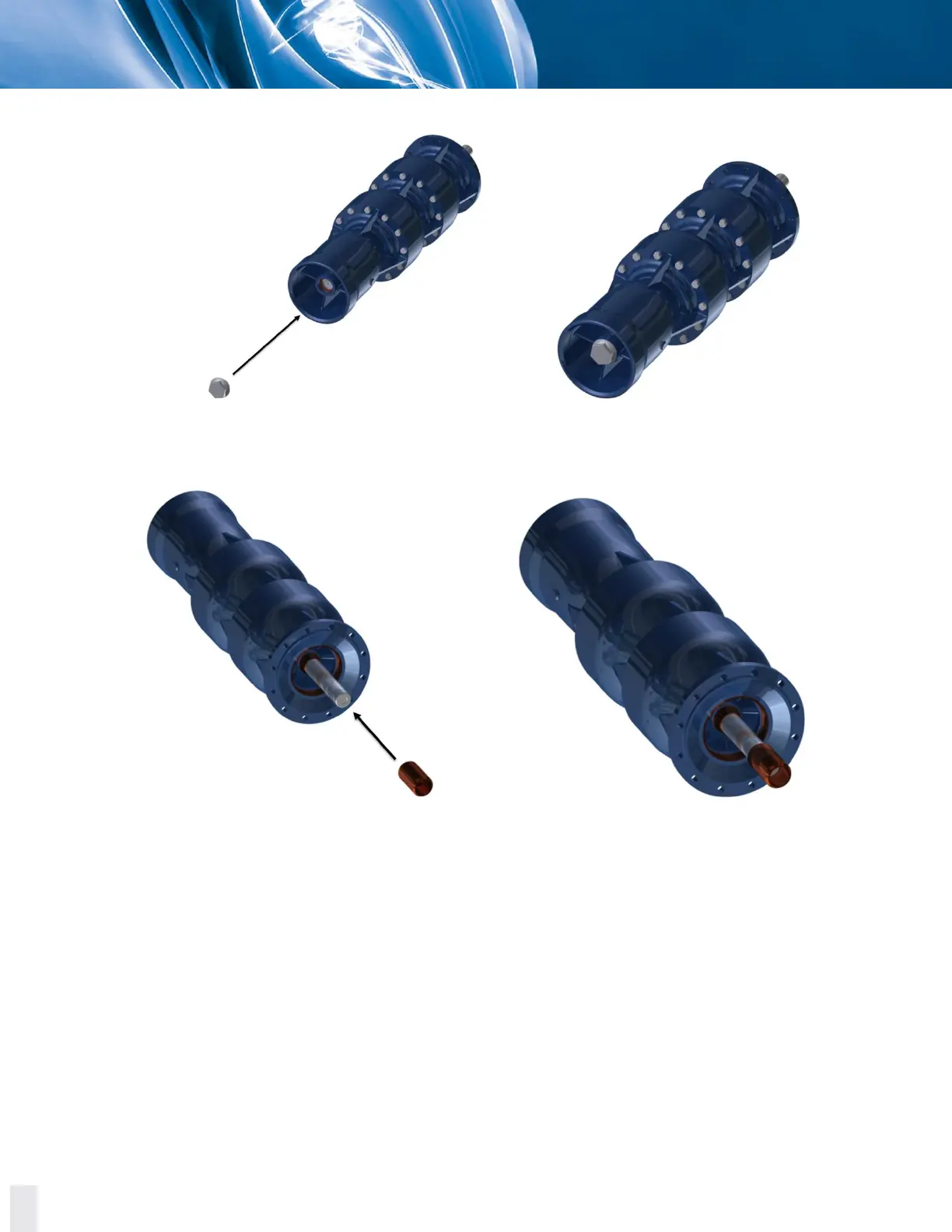

12. Place and tighten the suction bowl plug on the suction bowl.
Figure 8.12 Placing and tightening the suction bowl plug.
13. Insert the shaft bushing over the impeller shaft.
Figure 8.13 Inserting the shaft bushing over the impeller shaft.
