14. Place the column pipe on the last intermediate bowl (or the previous column pipe in case
your pump is equipped with more than one column pipe).

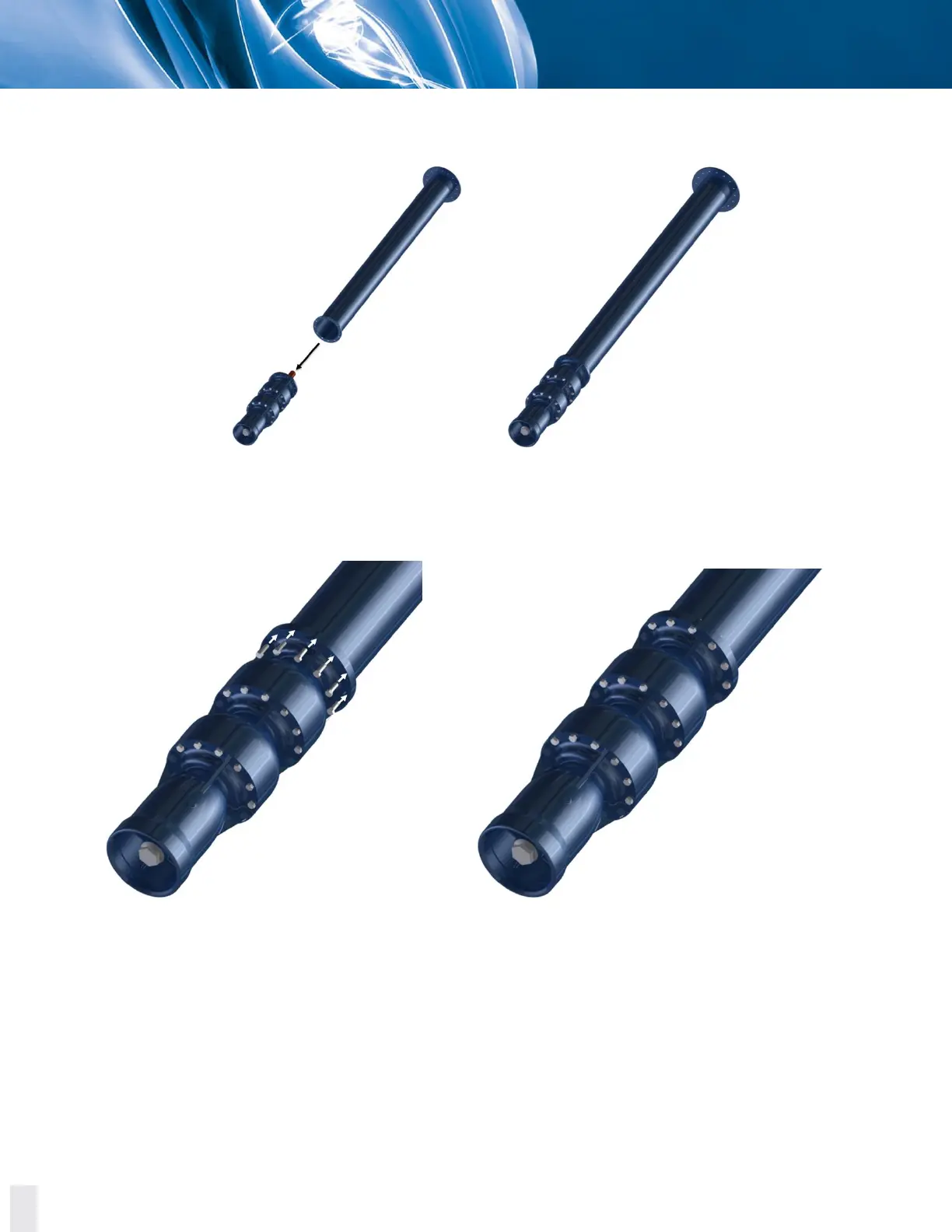

Figure 8.14 Placing the column pipe on the last intermediate bowl (or the previous column pipe).
15. Place the hex bolts that fix the column pipe to the intermediate bowl assembly (or to the
column pipe in case your pump is equipped with more than one column pipe).
Figure 8.15 Placing the hex bolts that fix the column pipe to the intermediate bowl assembly (or column pipe).
