16. Place and tighten the hex nuts to secure the column pipe to the intermediate bowl
assembly (or column pipe in case your pump is equipped with more than one column
pipe).

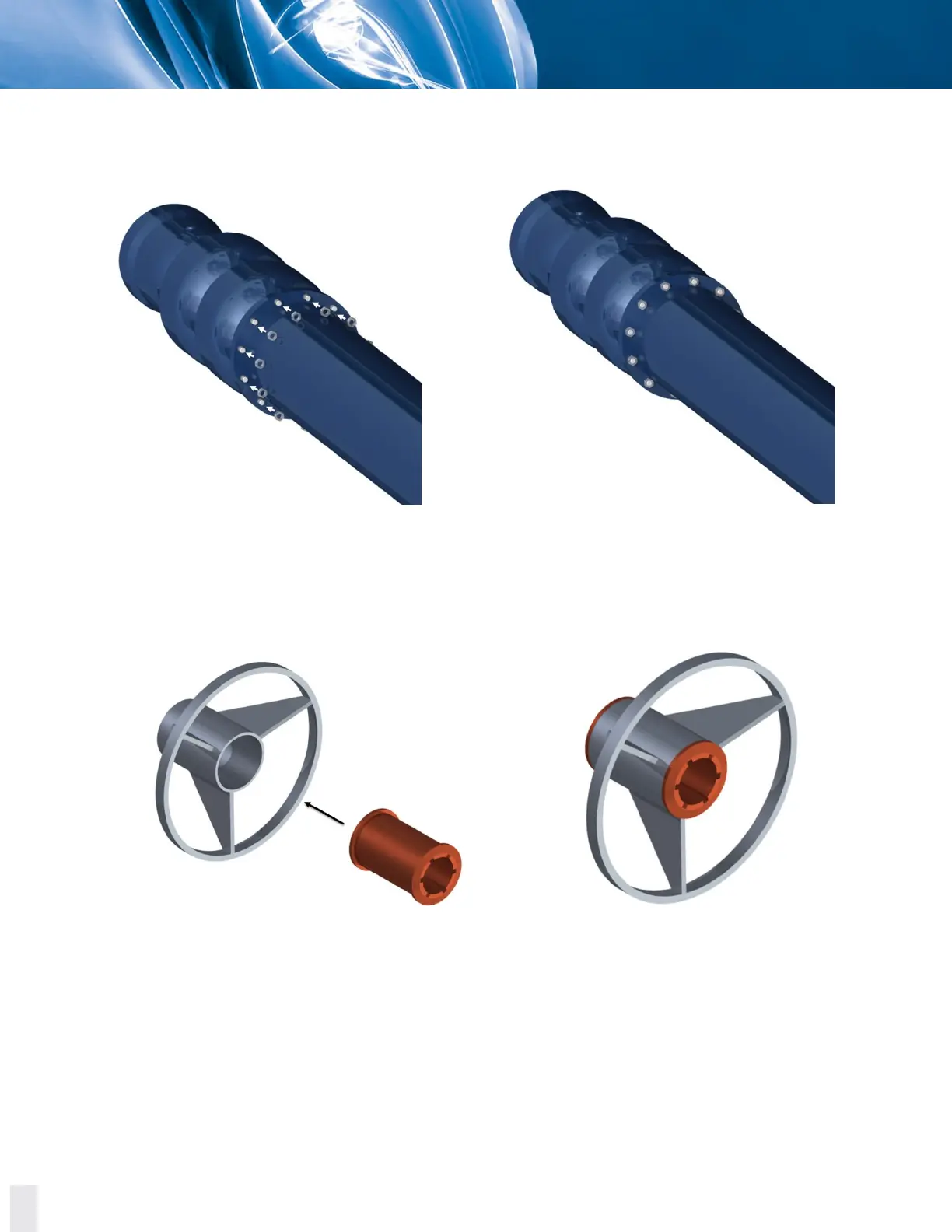

Figure 8.16 Placing and tightening the hex nuts to secure the column pipe to the intermediate bowl assembly
(or column pipe in case your pump is equipped with more than one column pipe).
17. Insert the column bushing inside the bushing carrier.
Figure 8.17 Inserting the column bushing inside the bushing carrier.
