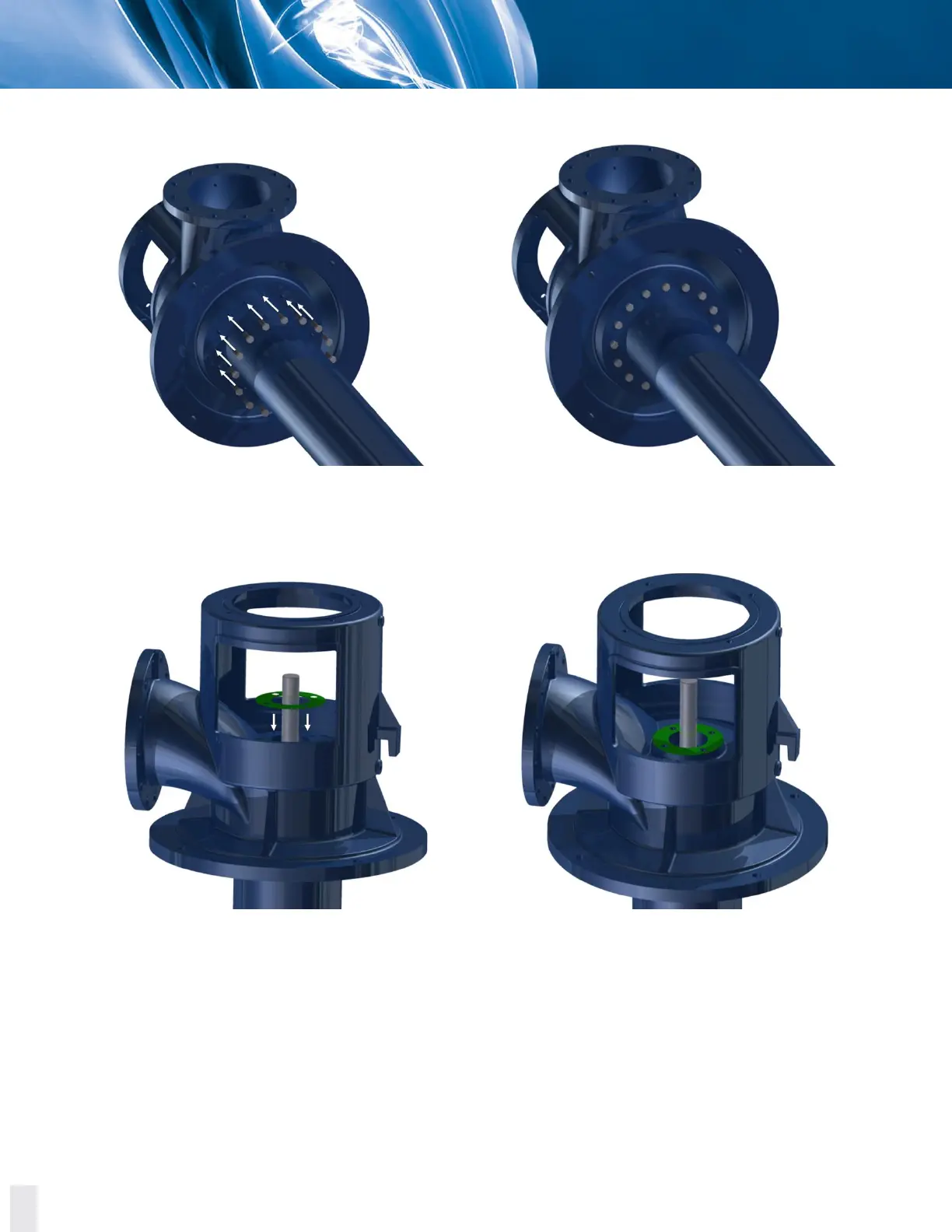

22. Place and tighten the hex bolts to secure the nozzle head to the last column pipe.
Figure 8.23 Placing and tightening the hex bolts to secure the nozzle head to the last column pipe.
23. Place a gasket on the shaft hole of the nozzle head.
Figure 8.24 Placing a gasket in the shaft hole of the nozzle head.
