20. Insert the shaft inside the bushing carrier assembly and column pipe.

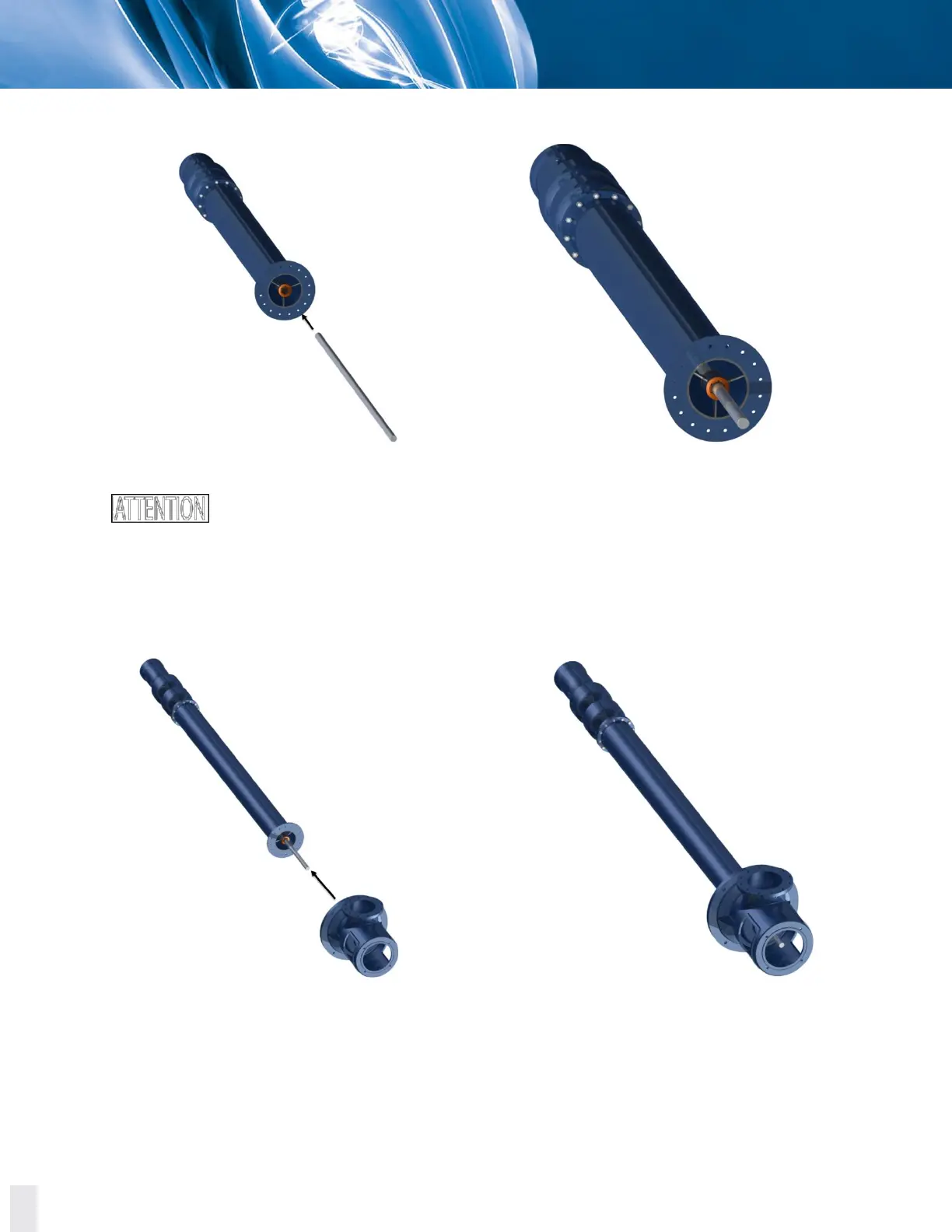

Figure 8.21 Inserting the shaft inside the bushing carrier assembly and column pipe.
If your pump is equipped with more than one column pipe, repeat steps 15
thru 22 to install all additional column pipes on top of the last column pipe
installed.
21. Place the nozzle head on the top of the last column pipe.
Figure 8.22 Placing the nozzle head on the top of the last column pipe.
