26. Place and tighten the hex bolts that secure the stuffing box to the nozzle head.

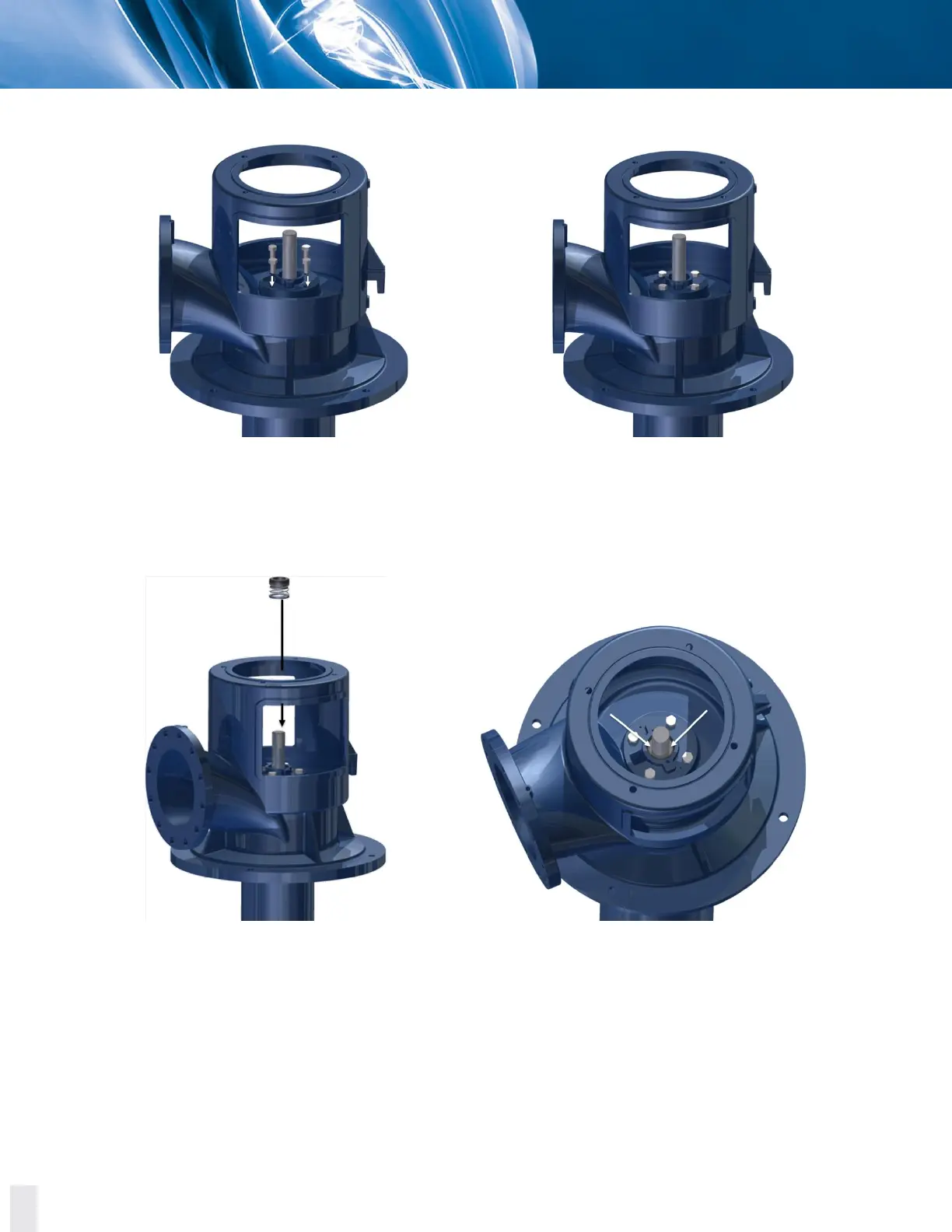

Figure 8.27 Placing and tightening the hex bolts to secure the stuffing box to the nozzle head.
27. To assemble the mechanical seal please follow the next steps:
a. Insert the mechanical seal inside the stuffing box.
Figure 8.28 Inserting the mechanical seal inside the stuffing box.
