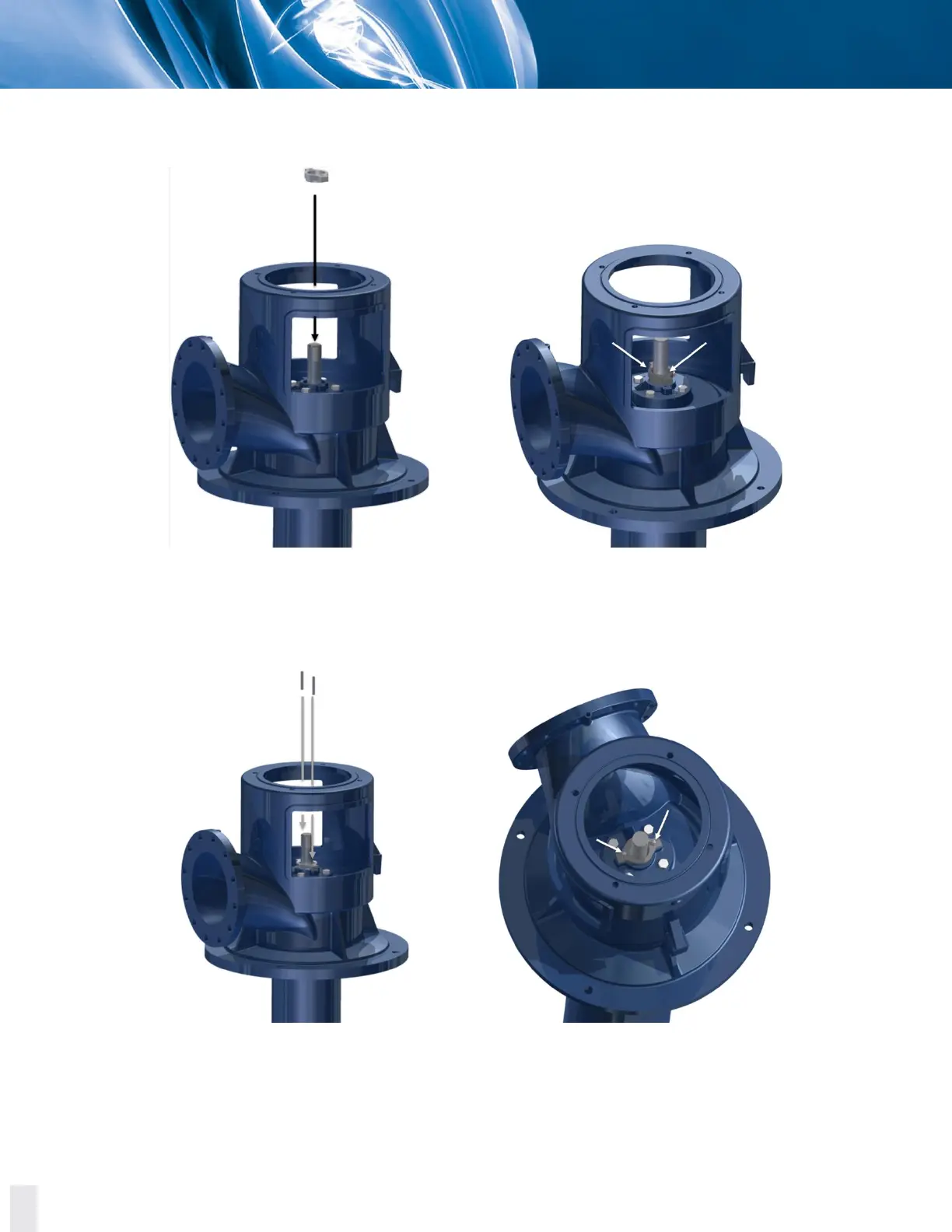

b. Insert the mechanical seal gland over the shaft inside the stuffing box until it reaches
the mechanical seal.
Figure 8.29 Inserting the mechanical seal gland inside the stuffing box.
c. Place the studs to hold the mechanical seal gland in its place in the nozzle head.
Figure 8.30 Placing the studs to hold the mechanical seal gland in its place in the nozzle head.
