d. Place and tighten the hex nuts on the studs to secure the mechanical seal gland to the
nozzle head.

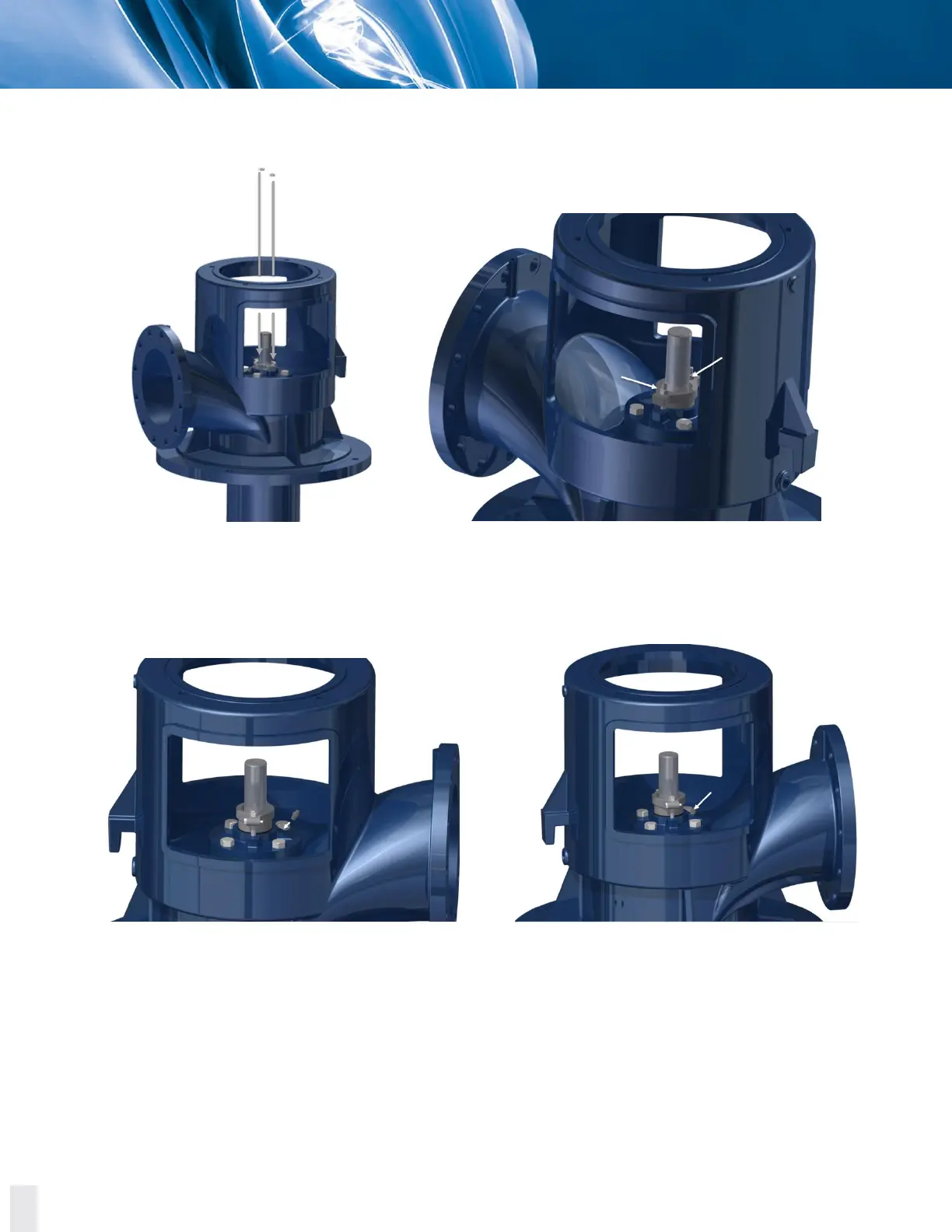

Figure 8.31 Placing and tightening the hex nuts to secure the mechanical seal gland to the nozzle head.
28. Place the grease fitting in its corresponding hole in the nozzle head.
Figure 8.32 Placing the grease fitting in its corresponding hole in the nozzle head.
