RD6006 calibration operation video: https://youtu.be/c9sn1wY2mjE

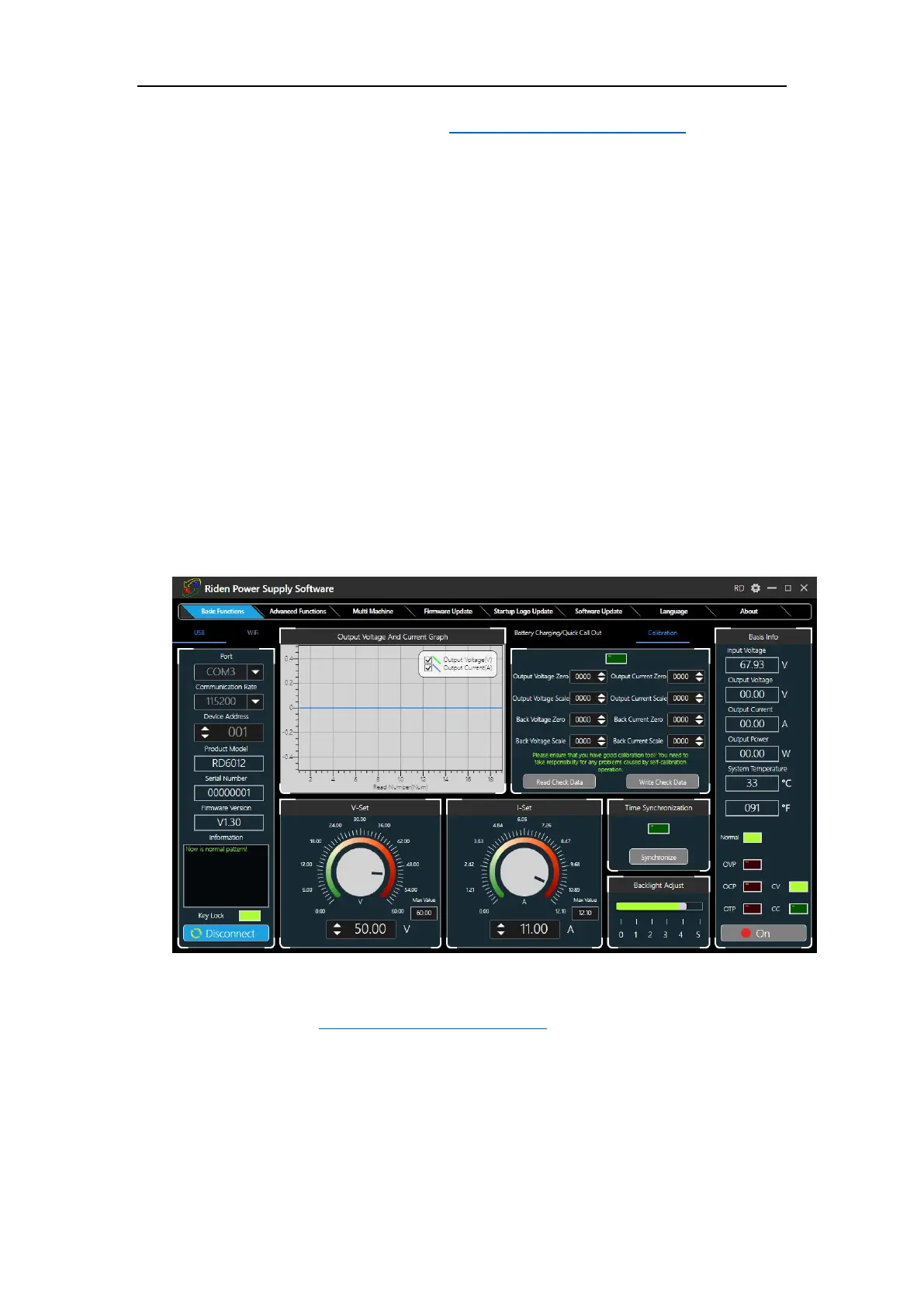

Click “Calibration” and enter the password “168168”, you can enter the
Calibration Fine Tuning page (if you enter the password, by default you have
accepted the above red letter agreement). It can read the calibration data after
connection; click the arrow to fine tuning the data. According to the linear function
y=kx+b, the constant b is equivalent to the zero value, the slope k is equivalent to the
proportional value, adjust this two values so that the data will be close to the real
test value.
Set the output voltage at 1V, adjust the output voltage zero point to make the
multimeter display close to 1V, and then set the output voltage at 30V, adjust the
output voltage proportional value to make the multimeter display close to 30V. In the
same way you can set 0.1A and 3A output current to calibrate the zero point and
proportional value of the output current.
Set the output voltage at 1V and calibrate the actual output voltage zero point to
make the actual output voltage displayed on RD6012 close to the value on
multimeter. You can set 30V and calibrate the proportional value of actual output
voltage. In the same way you can set 0.1A and 3A to calibrate the zero point and
proportional value of the actual output current. (This section does not provide
technical support. If you do not understand, please check the related information).
4.3.4 Logo Update
Boot logo setting video:https://youtu.be/vuVhBsohWts
Click “Start Logo Update”, a Logo upgrade prompt will pop up on the page,
please select a picture with a size of 320x240 and a resolution of 96dpi. Some logo
samples can be used in the installation package.
