Free Standing Installation
Fitting between existing cabinets
The height of the dishwasher, 845 mm, has
been designed in order to allow the machine
to be tted between existing cabinets of the
same height in modern tted kitchens� The
feet can be adjusted so that correct height is
reached�
The laminated top of the machine does not require any particular
care since it is heatproof, scratchproof and stain proof�
Underneath existing work top
(When tting beneath a work top)
In most modern tted kitchens there is
only one single work top under which
cabinets and electrical appliances are
tted� In this case remove the work top of
the dishwasher by unscrewing the screws
under the rear edge of the top (a)�
Attention
After removing the work top, the screws must be screwed again
under the rear edge of the top (b)�
The height will then be reduced to 815 mm, as scheduled by
the International Regulations (ISO) and the dishwasher will t
perfectly under the kitchen working top
Built-In Installation (for the integrated model)

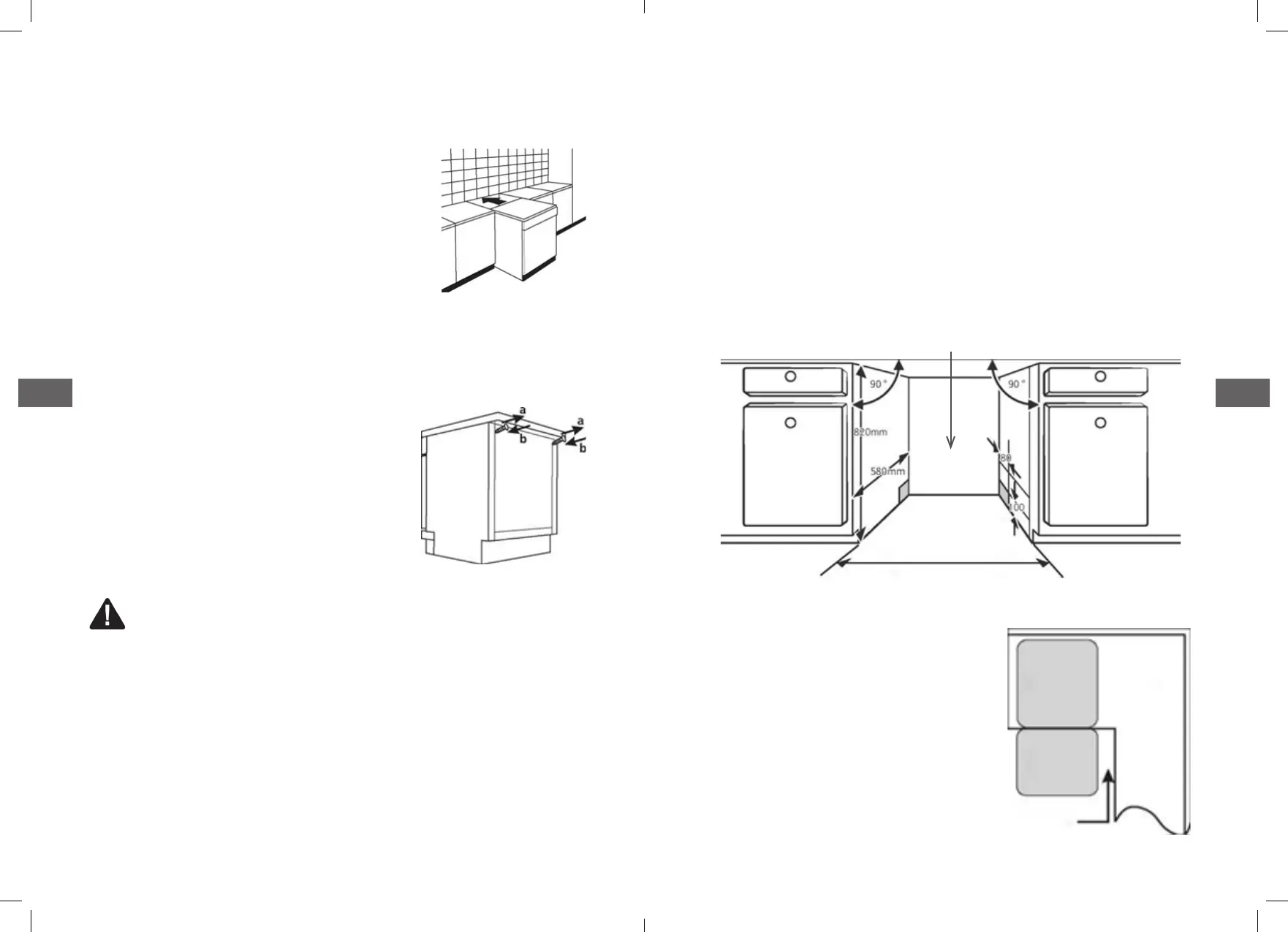

Step 1. Selecting the best location for the dishwasher
The installation position of dishwasher should be near the
existing inlet and drain hoses and power cord�
Illustrations of cabinet dimensions and installation position of
the dishwasher�
1� Less than 5 mm between the top of dishwasher and cabinet and
the outer door aligned to cabinet�
Electrical, drain and water supply line entrances
Space between cabinet
bottom and oor
600 mm(for 60cm model)
450 mm(for 45cm model)
2� If dishwasher is installed at the
corner of the cabinet, there should
be some space when the door is
opened�
Dishwasher Cabinet
Door of
dishwasher
Minimum space of 50mm
