NOTE:
Depending on where your electrical outlet is, you may need to cut
a hole in the opposite cabinet side�

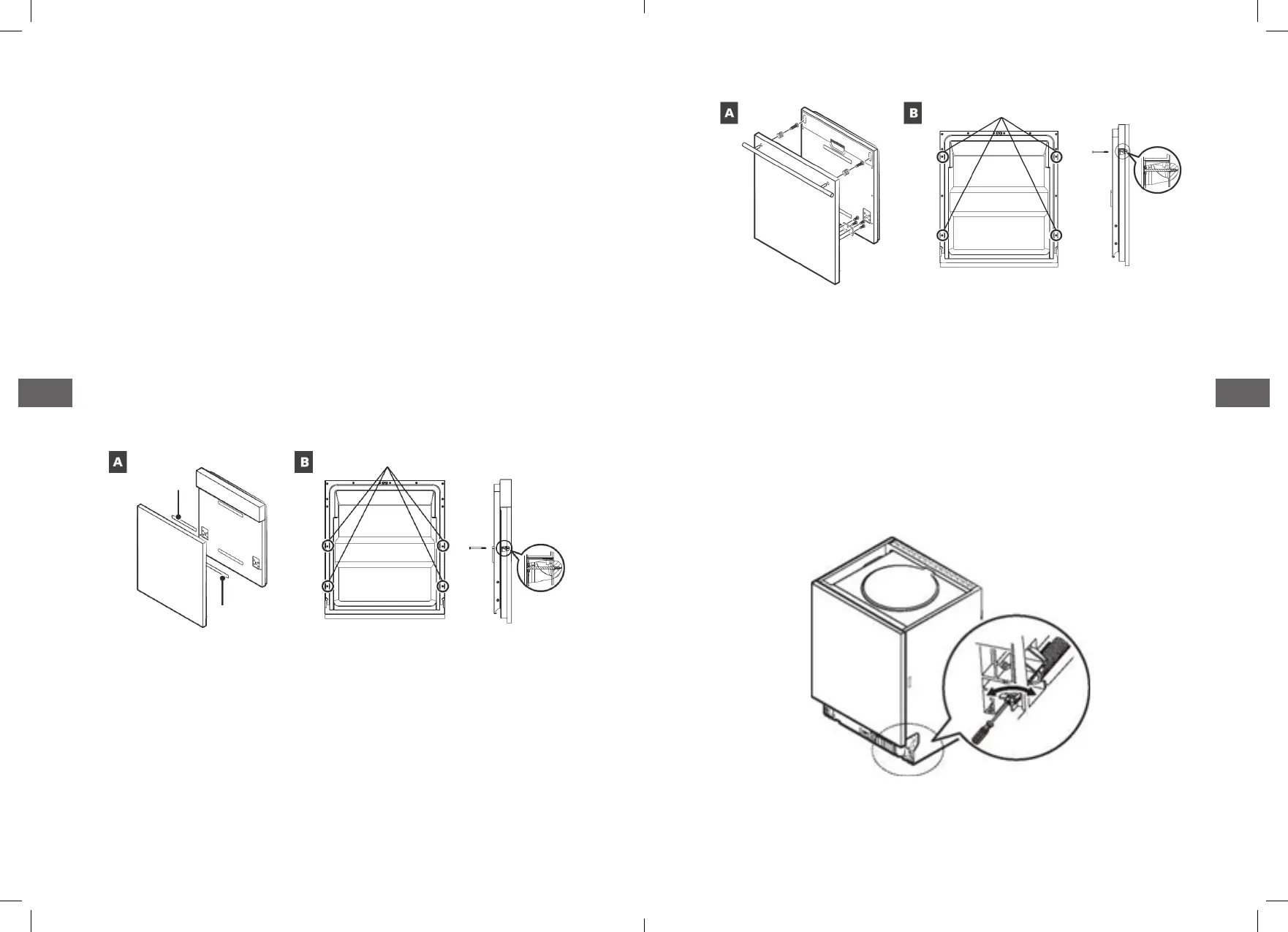

Step 2. Aesthetic panel’s dimensions and installation
The aesthetic wooden panel could be processed according
to the installation drawings.
Semi-integrated model
Magical paster A and magical paster B be disjoined on, magical
paster A on the aesthetic wooden panel and felted magical paster
B of the outer door of dishwasher (see gure A)� After positioning
of the panel, x the panel onto the outer door by screws and
bolts (See gure B)�
Magical paster
Magical paster
1� Take away the four short screws
2� Pin up the four long screws
Full-integrated model
Install the hook on the aesthetic wooden panel and put the hook
into the slot of the outer door of dishwasher (see gure A)� After
positioning of the panel, x the panel onto the outer door by
screws and bolts (See gure B)�
1� Take away the four short screws
2� Pin up the four long screws
Step 3. Tension adjustment of the door spring
1� The door springs are set at the factory to the proper tension for
the outer door� If aesthetic wooden panel are installed, you will
have to adjust the door spring tension� Rotate the adjusting
screw to drive the adjustor to strain or relax the steel cable�
2� Door spring tension is correct when the door remains horizontal
in the fully opened position, yet rises to a close with the slight
lift of a nger�
