LRF 3013 Integrator Manual
Document number: TML 913655 ver A
Public: 13.03.2017
Confidential & Proprietary  Safran Vectronix AG – All rights reserved
page: 33/36
9 Appendix
9.1 System Connector

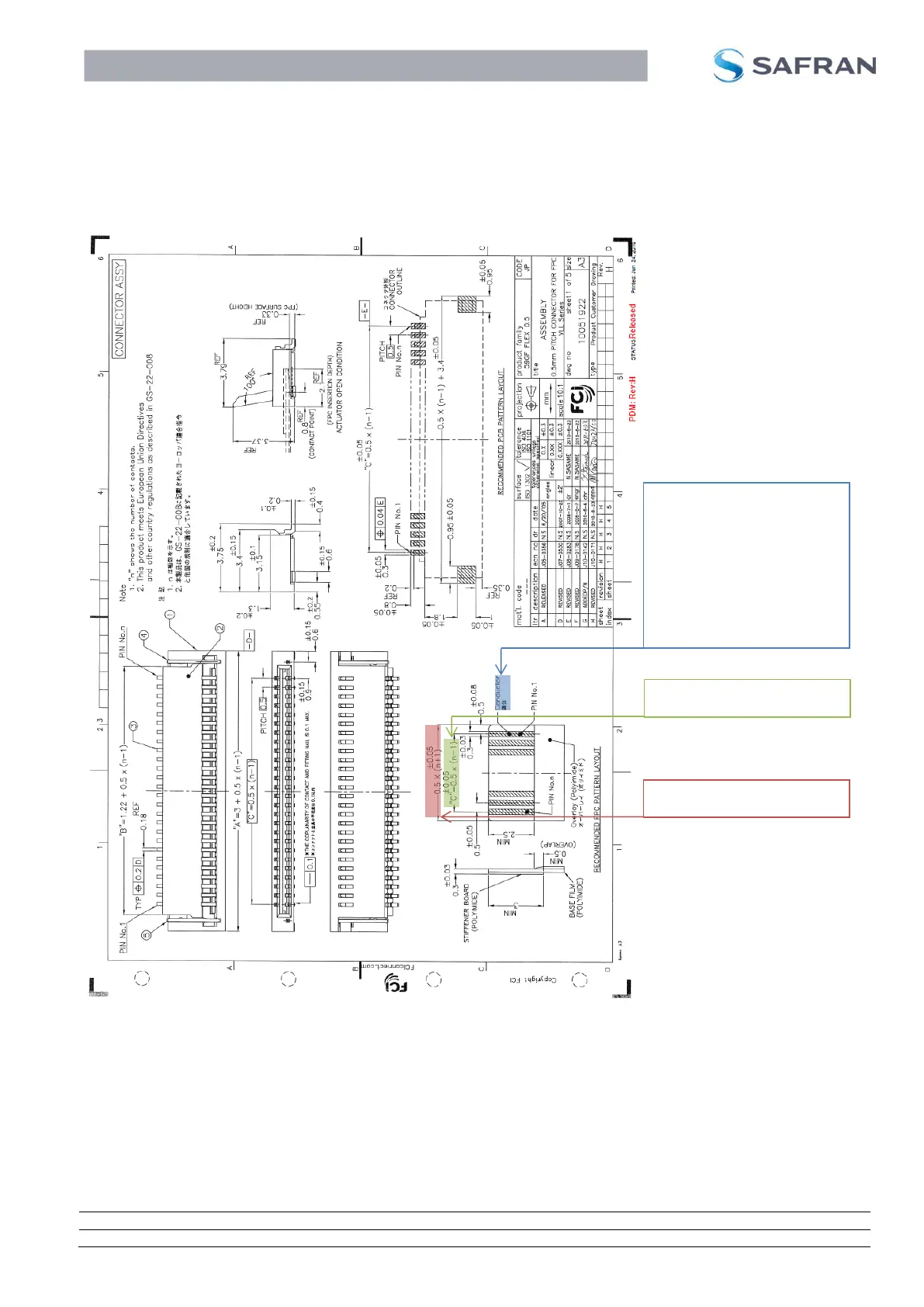

Following drawing indicates the design requirements for the flex cable which needs to be attached to the
system connector of the LRF module.
Conductor:
- Copper thickness 18
mm
- Gold plating (chemical)
0.05 to 0.1 µm
- Nickel underplating
(chemical) 2 to 3 µm
0.5x (10+1) = 5.5
±0.05
0.5x (10-1) = 4.5
±0.05
