LRF 7047- Integrator Manual
914929_TML_LRF7047_en_Version B
Confidential & Proprietary Safran Vectronix AG – All rights reserved
3.2 First steps with the LRF 7047
We recommend using an Interface Kit (Article Number 914752) to run a LRF 7047 with a PC. In this kit a
USB-power supply cable and an interface cable with a Samtec Connector are included. These two cables
have to be joined together via the blue Dubox connectors. The Samtec connector has to be plugged into
the Samtec System connector of the LRF. The USB connector is connected to a USB port of the PC. To
run the LRF 7047, power (8-42 V) has to be provided via the red (+ pole) and black (- pole) pin plugs. The
pointer interlock switch is protected by the red cap. To arm the pointer lift the red protective cover and
flick switch on (see figure 10 and figure 11).

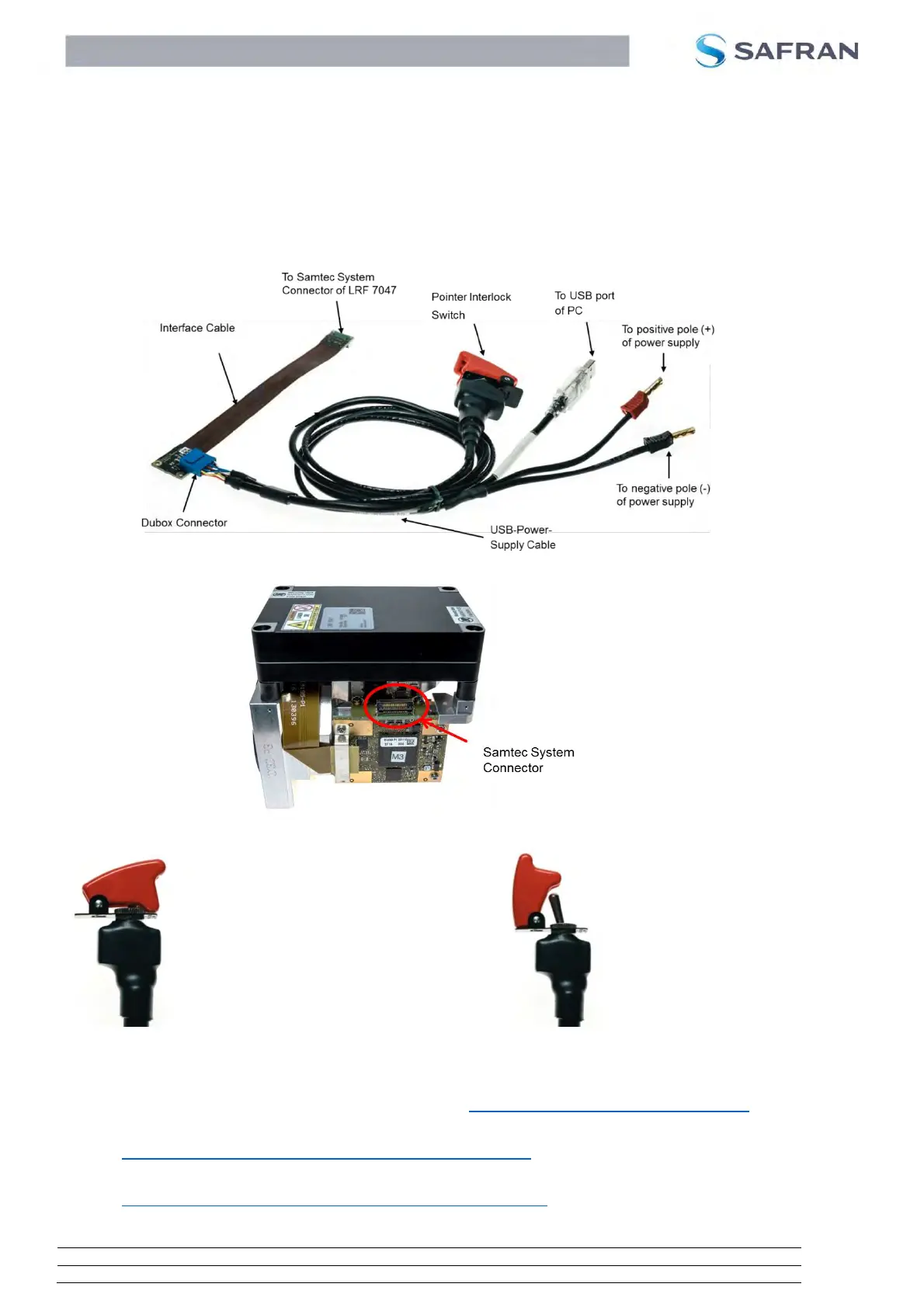

Figure 8: USB to LRF Interface cable for use of LRF 7047 with a PC
Figure 9: Location of Samtec System Connector
Figure 10: Pointer interlock open: Figure 11: Pointer Interlock closed: Non-eyesafe
Non-eyesafe Pointer cannot be used pointer can be activated with Software command
The USB Driver for the used FTDI USB to Serial Converter used by the interface cable can be
selected and downloaded under the following link: http://www.ftdichip.com/Drivers/VCP.htm
For Windows 7 and new systems, please download and install this driver:
http://www.ftdichip.com/Drivers/CDM/CDM21218_Setup.zip
An installation guide for the driver can be found here:
http://www.ftdichip.com/Support/Documents/InstallGuides.htm
