LRF 7047- Integrator Manual
914929_TML_LRF7047_en_Version B
Confidential & Proprietary Safran Vectronix AG – All rights reserved
5 HW Interface
5.1 System Connector
Power supply and communication between the LRF module and the host system is performed via the
system connector. The system connector is of the following type:
LSHM-120-01-L-DH-A-S-K-TR
Samtec LSHM connector series are not gender specific and so one can mate the same type of
connectors. Depending on the mating combination, the pin mapping varies. Details on the system
connector and its counterpart can be found in chapter 9.1 System connector reference design.

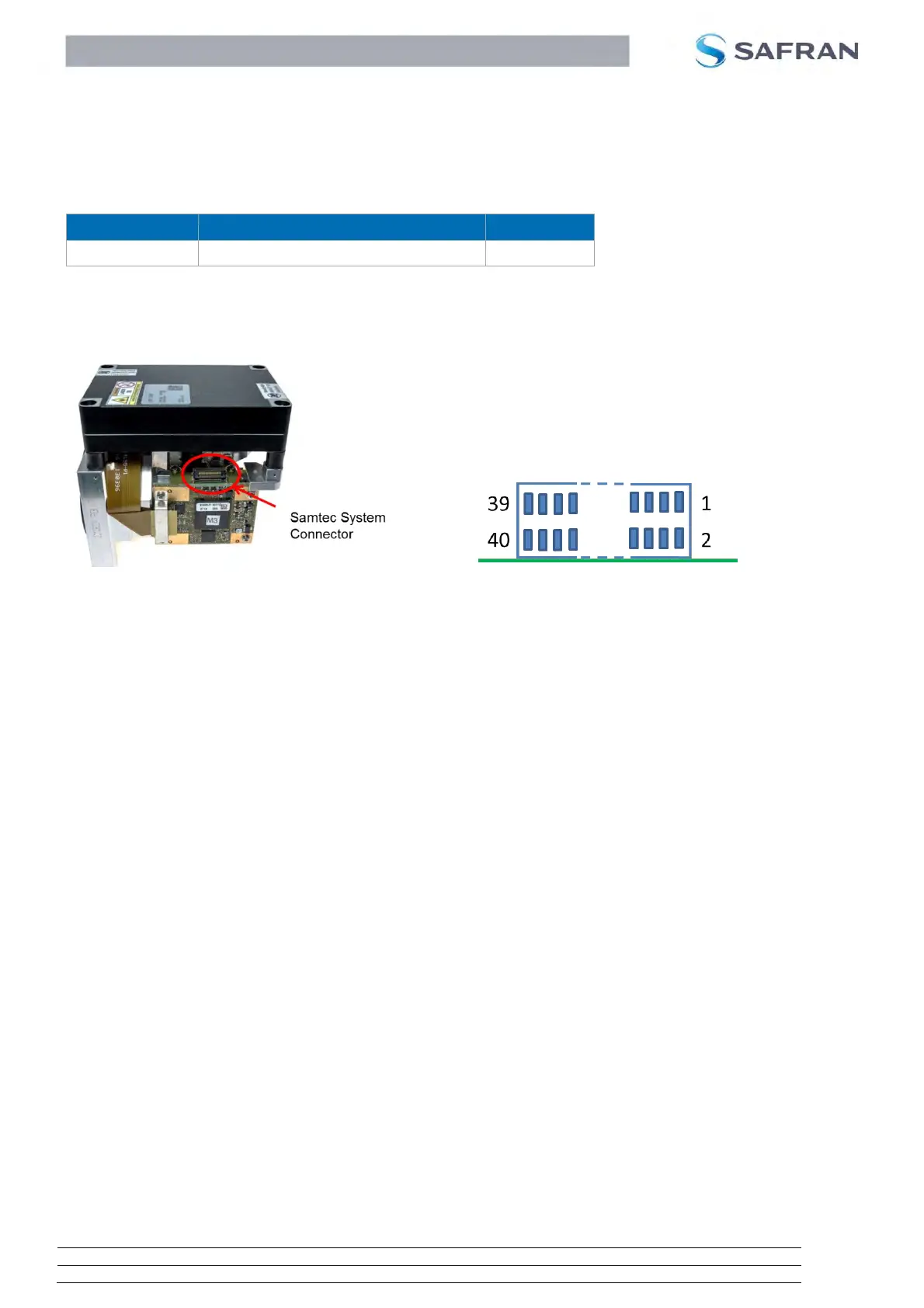

Figure 20: Position of Samtec System connector Figure 21: Location of Pin # 1, 2, 39, 40
