3 Getting Started
This chapter will help you with the first steps with an LRF module.
3.1 Unpacking
Open the packaging and carefully pull the module out of the foam packaging without damaging the optical
fibre. Check cleanliness of the module and carefully remove any particles.
WARNING
Be careful with the fiber: The optical fiber of the LRF module is very sensitive to harsh bending,
especially in proximity to the pigtail. The minimum bending radius of the fiber is 5 mm.

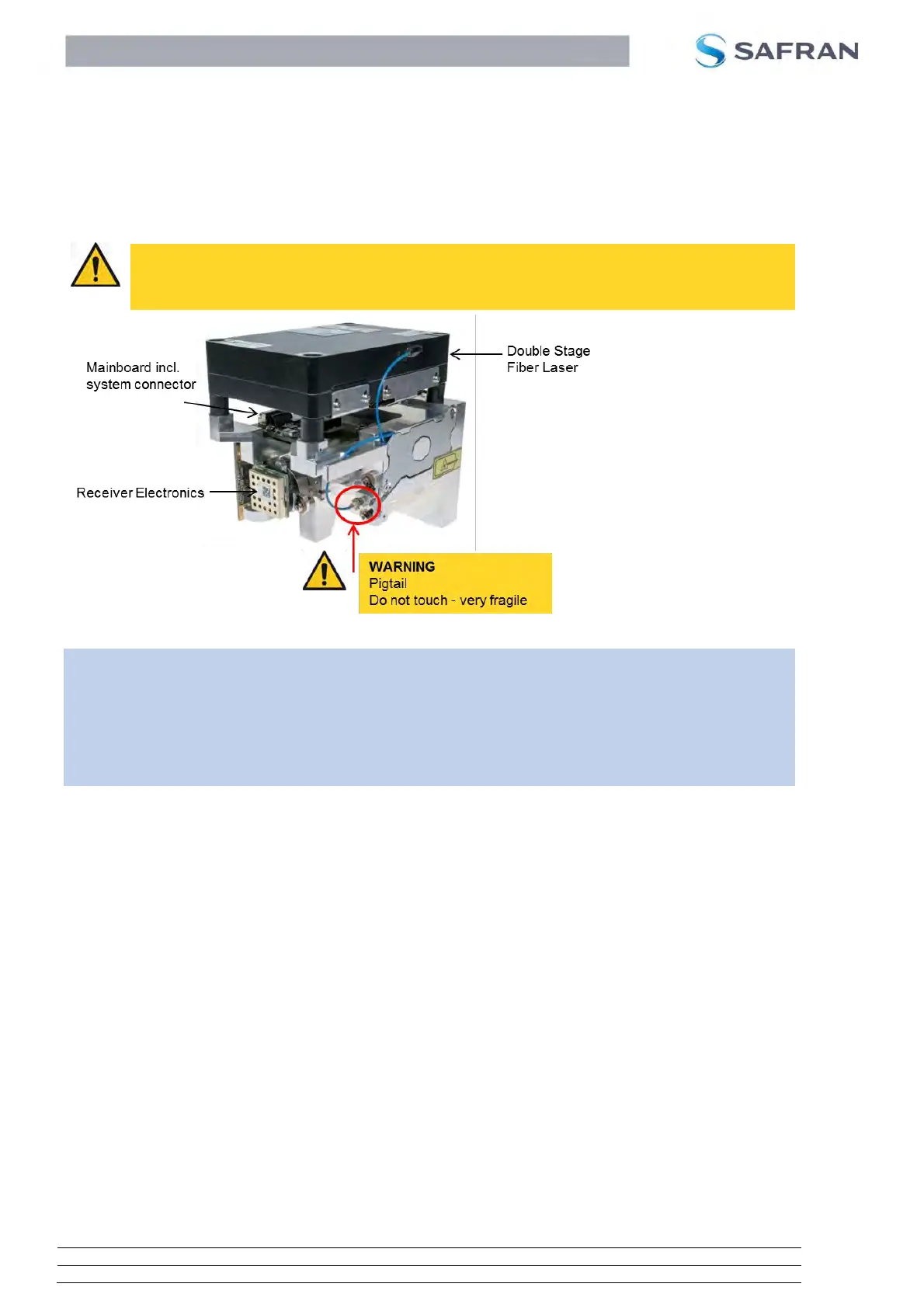

Figure 7: Pigtail of LRF 7047
NOTICE
Be careful with ESD:
The LRF module is sensitive to electrostatic discharge. Do not touch any electronics or components
unless protective measures are applied.
The packaging consists of a cardboard box and PE-LD-E-X packaging foam. Dispose it according to your
local regulations.
